What is a John Morris Coupling?

In industrial and public safety sectors, couplings are essential mechanical components used to connect two shafts and transmit power. However, in specific applications such as firefighting and emergency response, John Morris Coupling specifically refers to a quick-connect coupling for fire hoses, renowned for its reliability, rapid connection, and compliance with British Standard (BS 336).

John Morris Couplings and Their Core Functions

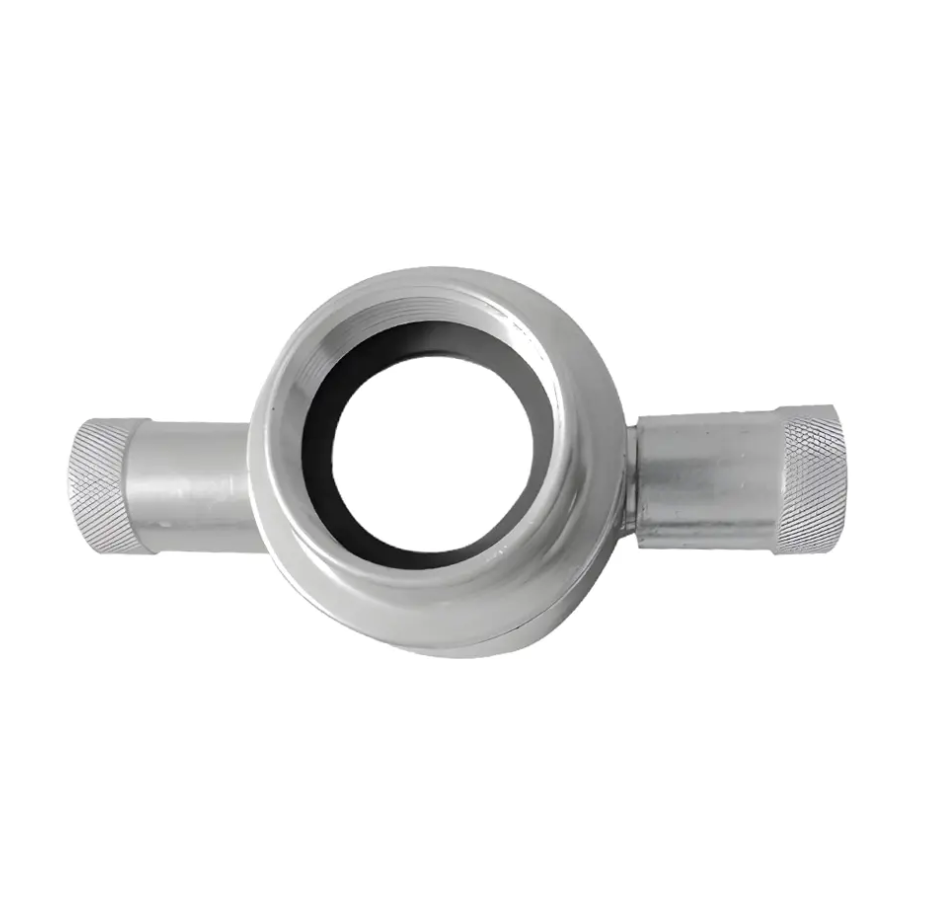

John Morris couplings are rigid interlocking end fittings specifically designed for fire hoses. They are not flexible or rigid couplings used for mechanical transmissions (such as those used on pump or motor shafts), but rather serve as an instantaneous coupling, allowing firefighters to quickly and safely connect hoses to fire hydrants, fire truck pumps, or other hose equipment (such as nozzles, distributors, etc.).

Key Features and Benefits:

• Quick Connect/Disconnect: Utilizes a unique twist-lock mechanism or spring-loaded arm design (especially on female couplings), allowing for rapid connection and disconnection of hoses without additional tools—crucial in time-sensitive firefighting operations.


• Reliability and Sealing: Ensures a secure connection, preventing leaks under high pressure and guaranteeing effective delivery of extinguishing agents.


• Standard Compatibility: Typically designed to comply with BS 336 British Standard, widely used in marine supply, industrial, and firefighting systems worldwide.


• Materials: Common materials include brass, bronze (e.g., BS1400 LG2/LG4), or aluminum alloy (e.g., LM25), offering excellent corrosion resistance and durability.


• Application Sizes: Common sizes include 1.5 inches, 2 inches, and 2.5 inches to accommodate various fire hose specifications.



The Broad Concept and Types of Couplings

In a broader mechanical engineering context, the term "coupling" refers to an assembly used to connect a drive shaft and a driven shaft to transmit torque. For example:

• Flexible Couplings: Such as John Crane's A-series or H-series, they use flexible elements (such as polyurethane inserts) or diaphragms to allow axial, radial, and angular misalignment and provide vibration damping. They are suitable for pumps, compressors, and turbomachinery.


• Rigid Couplings: Such as sleeve couplings, they require strict alignment of the two shafts and are mainly used in high-torque or high-precision applications.



However, note that when referring to "John Morris couplings," it almost always refers to fire hose couplings in the fire protection field, not traditional mechanical power couplings.

John Morris couplings are an indispensable component in fire safety, combining quick and reliable connection technology with the British BS 336 standard. These quick couplings ensure that fire hoses can be quickly deployed and used in the most critical moments, greatly improving the efficiency and safety of emergency response.
