Grooved Fire Elbow-Storz
Home / Product / Other Apparatus / Grooved Fire Elbow / Grooved Fire Elbow-Storz

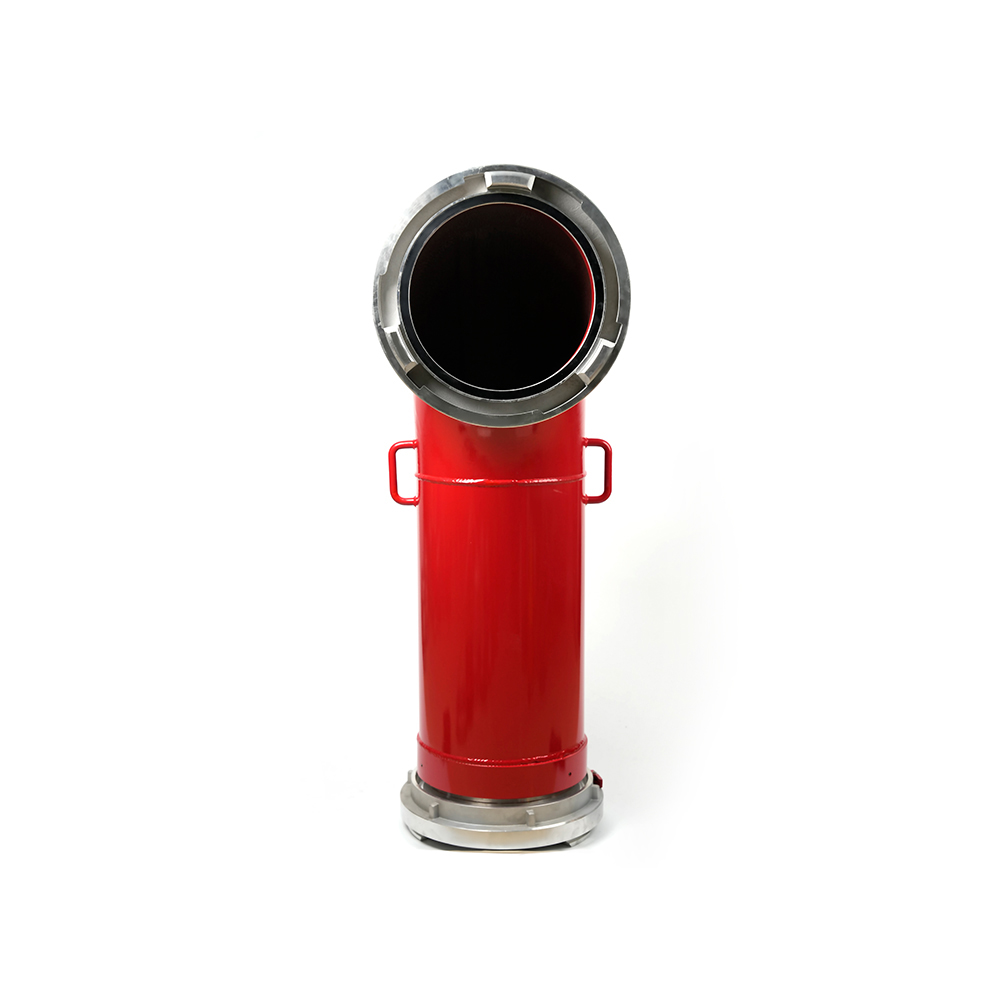

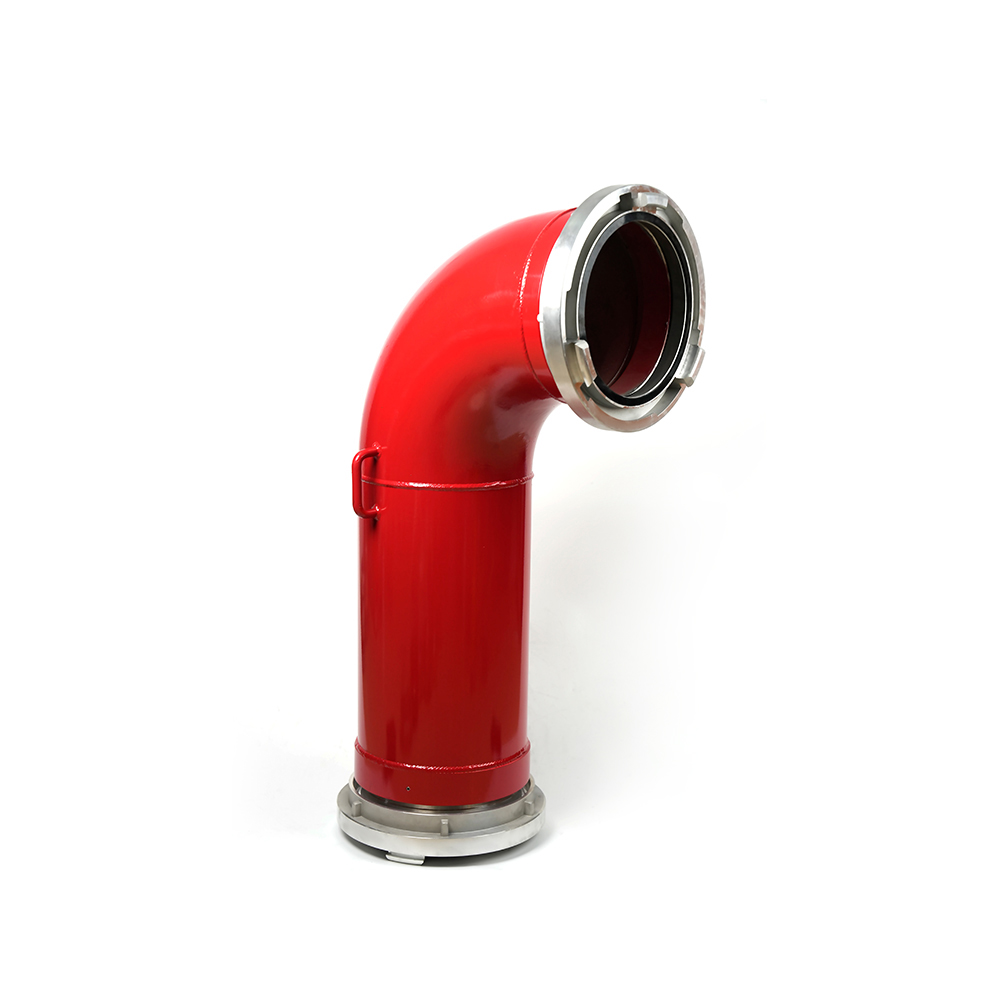

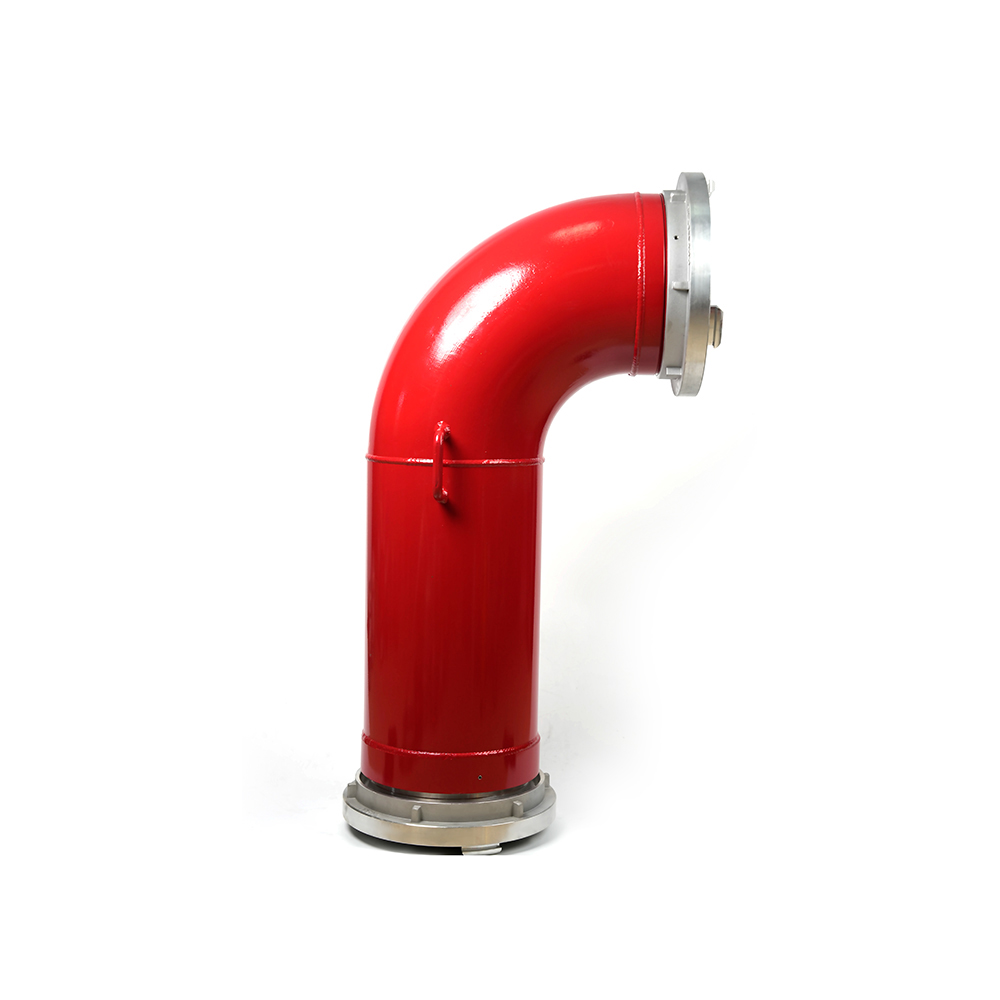

Grooved Fire Elbow-Storz

Grooved fire elbow is a pipe fitting installed at pipeline turns, featuring an external grooved structure that allows for connection using grooved couplings. It is suitable for quick assembly and disassembly in piping systems.
This fitting is commonly used in fire sprinkler systems, fire hydrant water supply networks, industrial and commercial building fire main lines, and high-rise building fire water systems for directional changes in piping.
Customized options are available for different interface standards as well as various angles and diameters upon request.

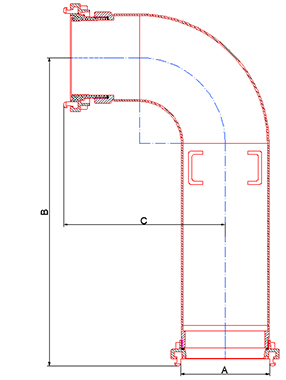

Dimensions Resources

ITEM NO.

DIN/mm

DIA

A/mm

B/mm

C/mm

/

300

12"

316

1100

580

300

12"

316

1050

575

300

12"

316

865

685

300

12"

316

580

445

* Materials and manufacturing processes can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
