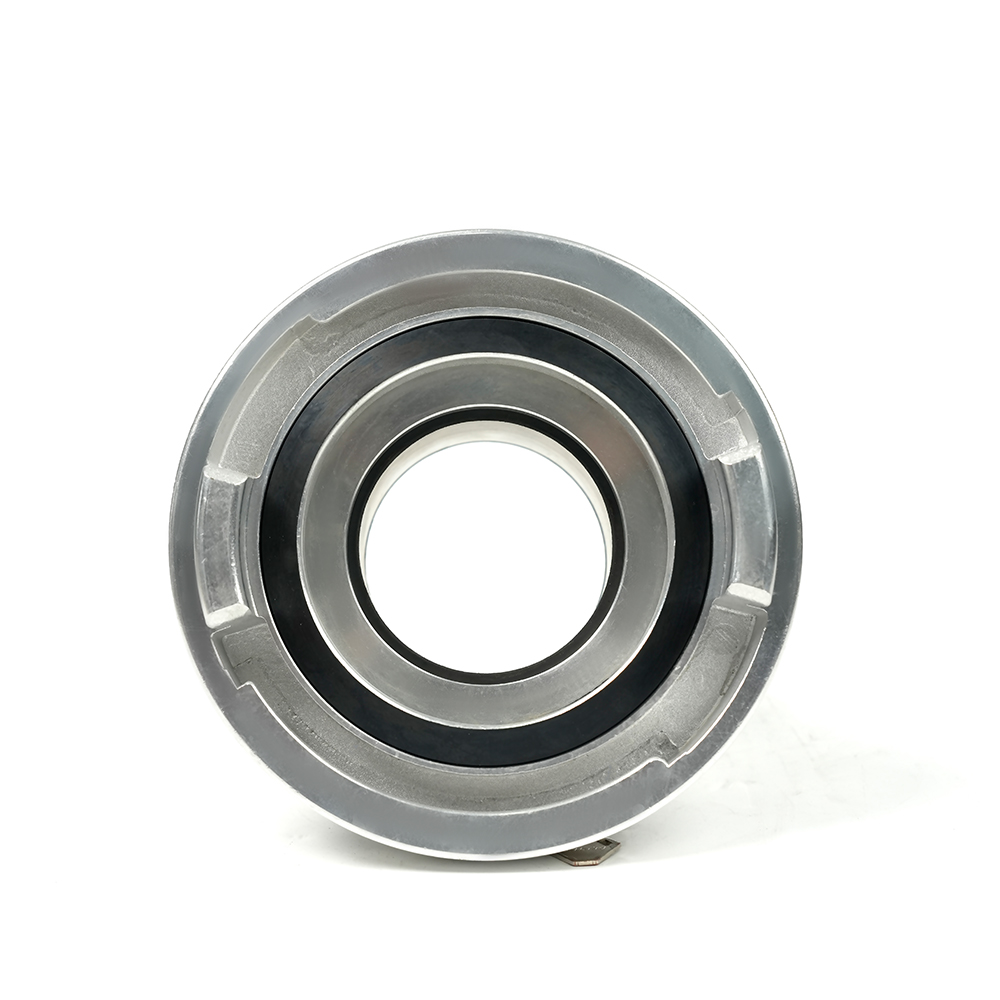

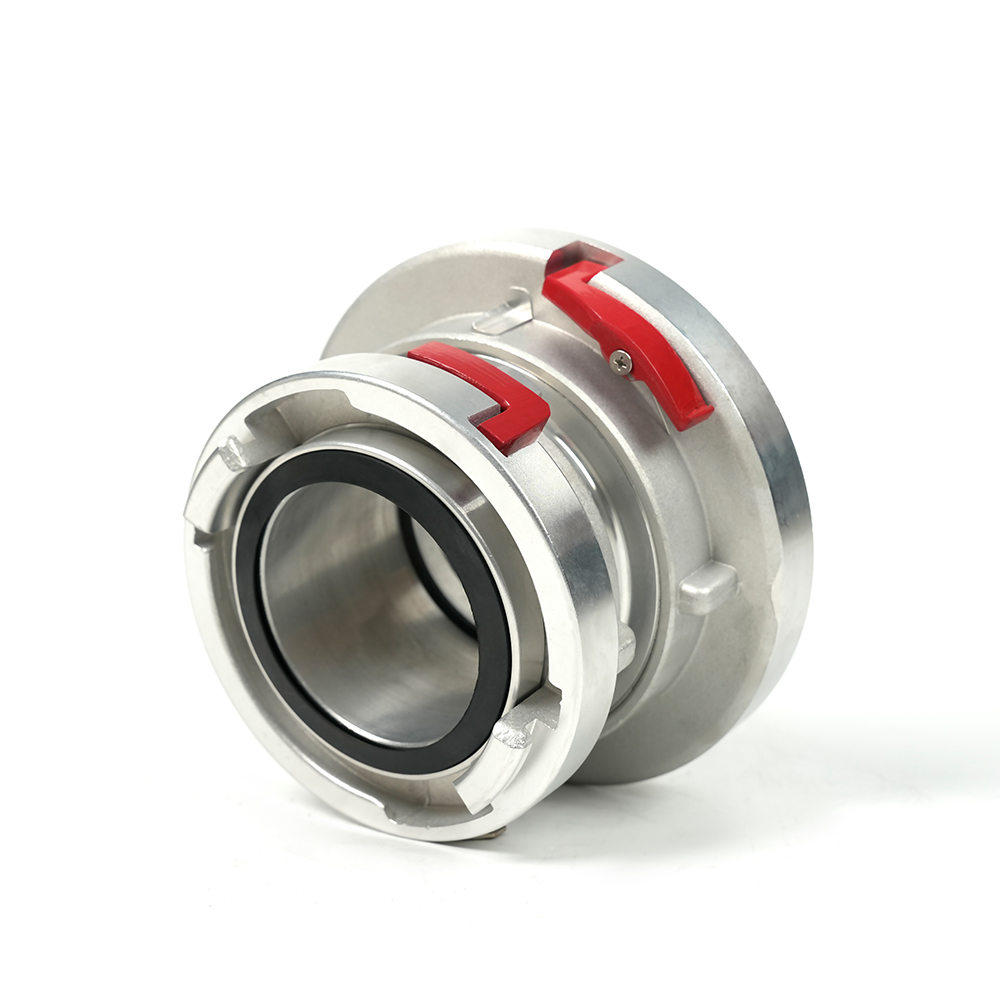

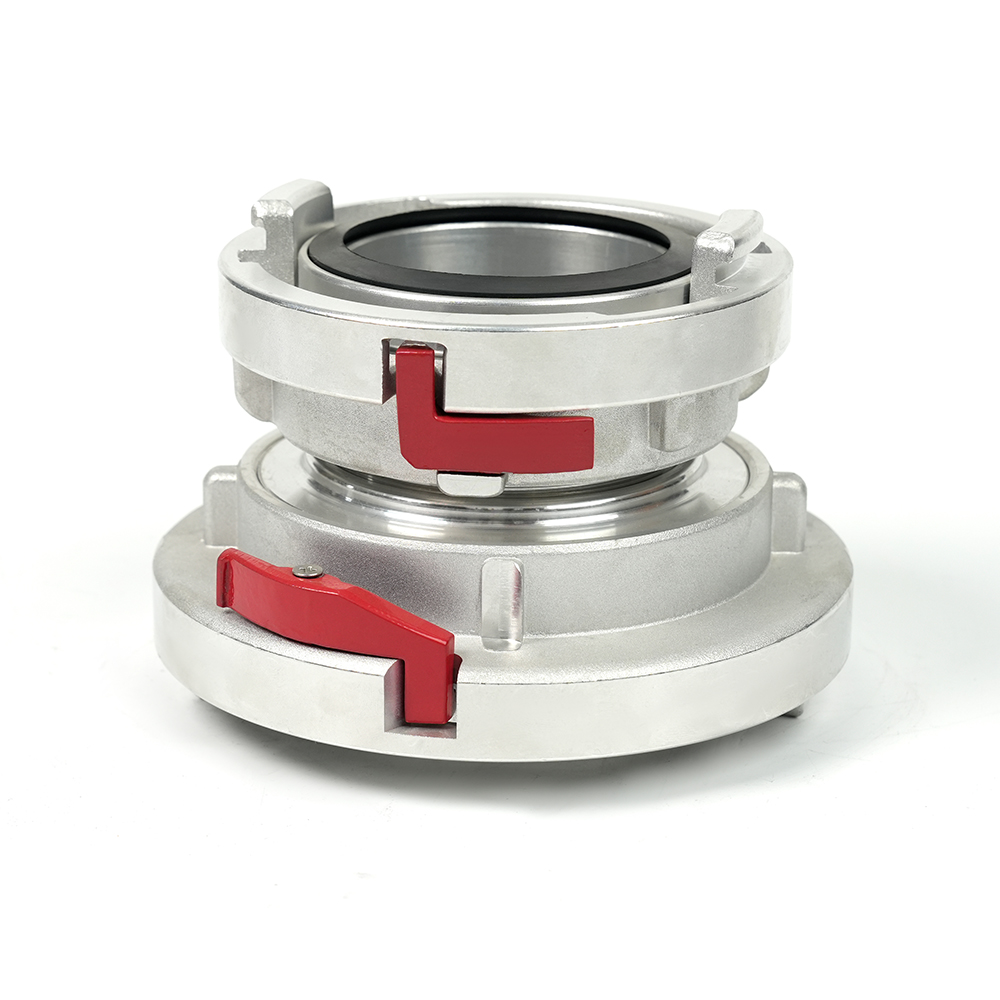

Storz Locking Reducer

Storz Locking Reducer

The storz locking reducer belongs to the the storz locking coupling series, with two ends featuring different sizes of storz locking couplings.
This coupling is used to connect fire hoses of different sizes or between fire hoses of different sizes and fire equipment (such as fire pumps, fire hoses, and fire hydrants).
The dimensions of the two ends can be customized according to requirements.

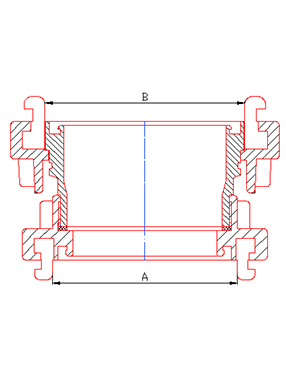

Dimensions Resources

ITEM NO.

DIN/mm

DIA

A/mm

B/mm

KJ

100/125

4"/5"

115

148

100/150

4/6"

115

160

100/200

4"/8"

115

220

100/250

4"/10"

115

278

100/300

4"/12"

115

316

125/150

5"/6"

148

160

125/200

5"/8"

148

220

125/250

5"/10"

148

278

125/300

5"/12"

148

316

150/200

6"/8"

160

220

150/250

6"/10"

160

278

150/300

6"/12"

160

316

200/250

8"/10"

220

278

200/300

8"/12"

220

316

250/300

10"/12"

278

316

* Materials and manufacturing processes can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
