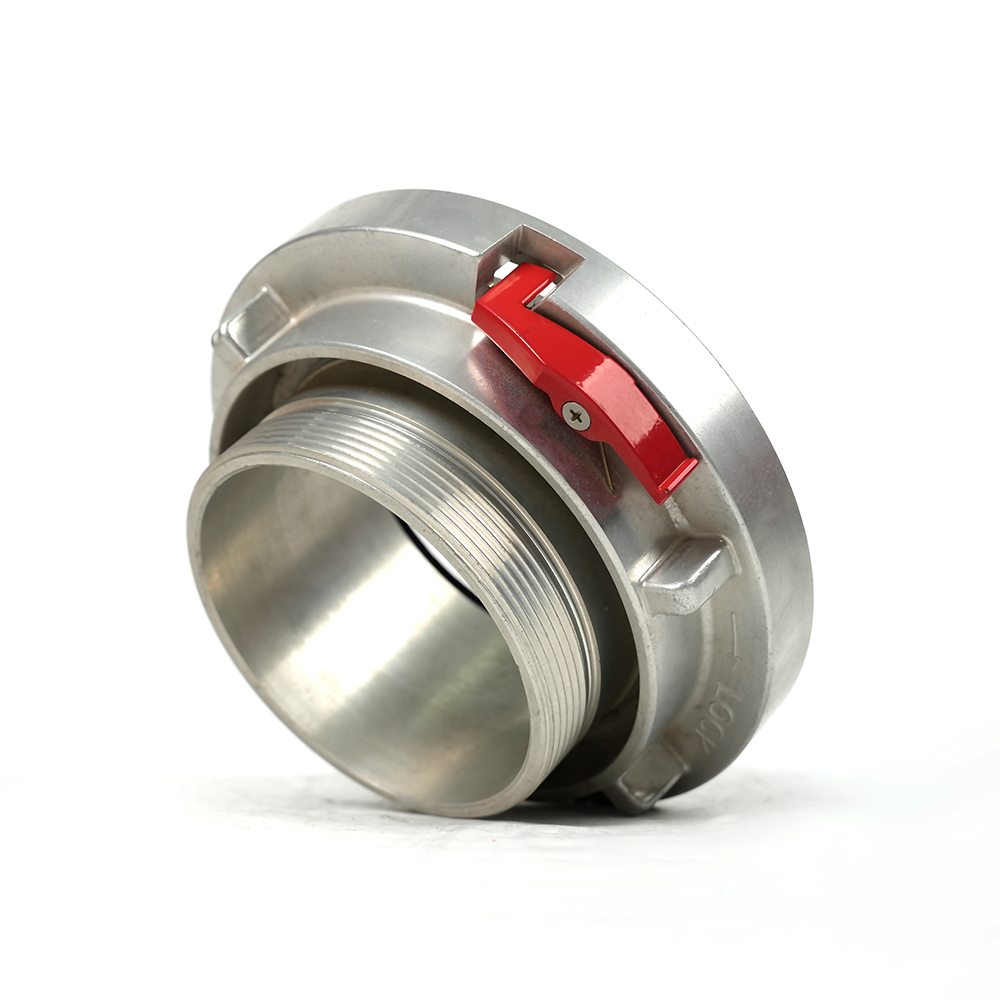

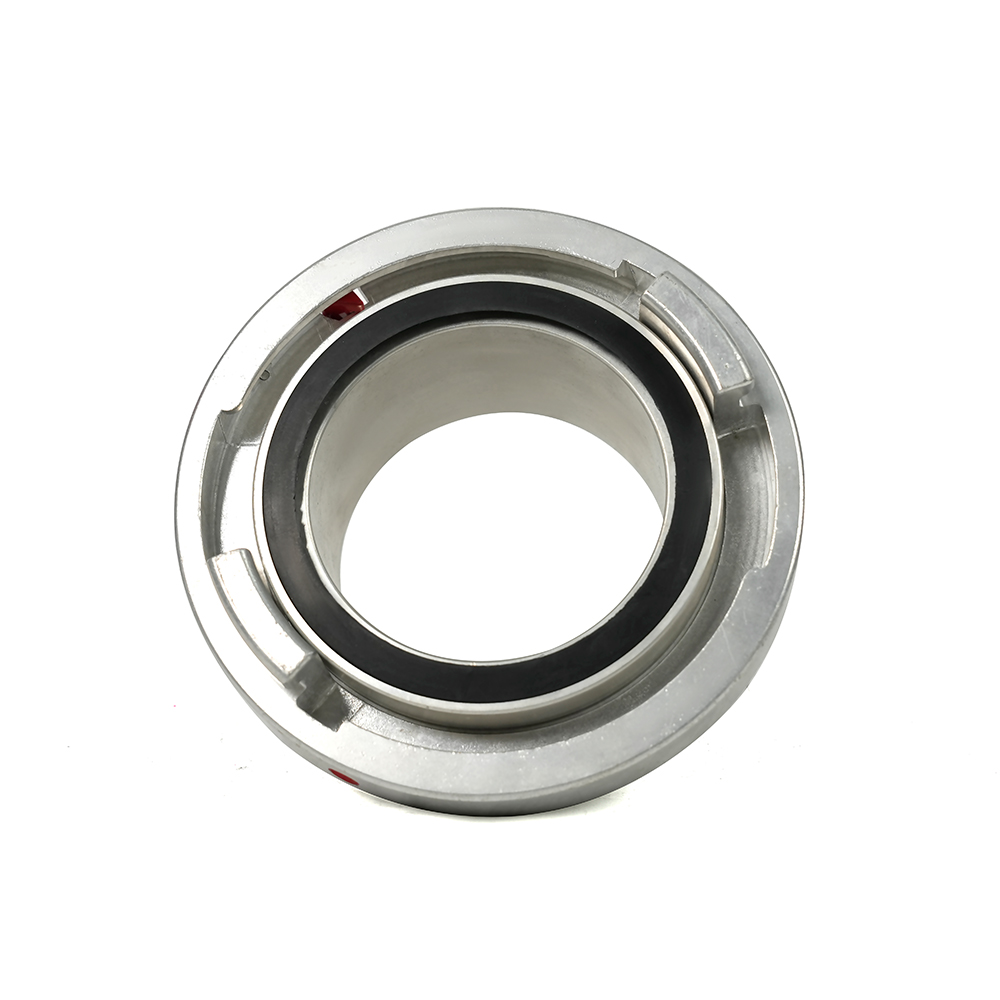

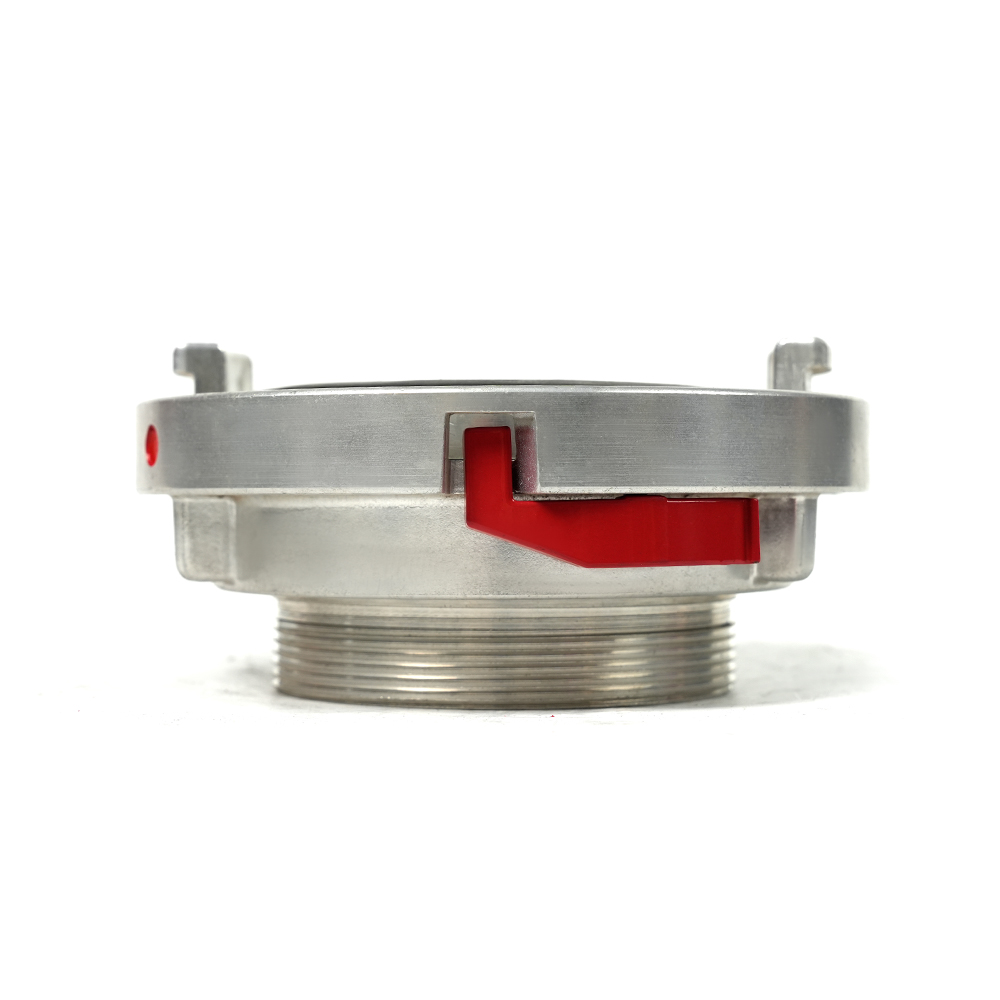

Storz Locking Threaded Coupling

Storz Locking Threaded Coupling

The storz locking threaded coupling belongs to the storz coupling series, with one end featuring an internal or external thread and the other end having a storz locking coupling.
This coupling is used to connect fire hoses and firefighting equipment (such as fire pumps, fire hoses, and fire hydrants).
This series is primarily available in large sizes, while smaller sizes can be customized upon request.

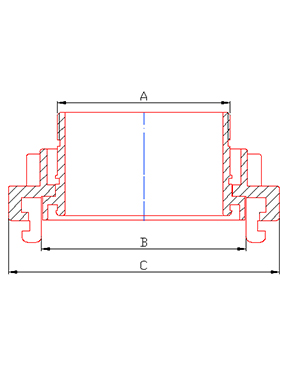

Dimensions Resources

ITEM NO.

DIN/mm

DIA

A/mm

B/mm

C/mm

/

100

4"

M100*3

115

156

125

5"

M125*3

148

196

150

6"

M145*3

160

215

200

8"

M200*4

220

280

250

10"

M255*4

278

339

300(3teeth)

12"

M290*4

316

384

350

14"

M350*4

336

448

* Materials and manufacturing processes can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
