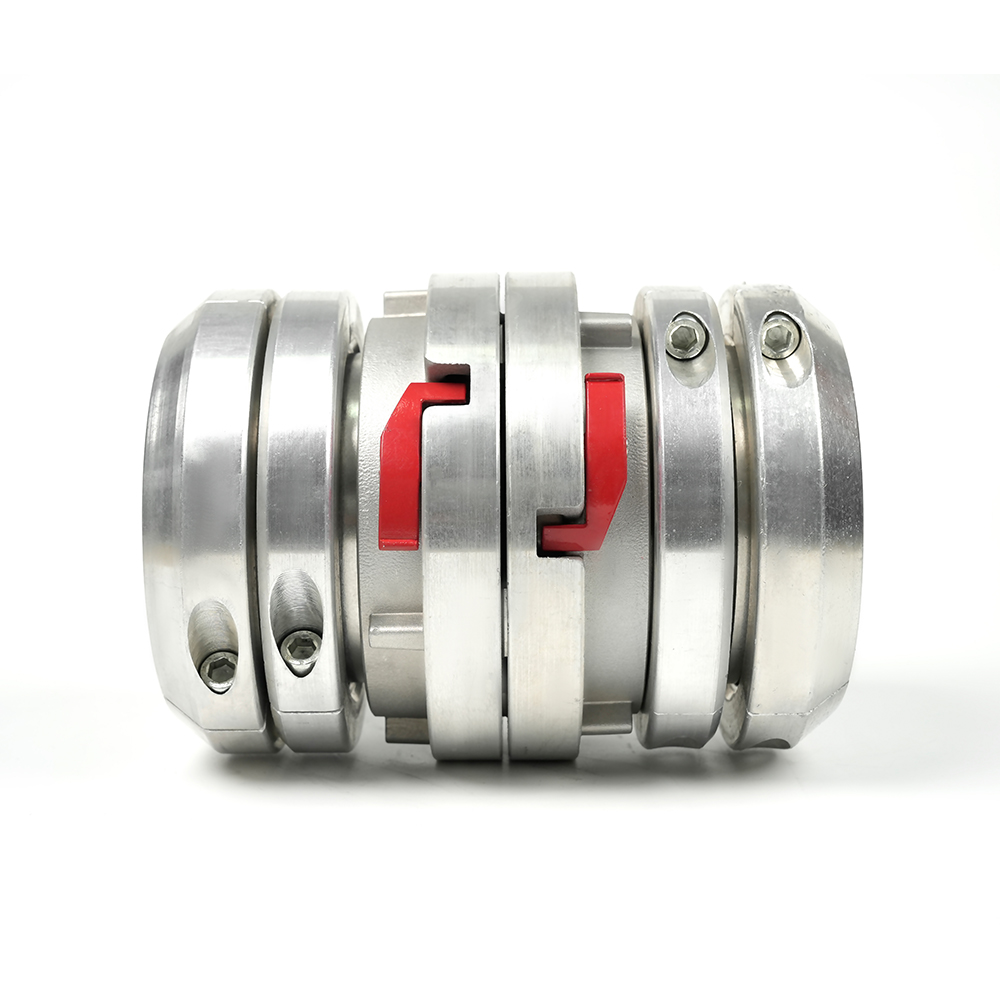

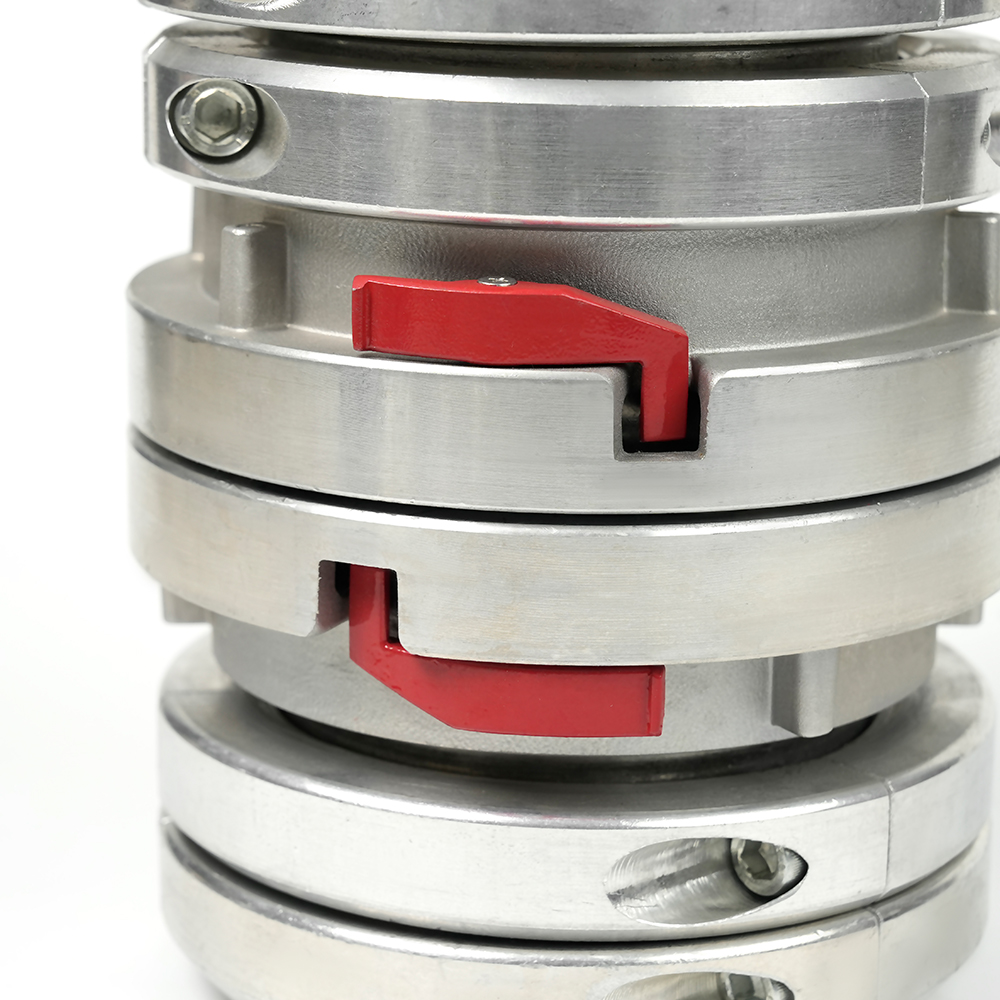

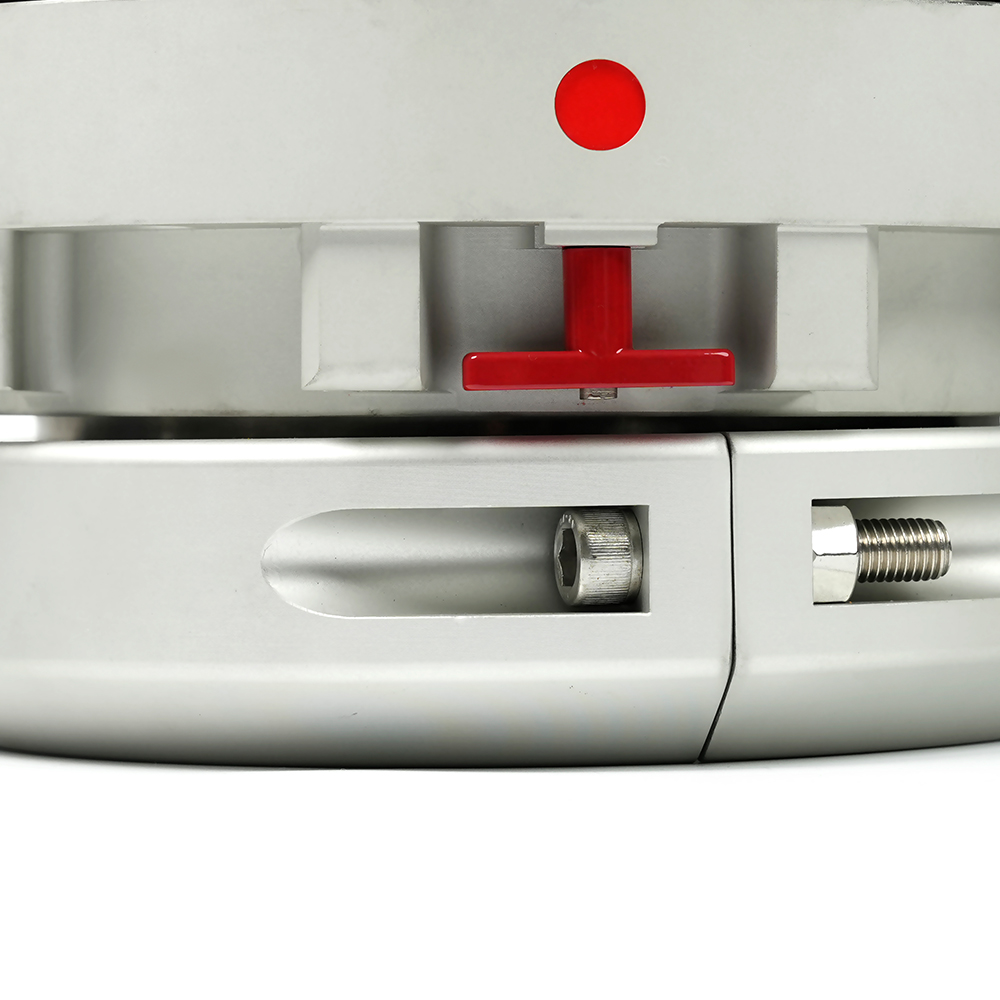

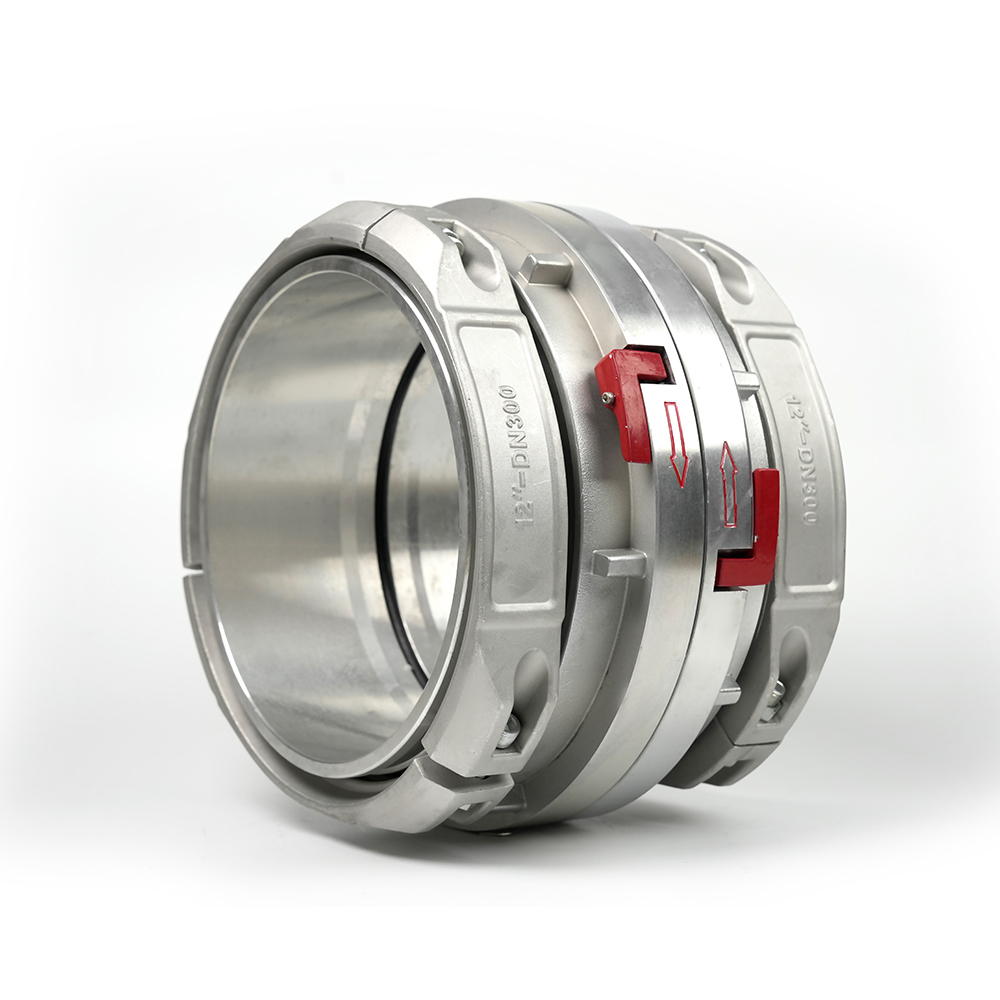

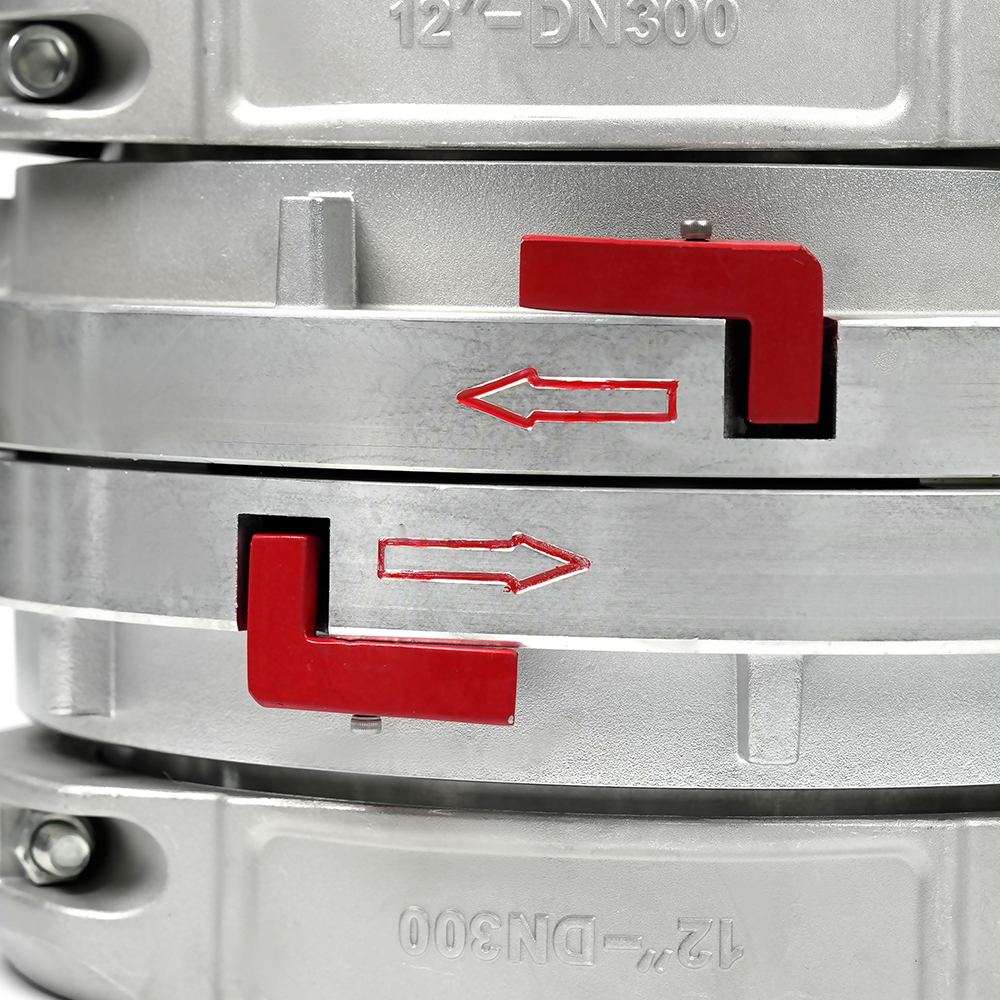

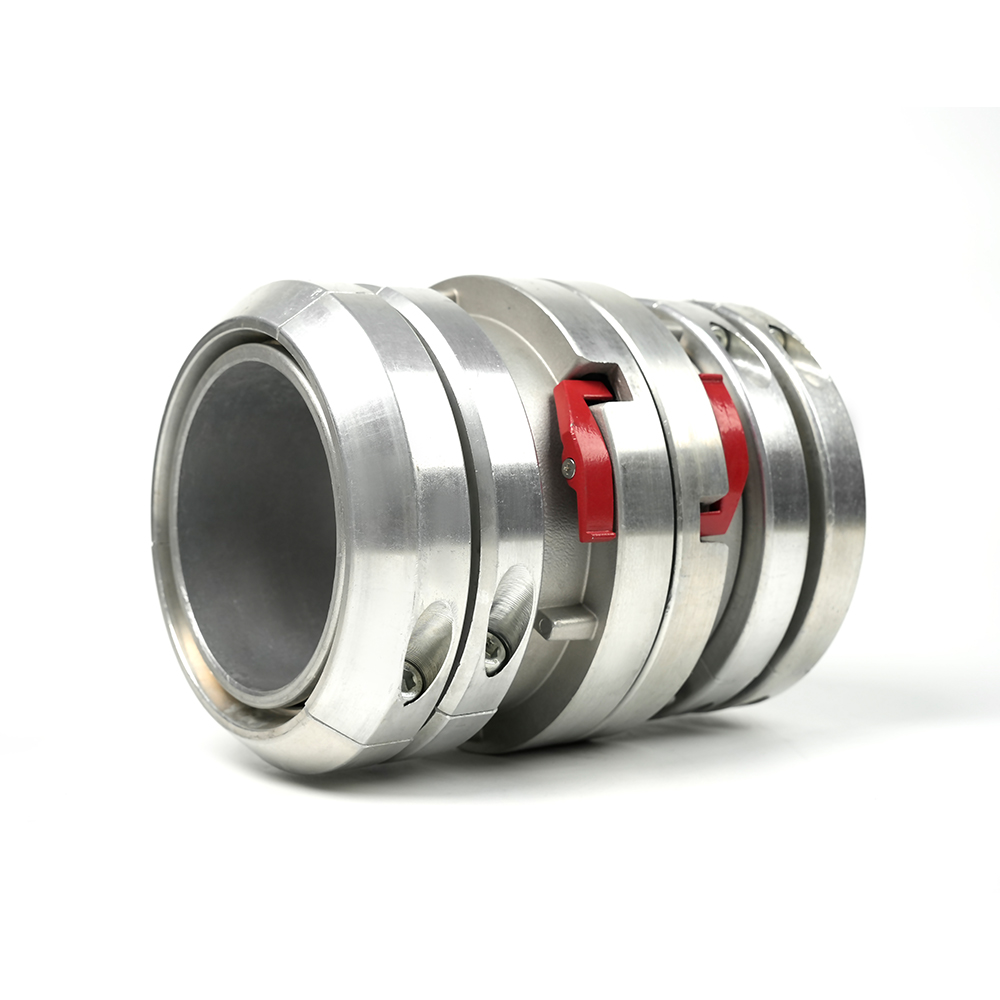

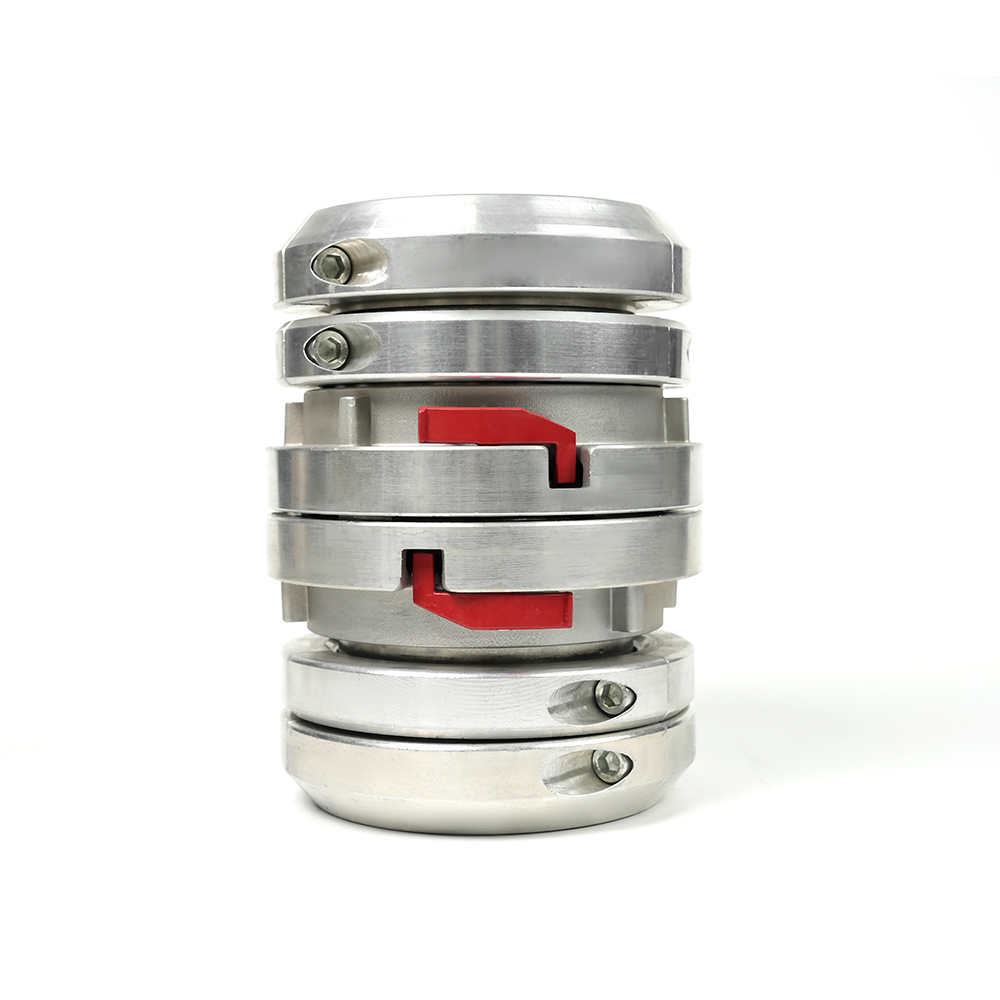

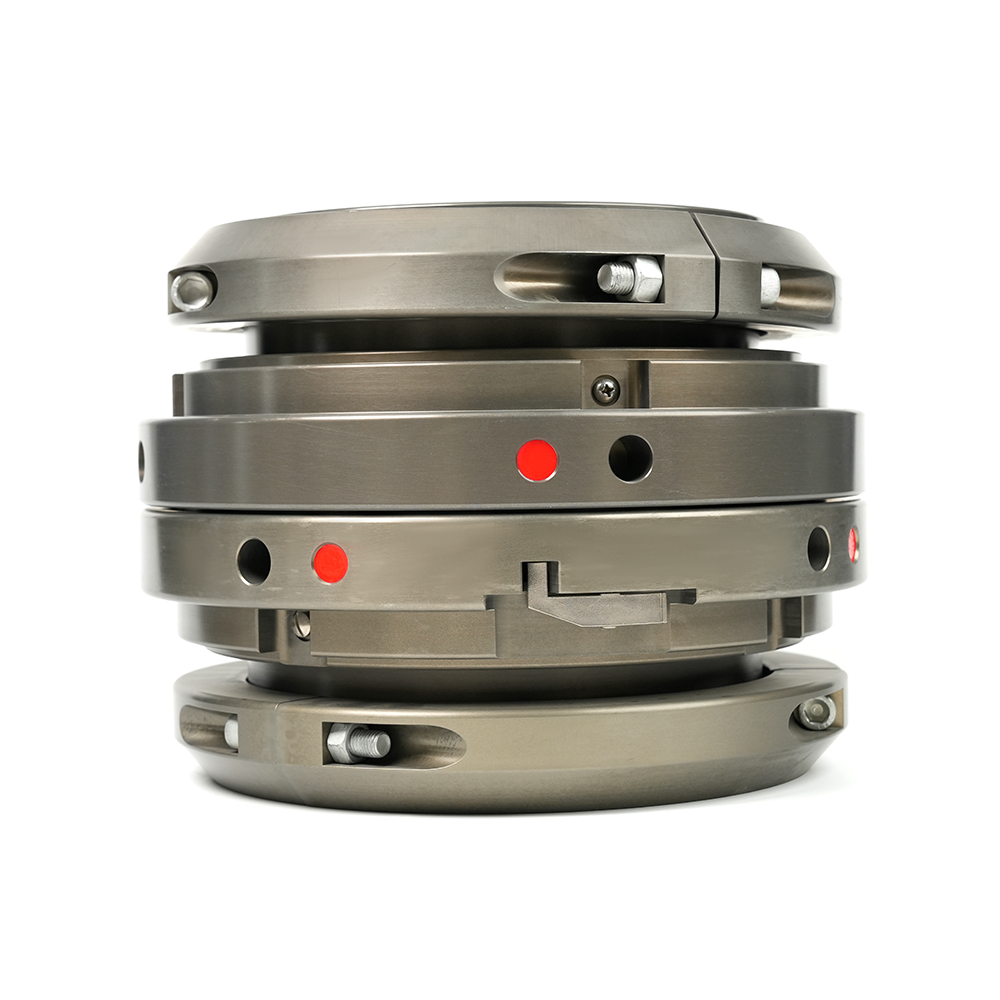

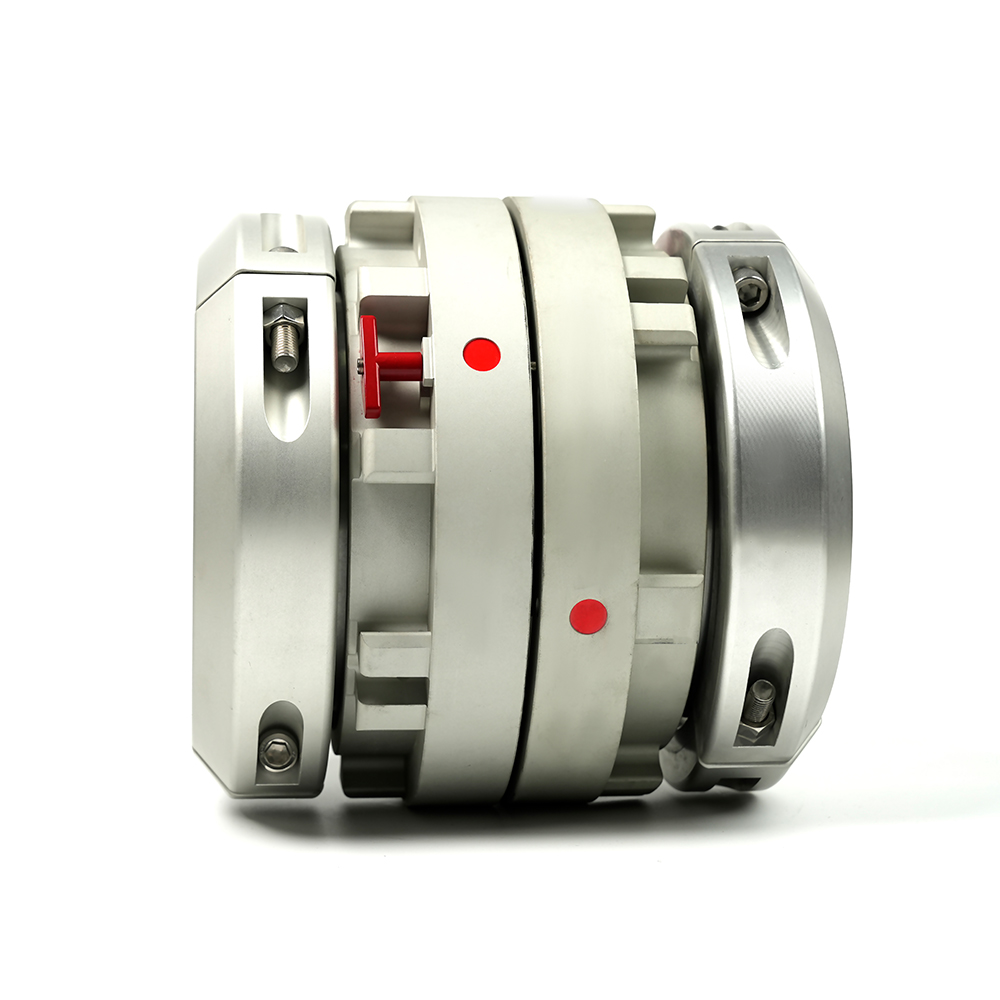

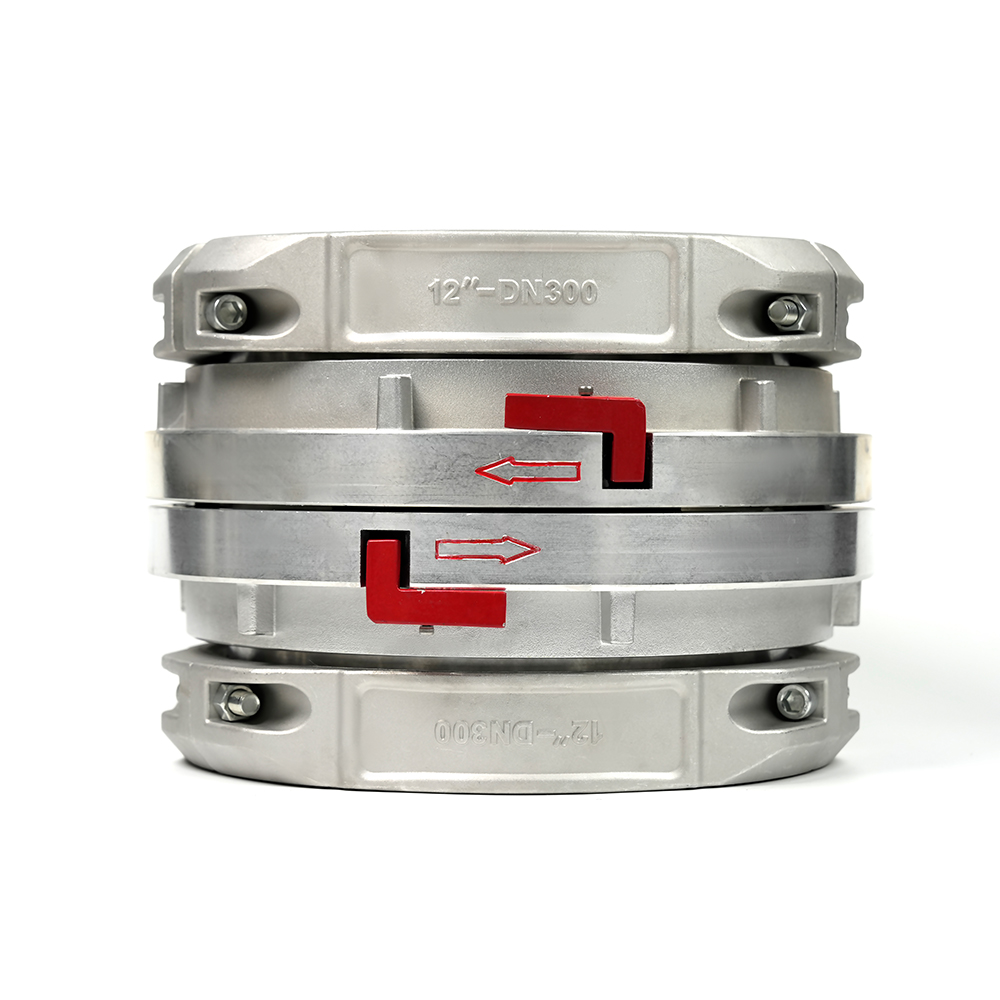

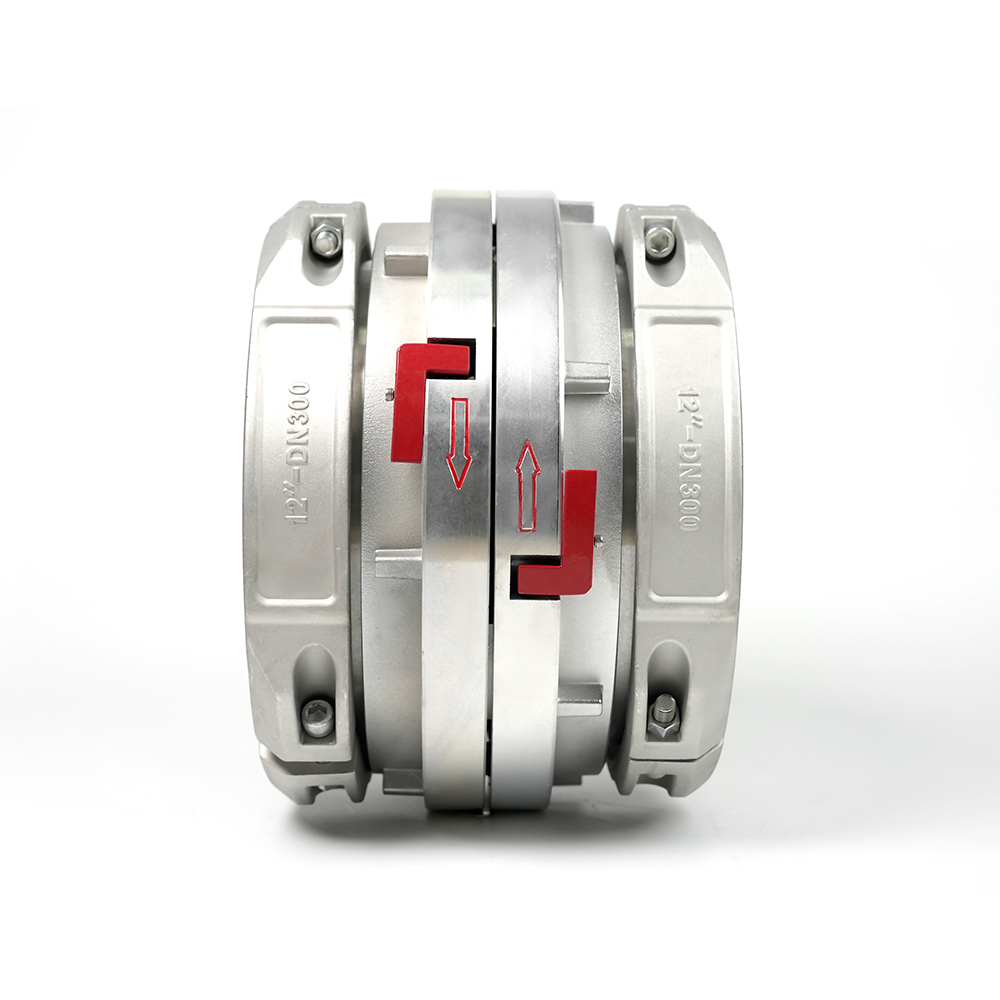

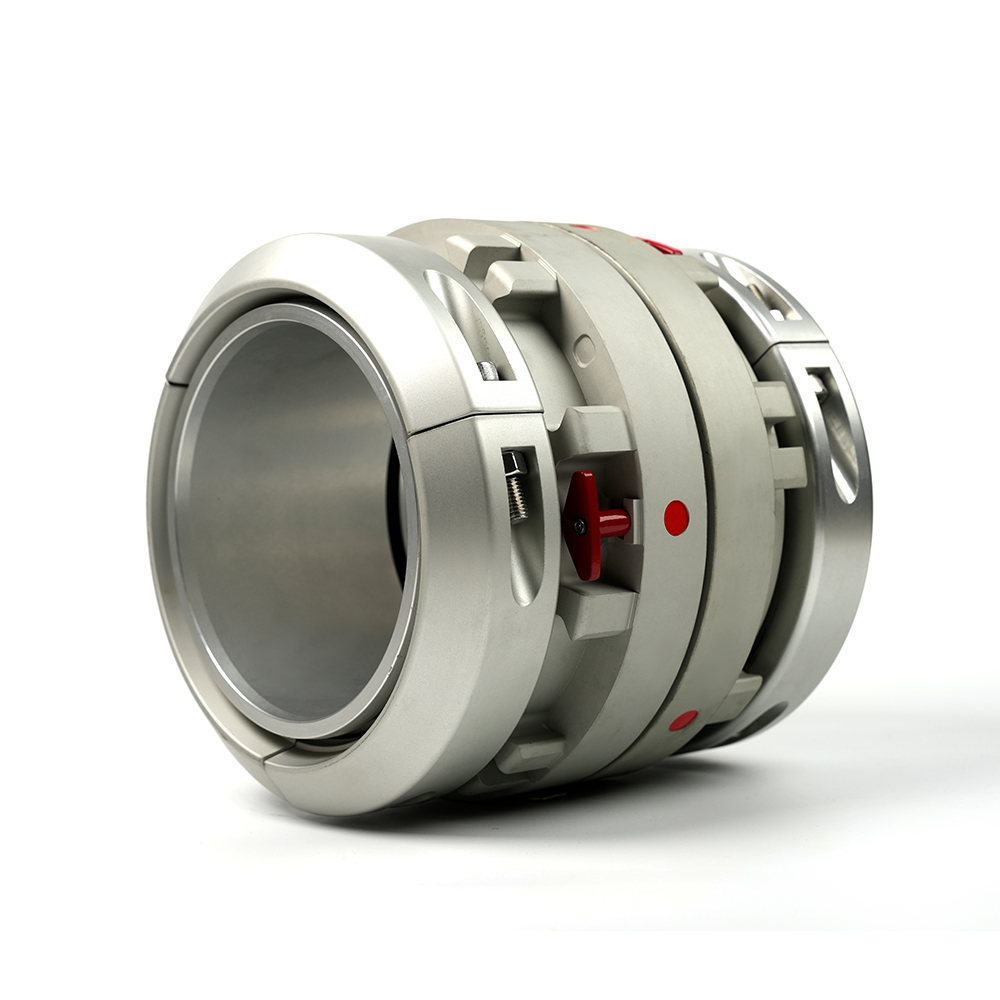

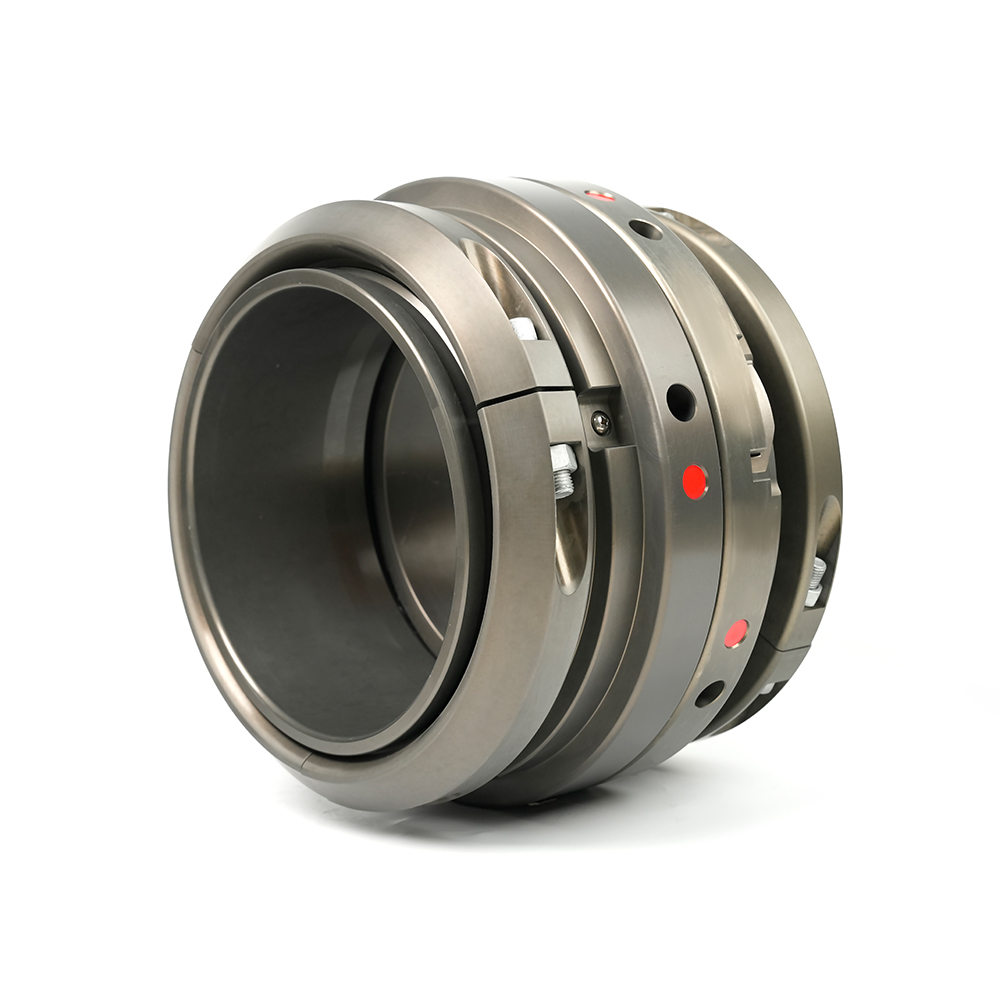

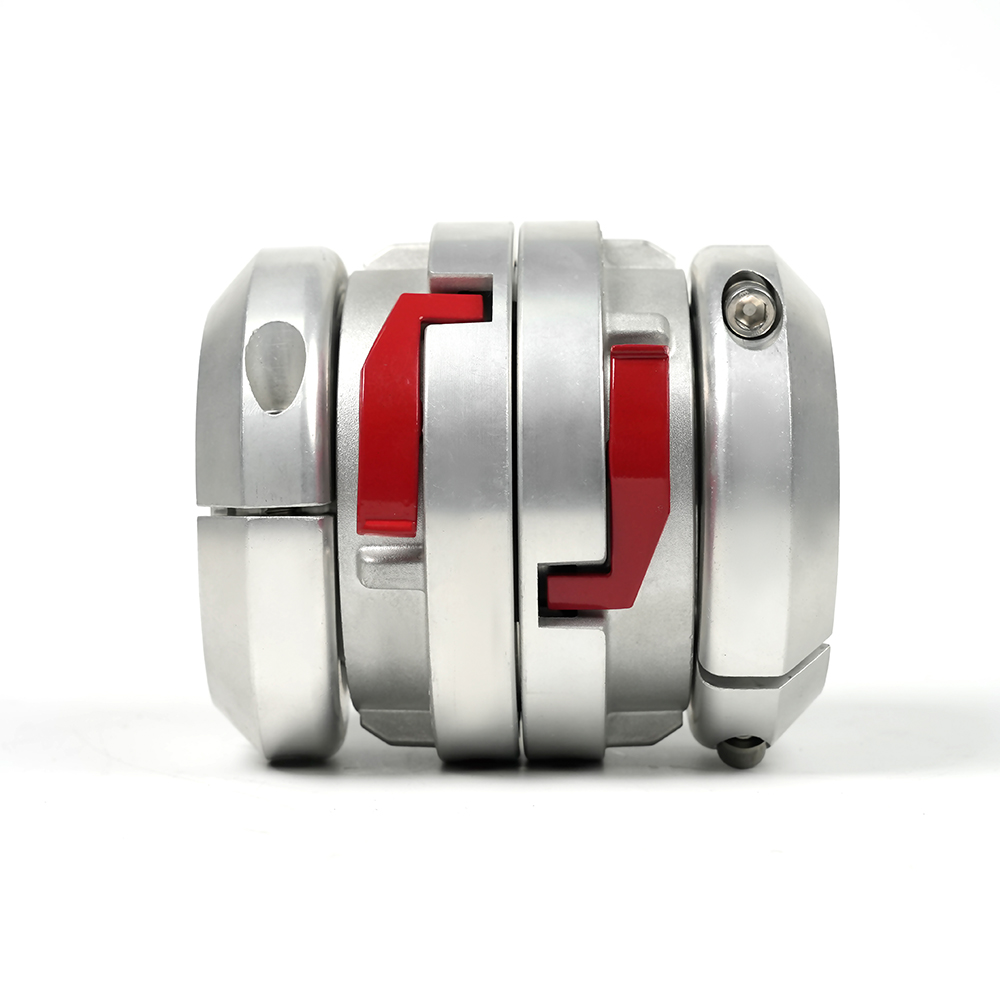

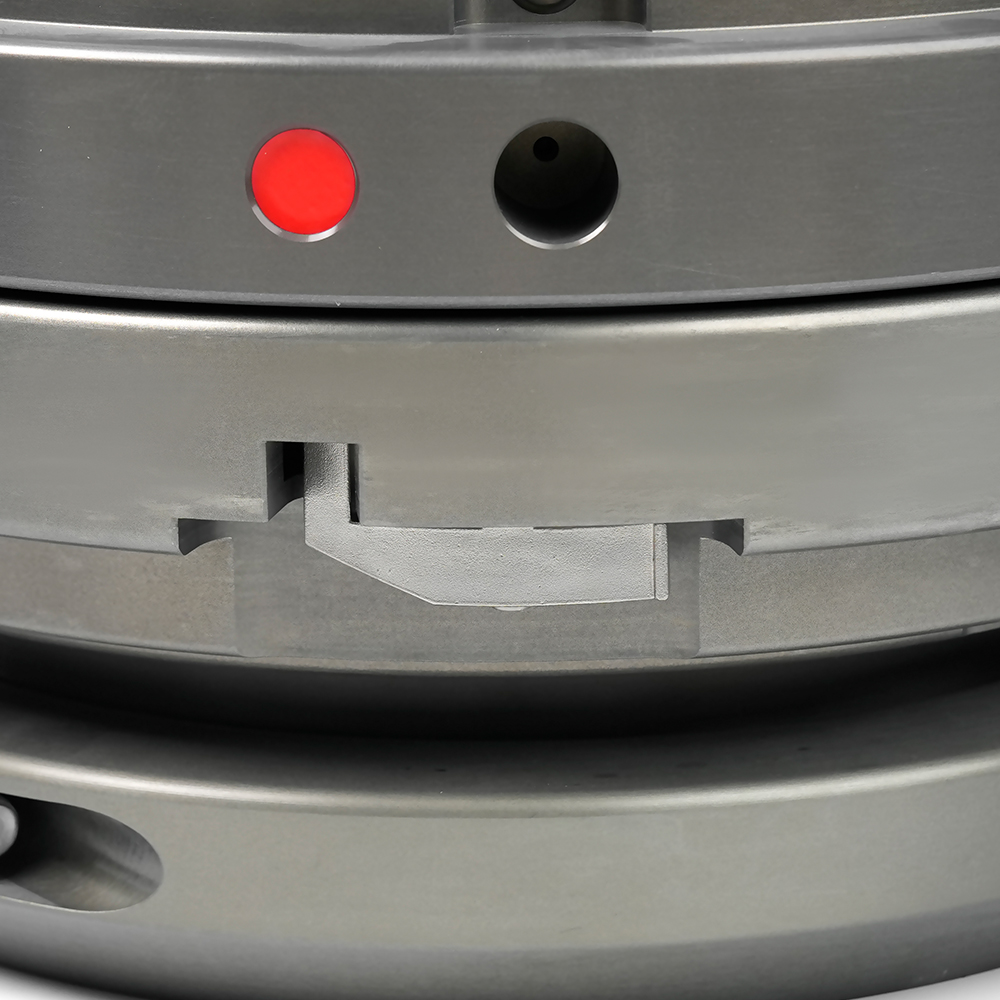

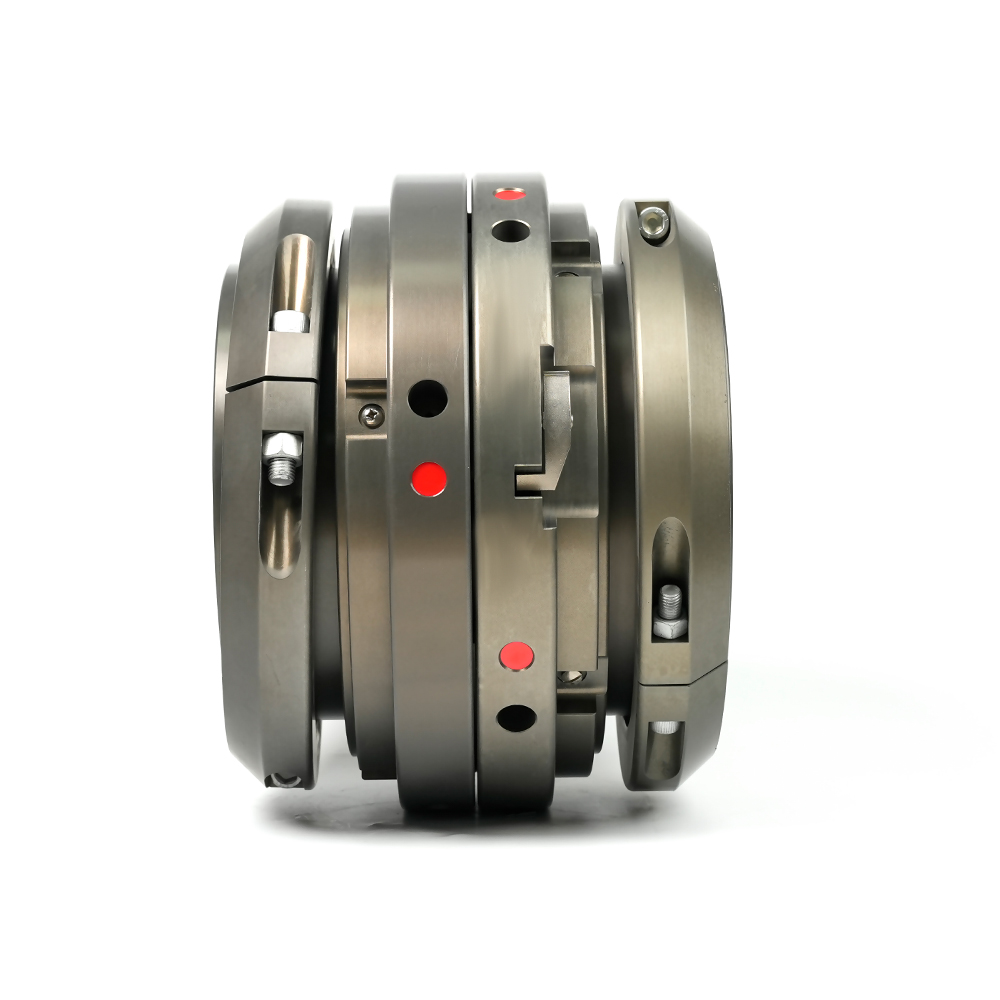

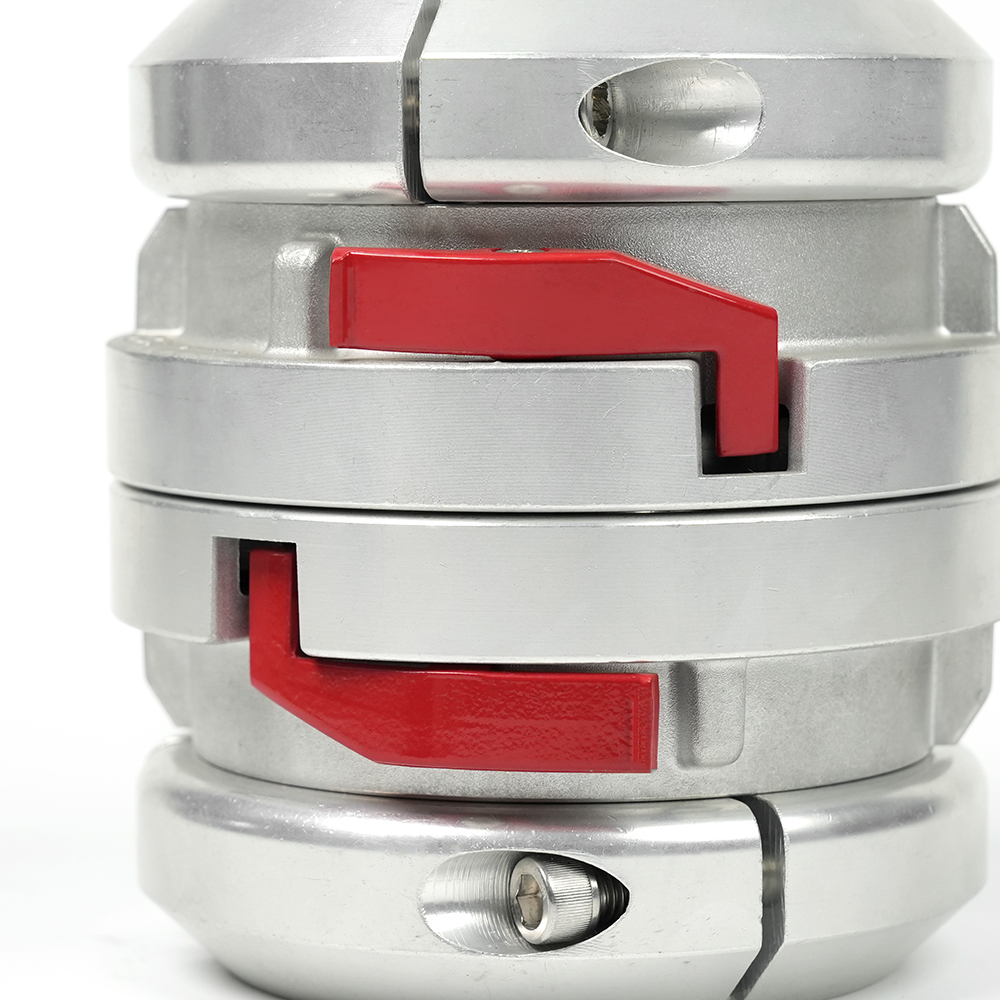

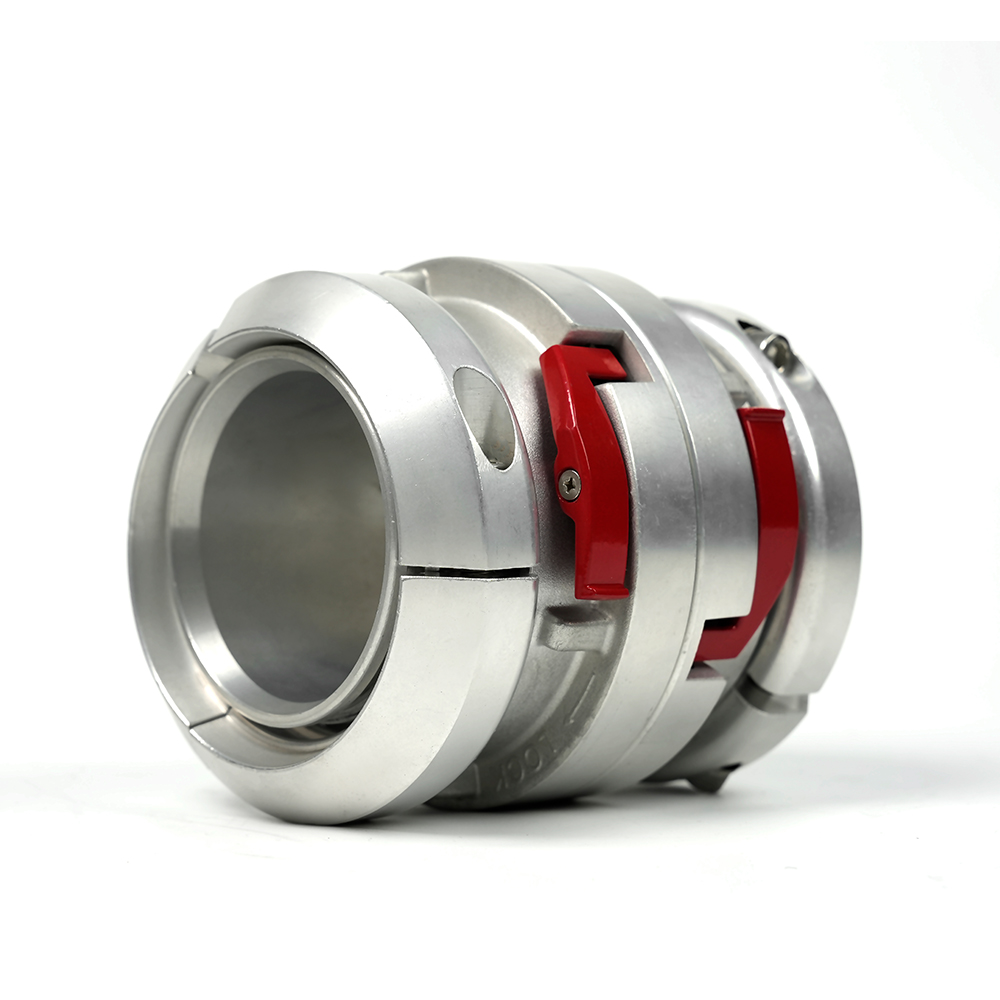

The Storz self-locking hose coupling is an enhanced version of the standard Storz hose coupling, equipped with an additional safety locking mechanism. This feature reinforces the connection strength while maintaining the original quick-connect design.

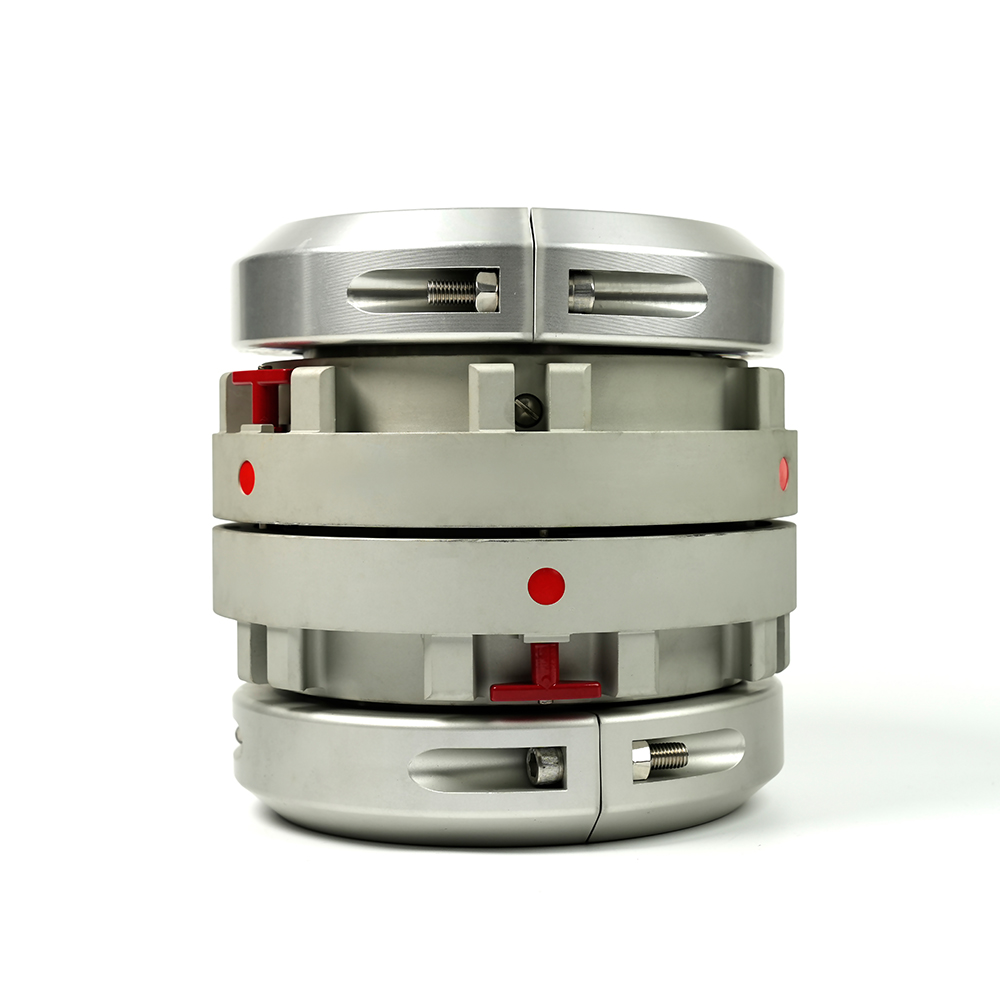

The coupling adopts a double-sleeve structure. During hose assembly, the hose is placed over both the upper and lower tailpipes and secured firmly using hose clamps, ensuring a tight and reliable connection.

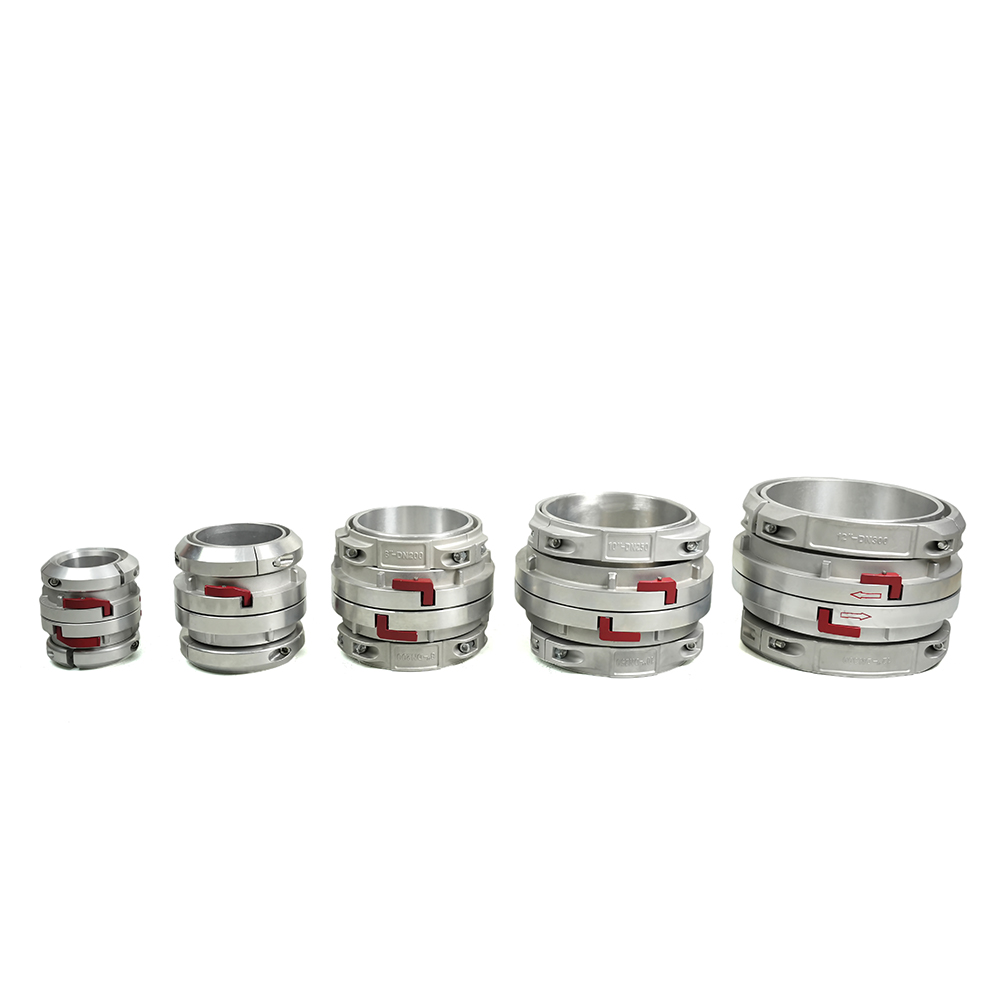

This series is primarily available in large sizes, while smaller sizes can be customized upon request.

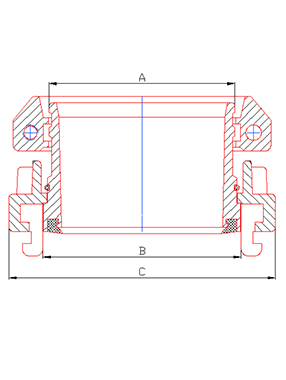

ITEM NO. |
DIN/mm |
DIA |
A/mm |
B/mm |
C/mm |
KD-Locking |
100 |
4" |
101.8 |
115 |
156 |
125 |
5" |
126.5 |
148 |
196 |
|
150 |
6" |
150 |
160 |
215 |
|
200 |
8" |
203 |
220 |
280 |
|
250 |
10" |
253 |
278 |
339 |
|
300(3teeth) |
12" |
304 |
316 |
384 |
|
300(4teeth) |
12" |
304 |
318 |
416 |
|
350 |
14" |
350 |
336 |
448 |
* Material and manufacturing process can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
