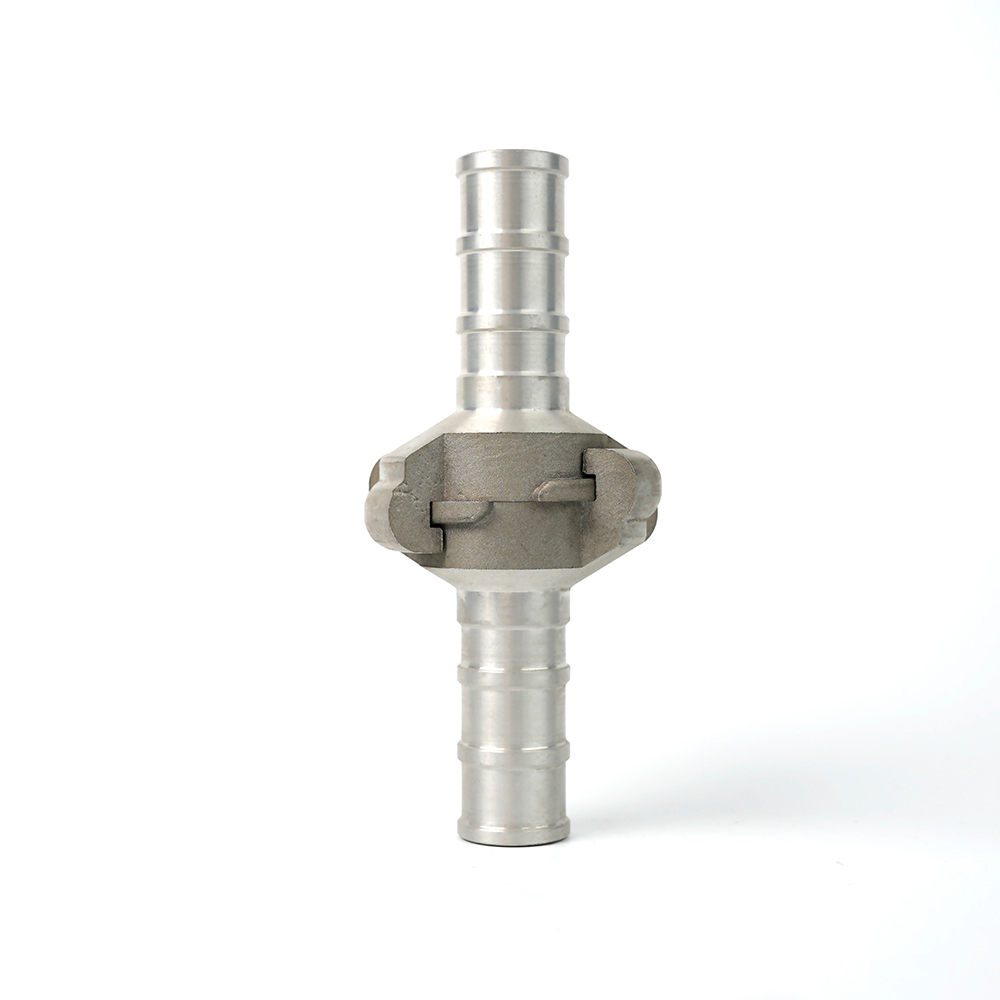

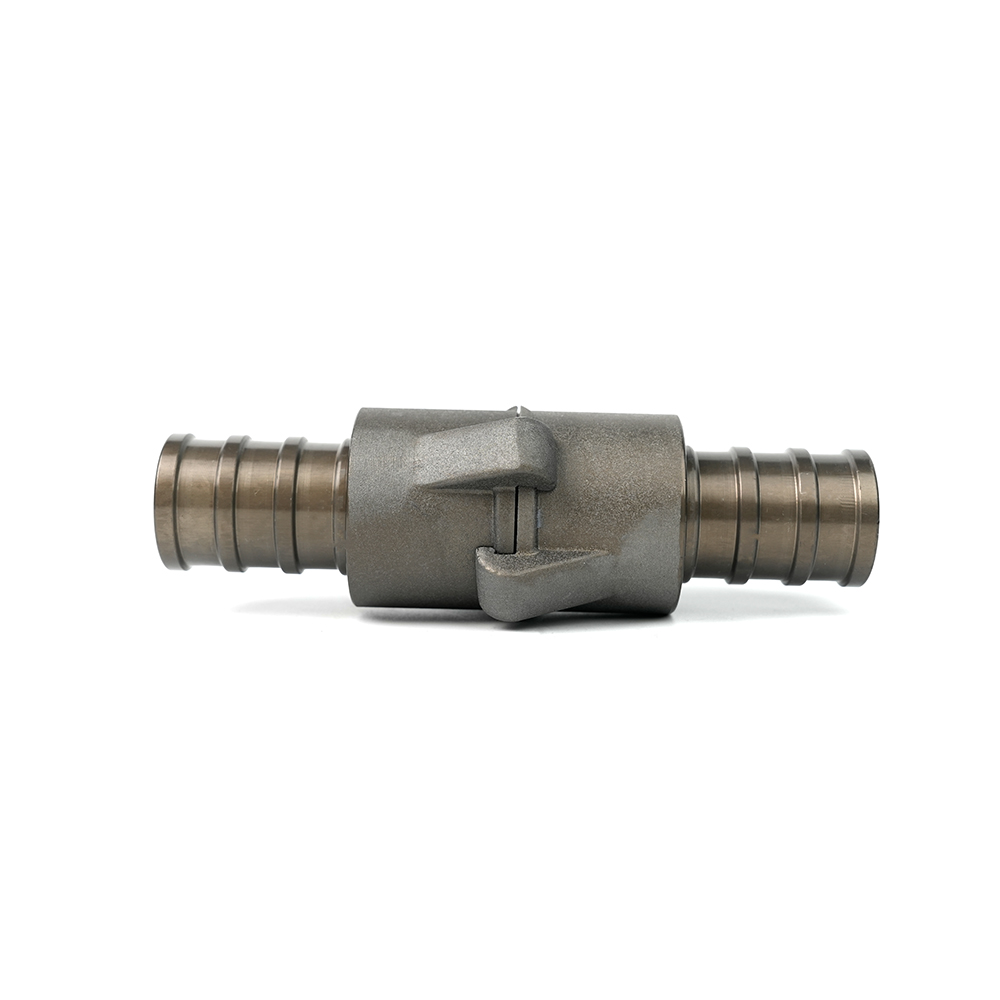

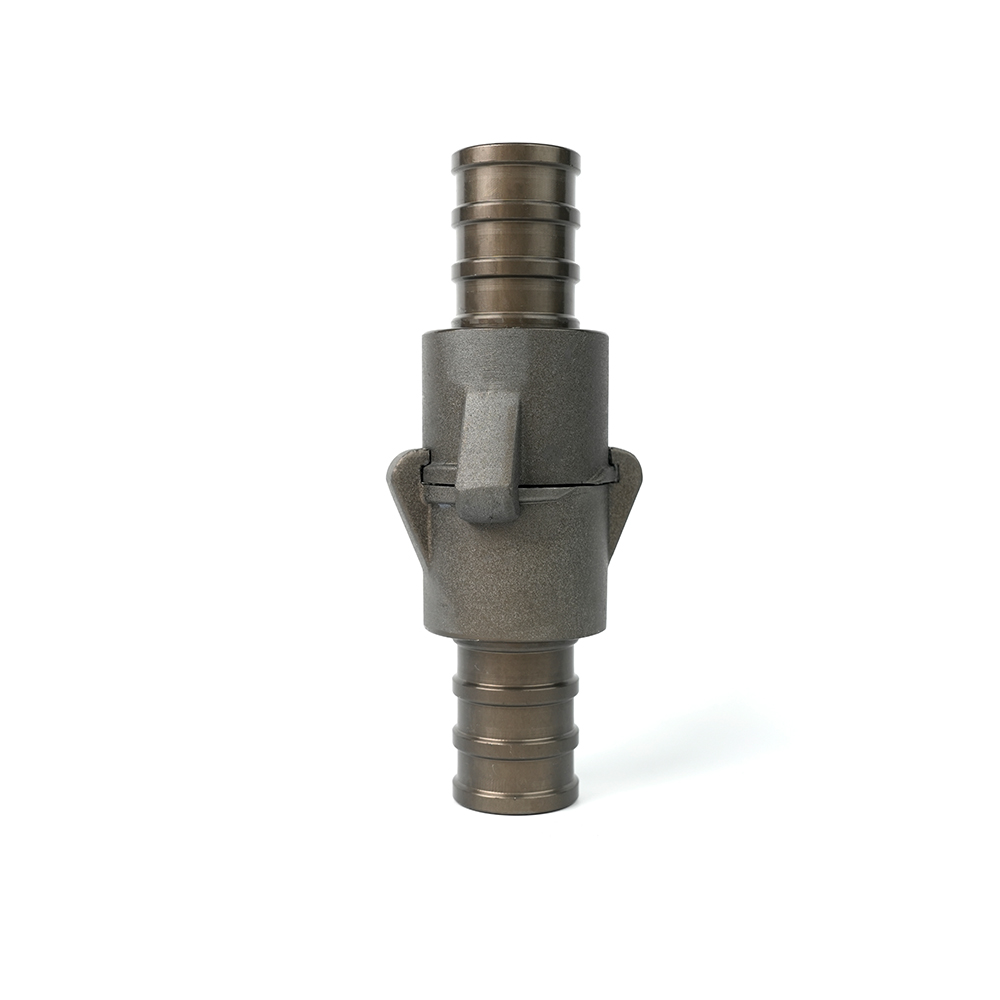

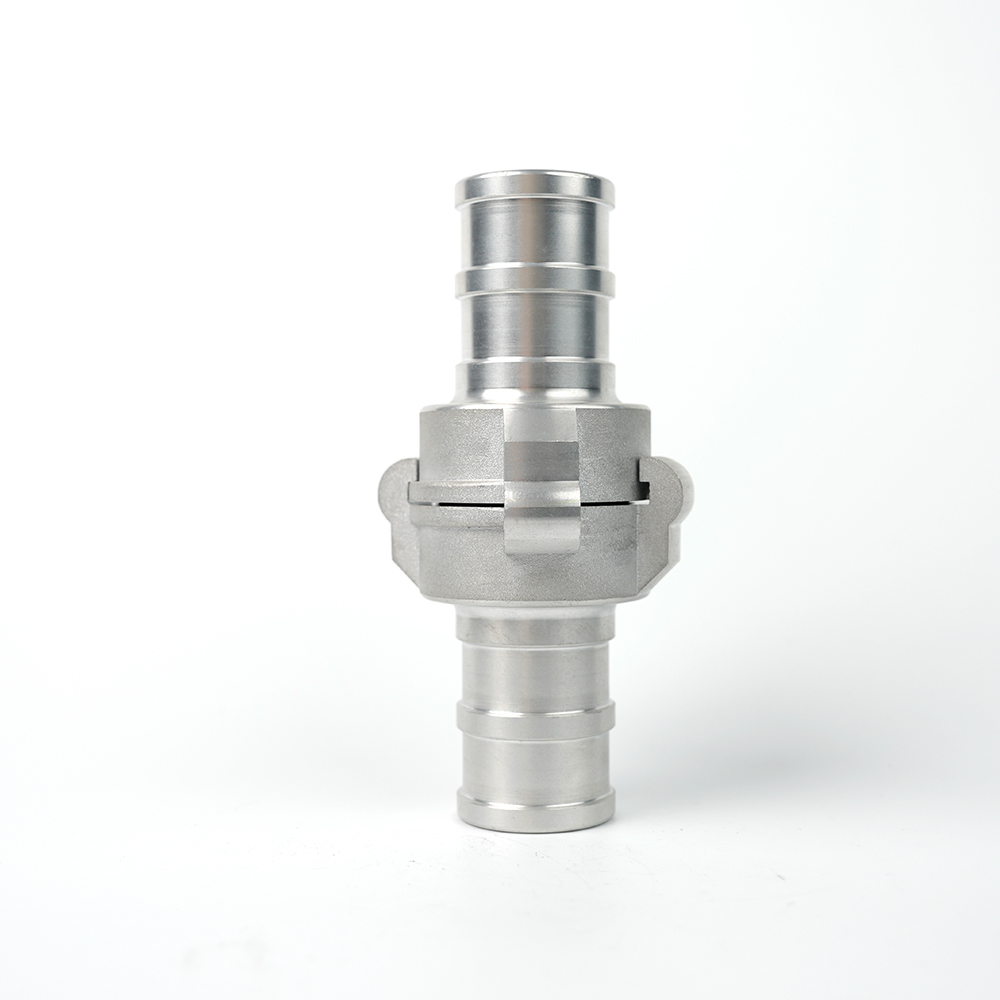

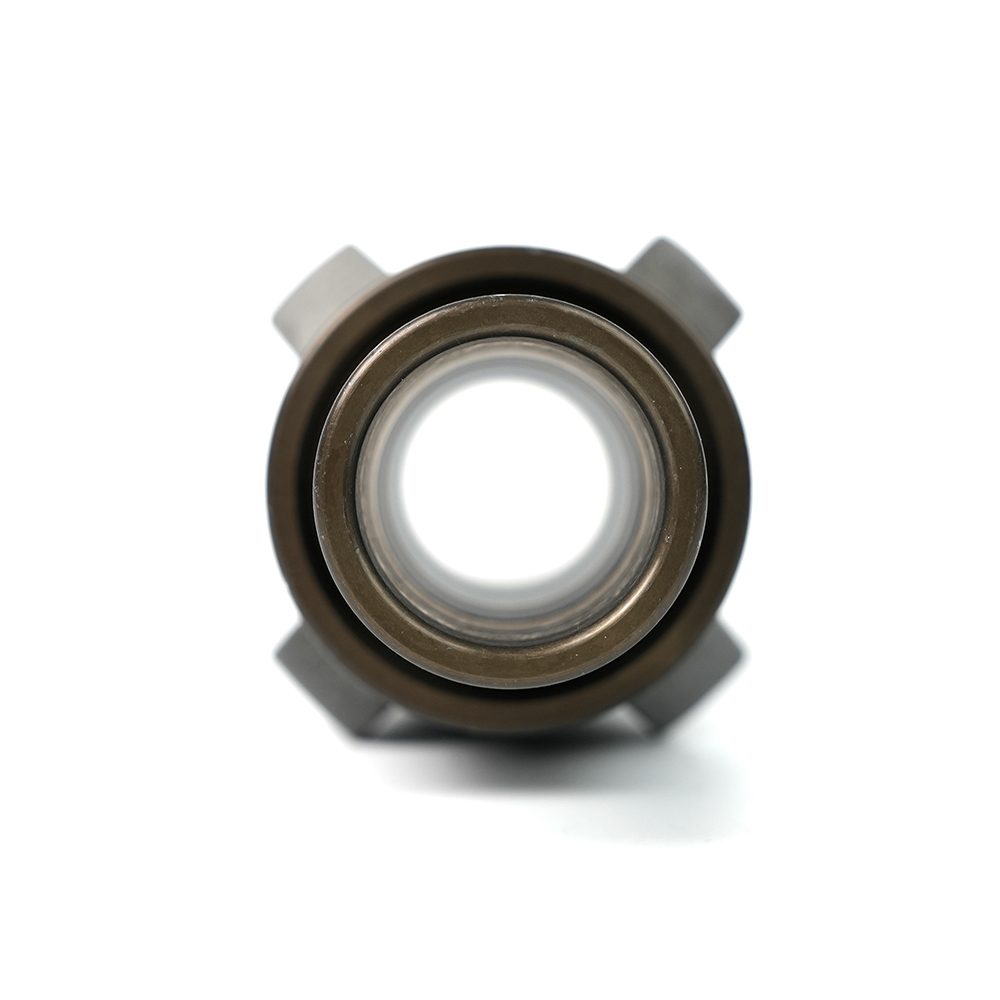

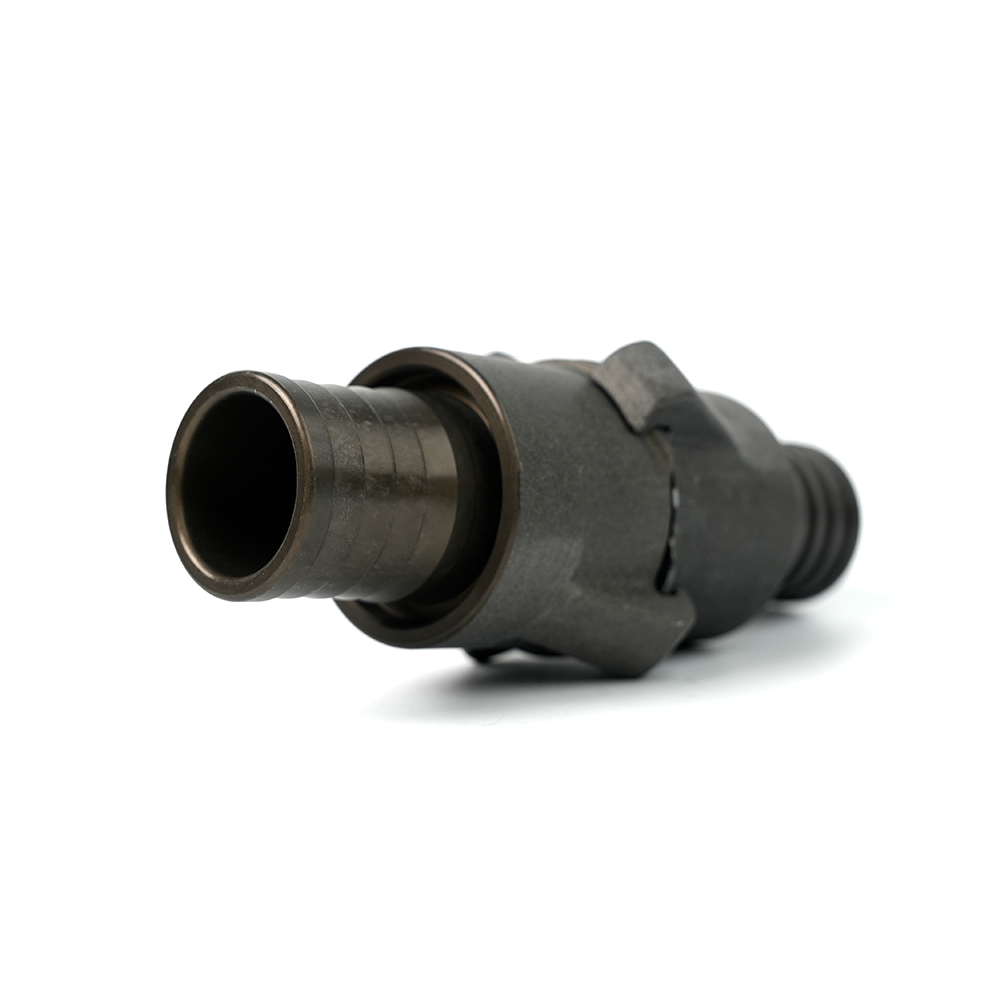

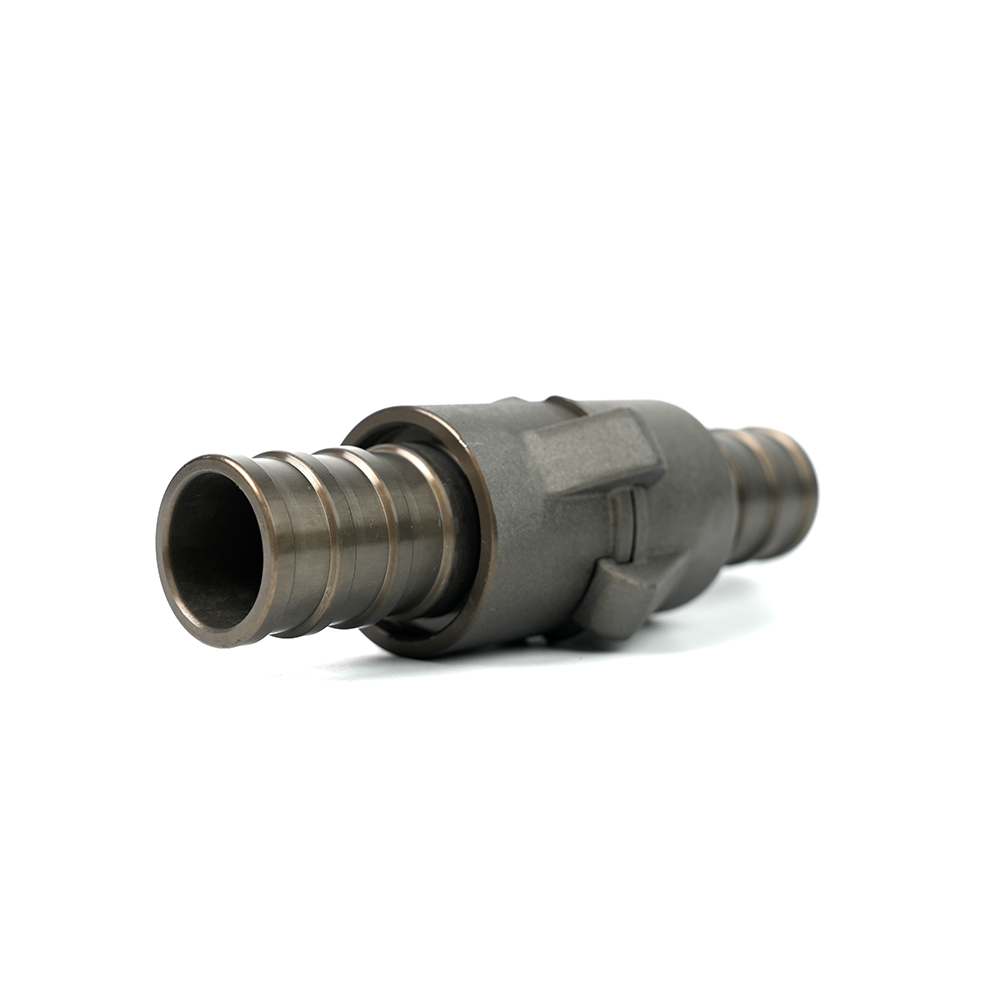

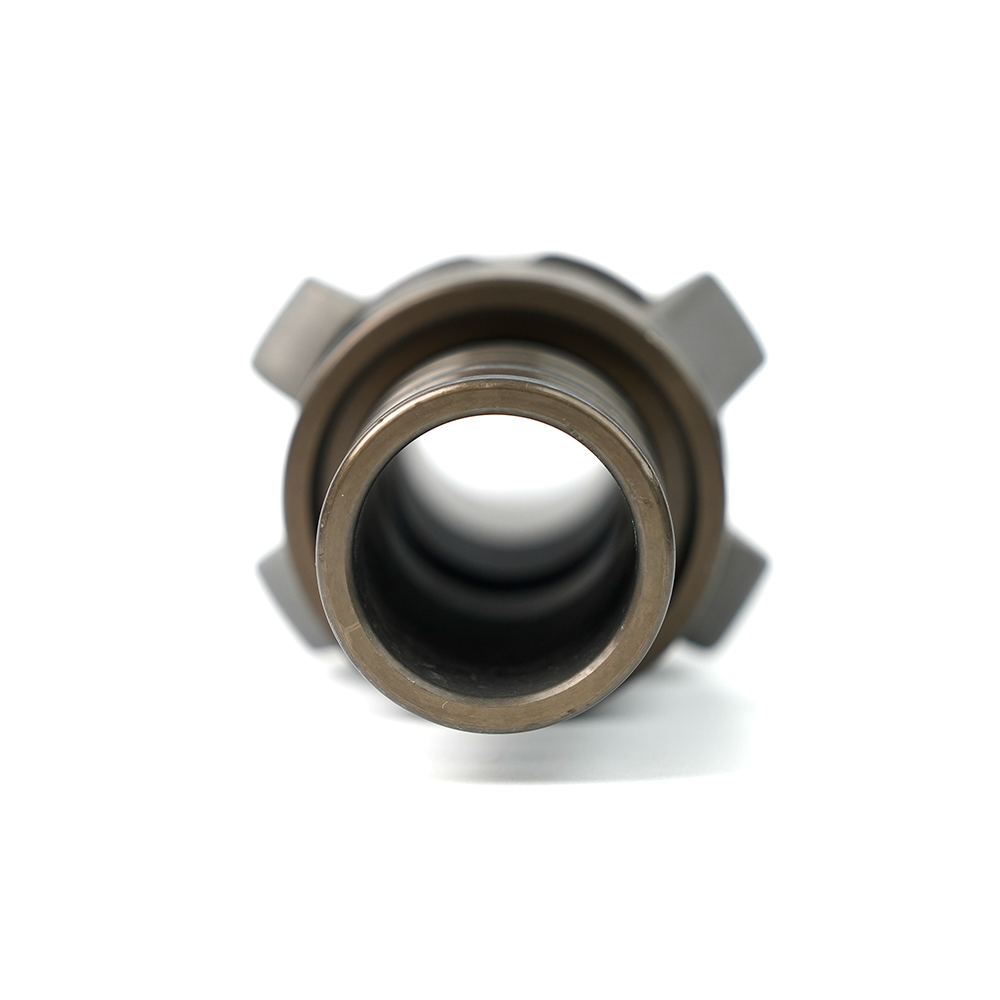

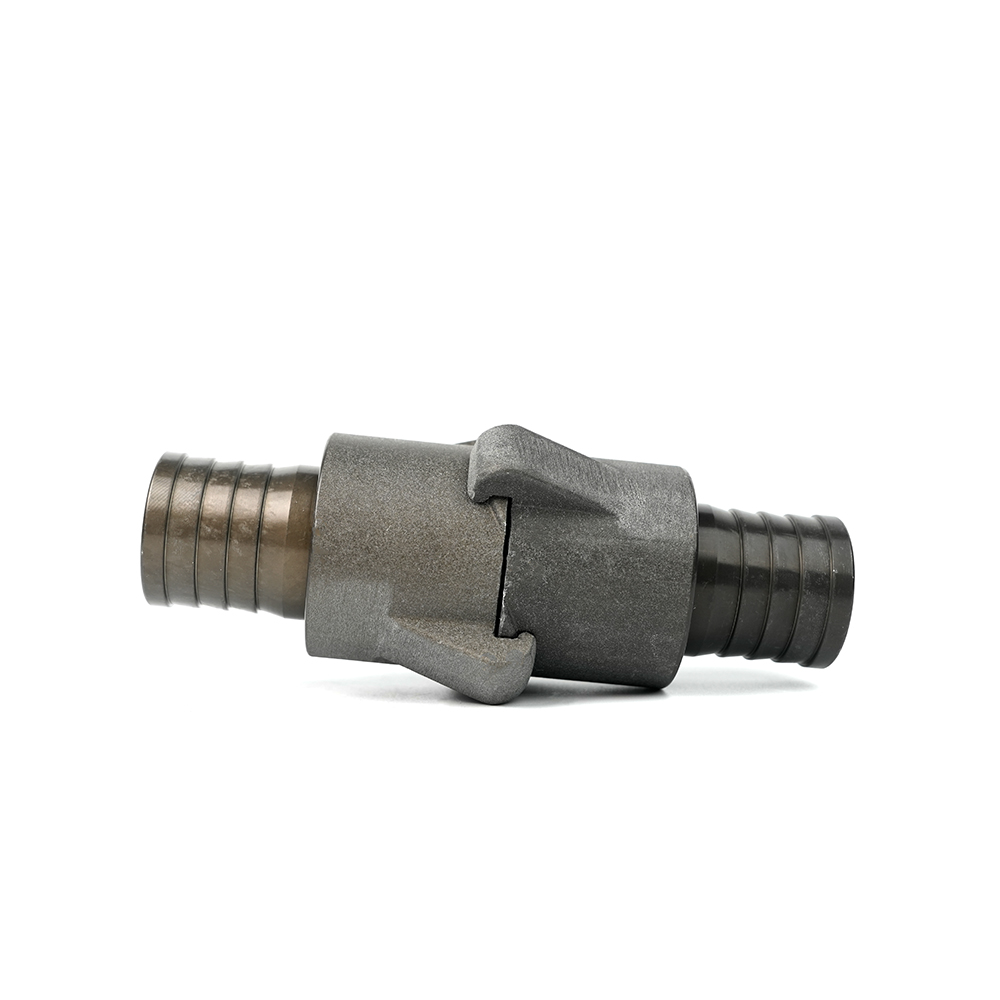

The External Binding Fire Hose Coupling consists of a pair of external binding internal claw couplings. This coupling can be classified into 2 types based on the shape of the tailpipe:
1. Serrated tail ends type: When connected to the hose, the hose is placed over the outer side of the tailpipe and connected using an aluminum ring compression method.
2. Ribbed tail ends type: When connected to the hose, the hose is placed over the outer side of the tailpipe and connected using a wire binding method.

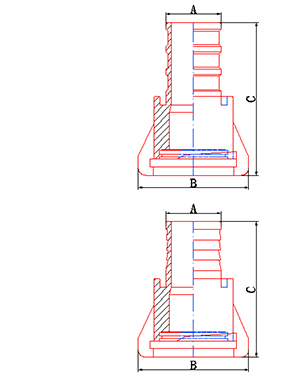

ITEM NO. |
DIN/mm |
DIA |
A/mm |
B/mm |
C/mm |
/ |
25 |
1" |
25 |
65 |
85 |
40(sectional) |
1.5"(sectional) |
38 |
76 |
105 |
|
40(inverted teeth) |
1.5"(inverted teeth) |
38 |
76 |
93 |
* Materials and manufacturing processes can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
