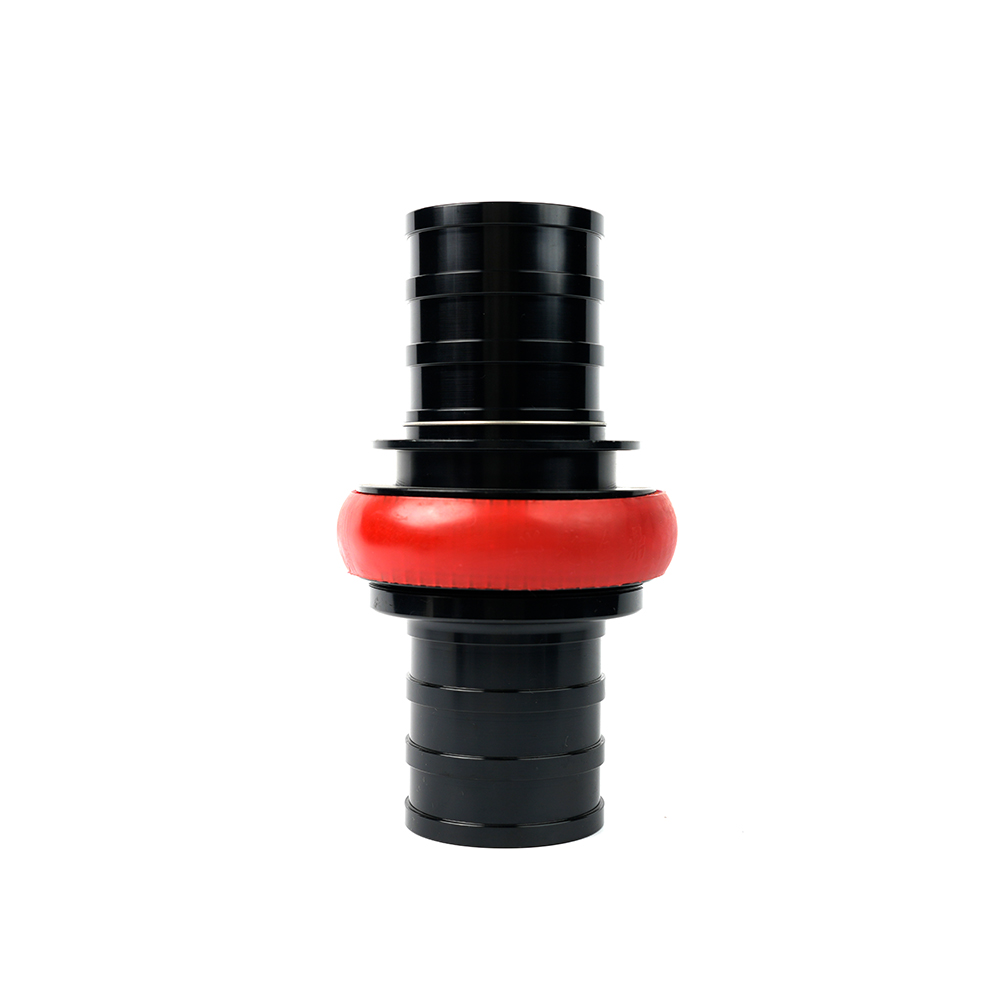

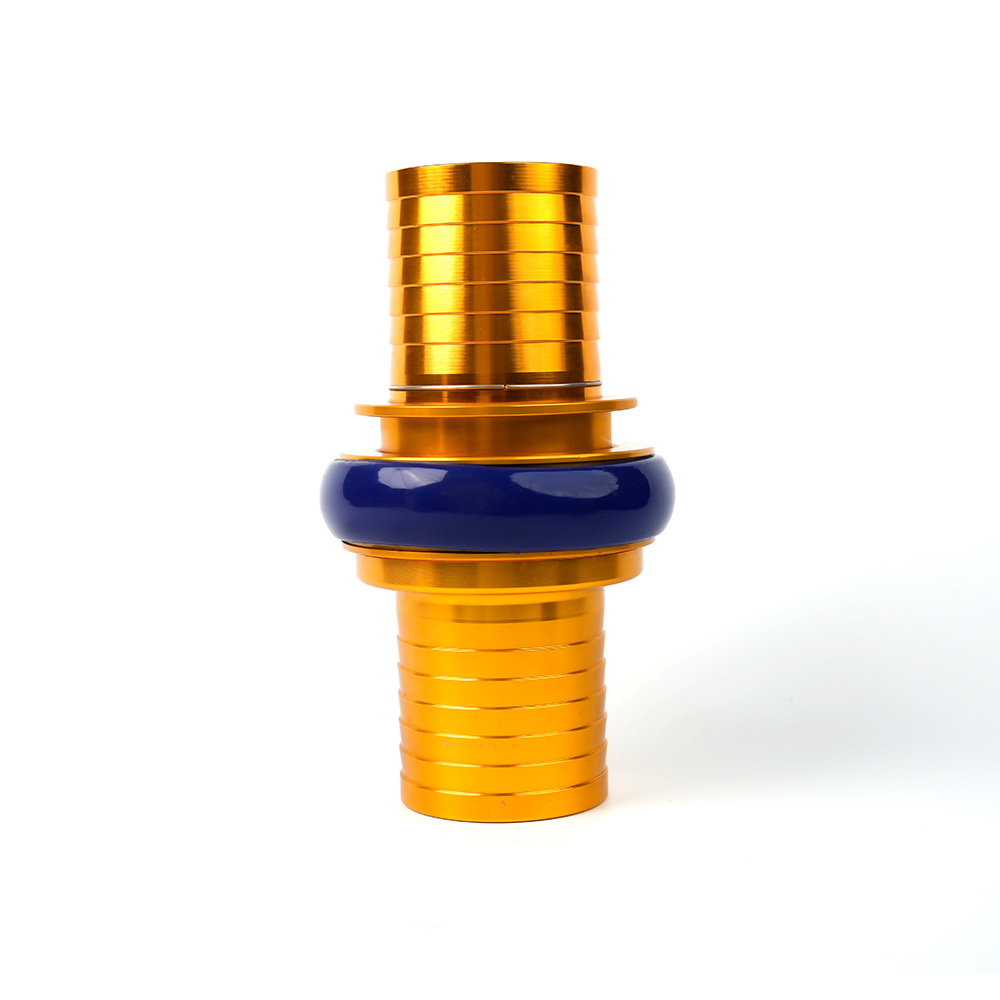

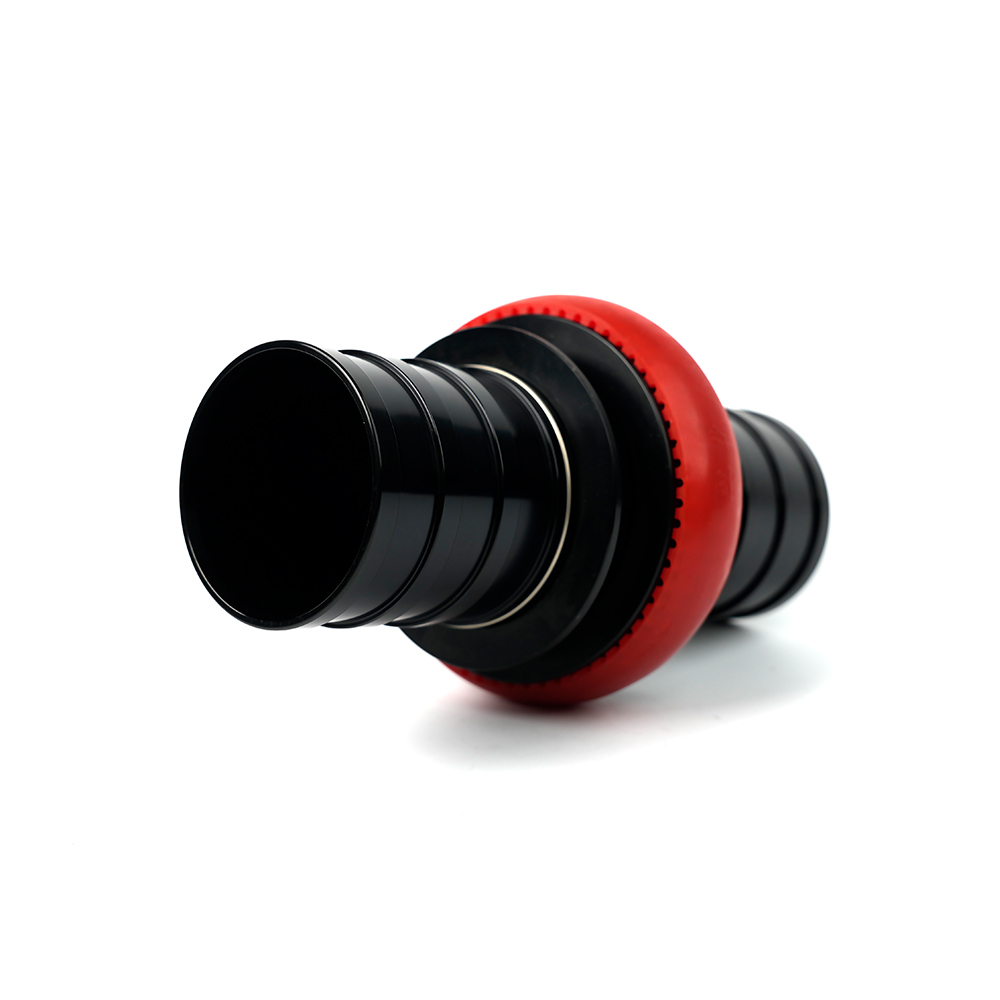

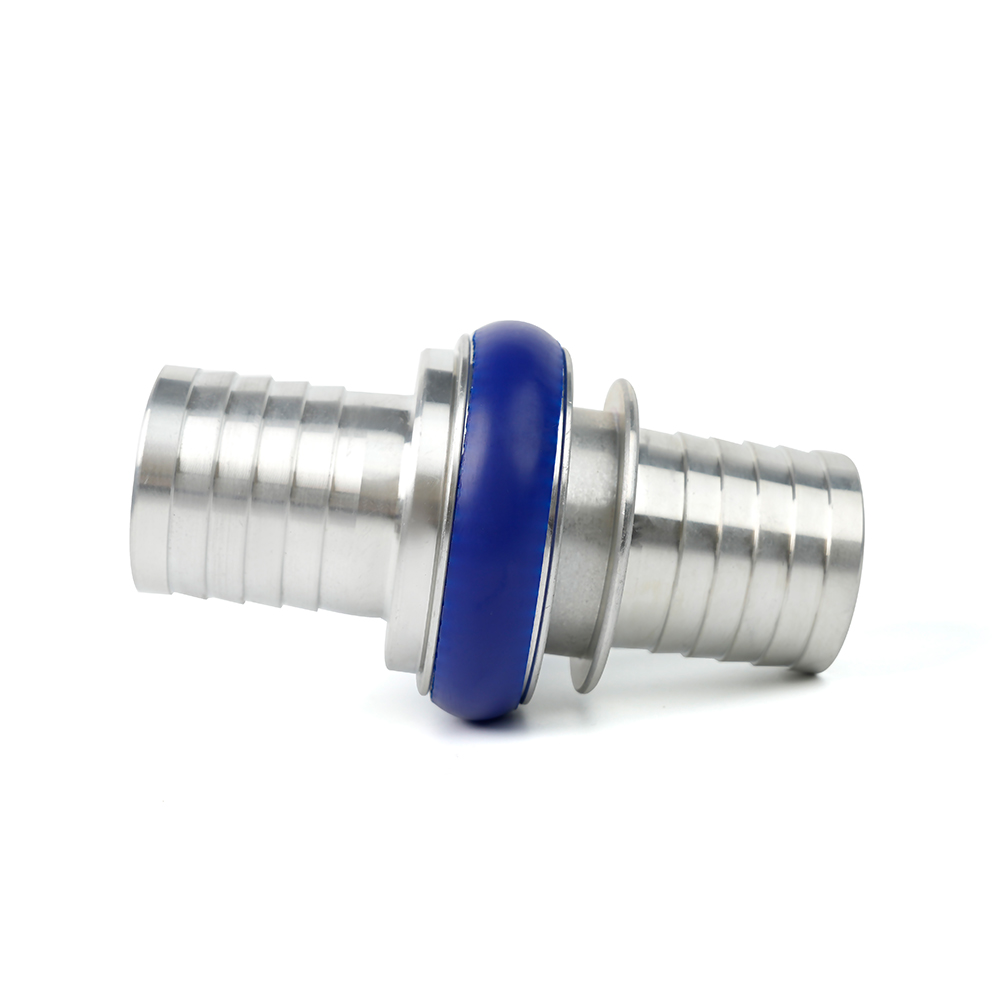

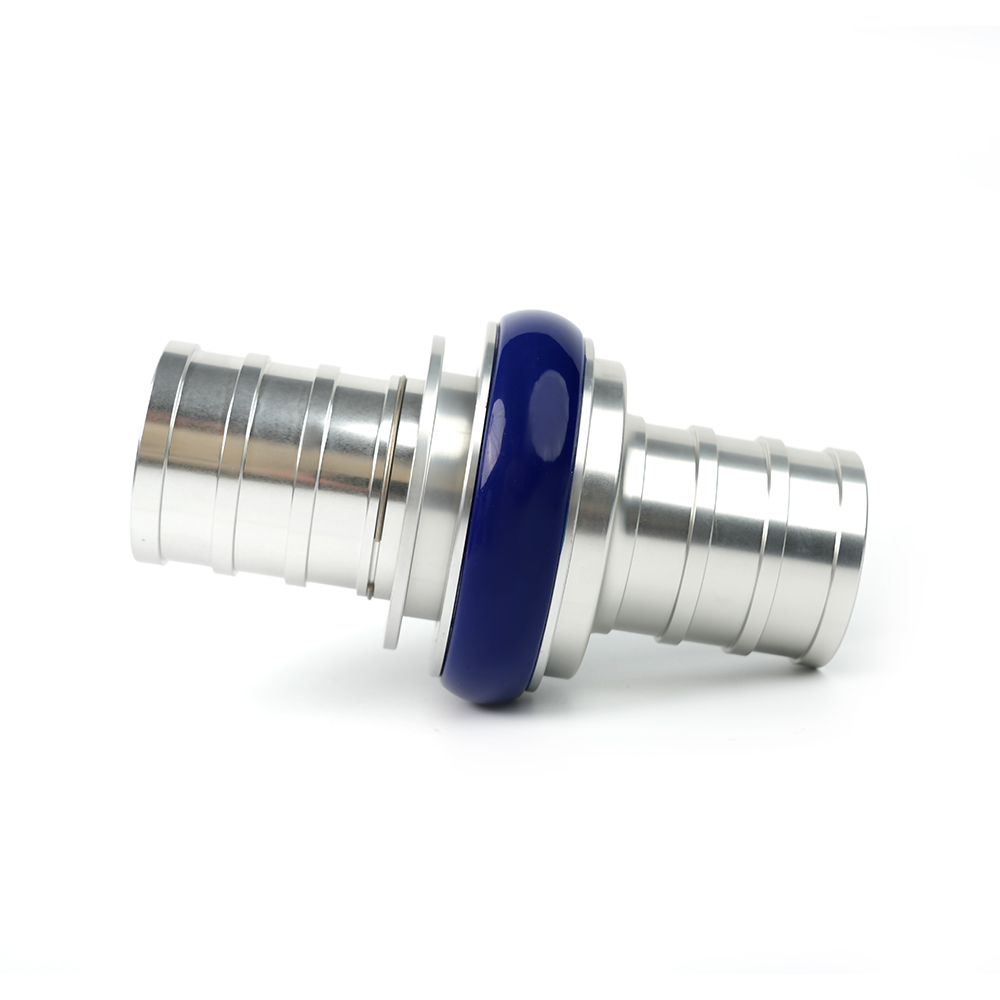

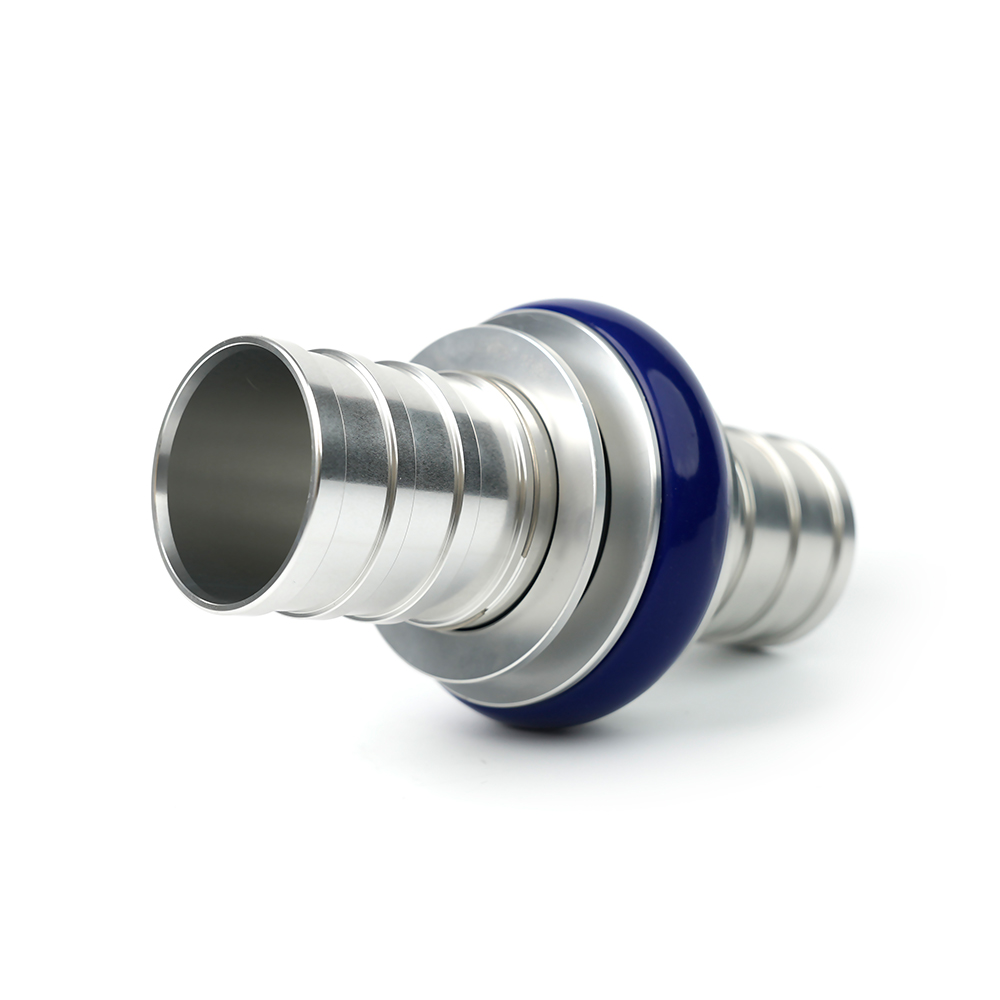

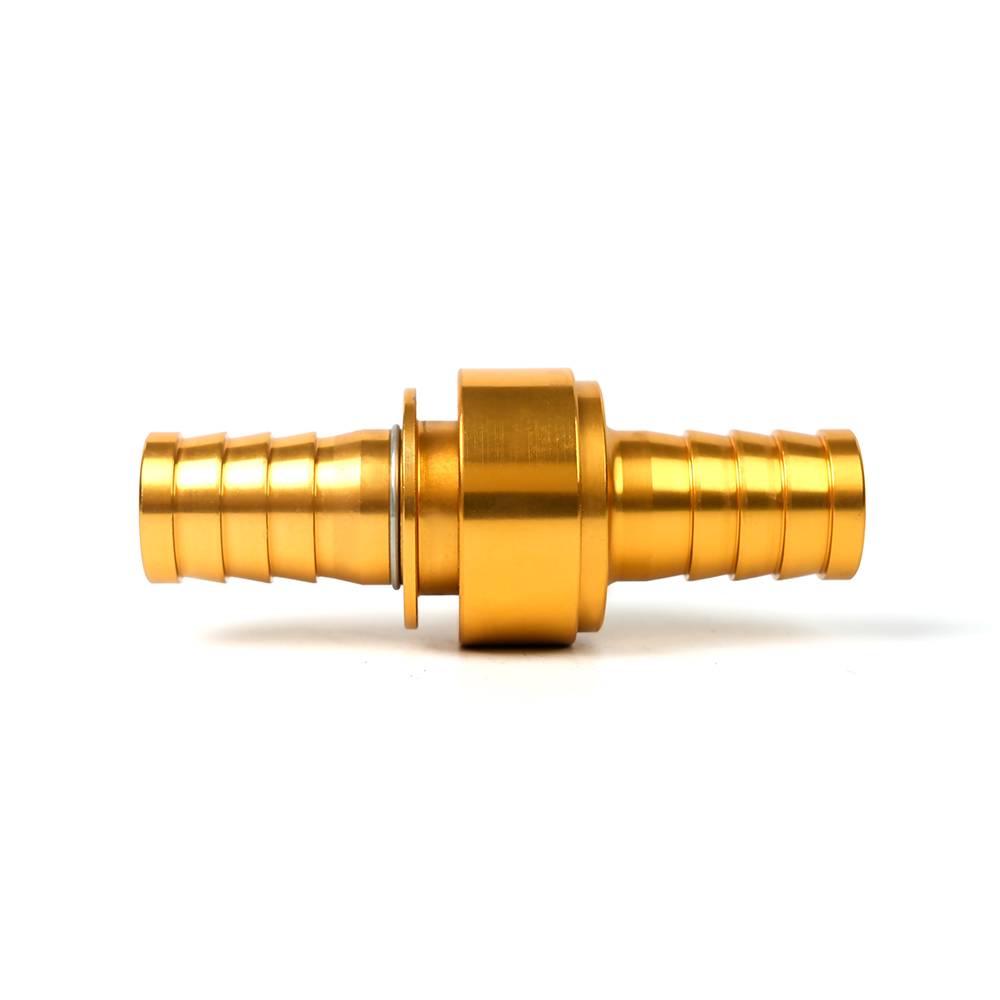

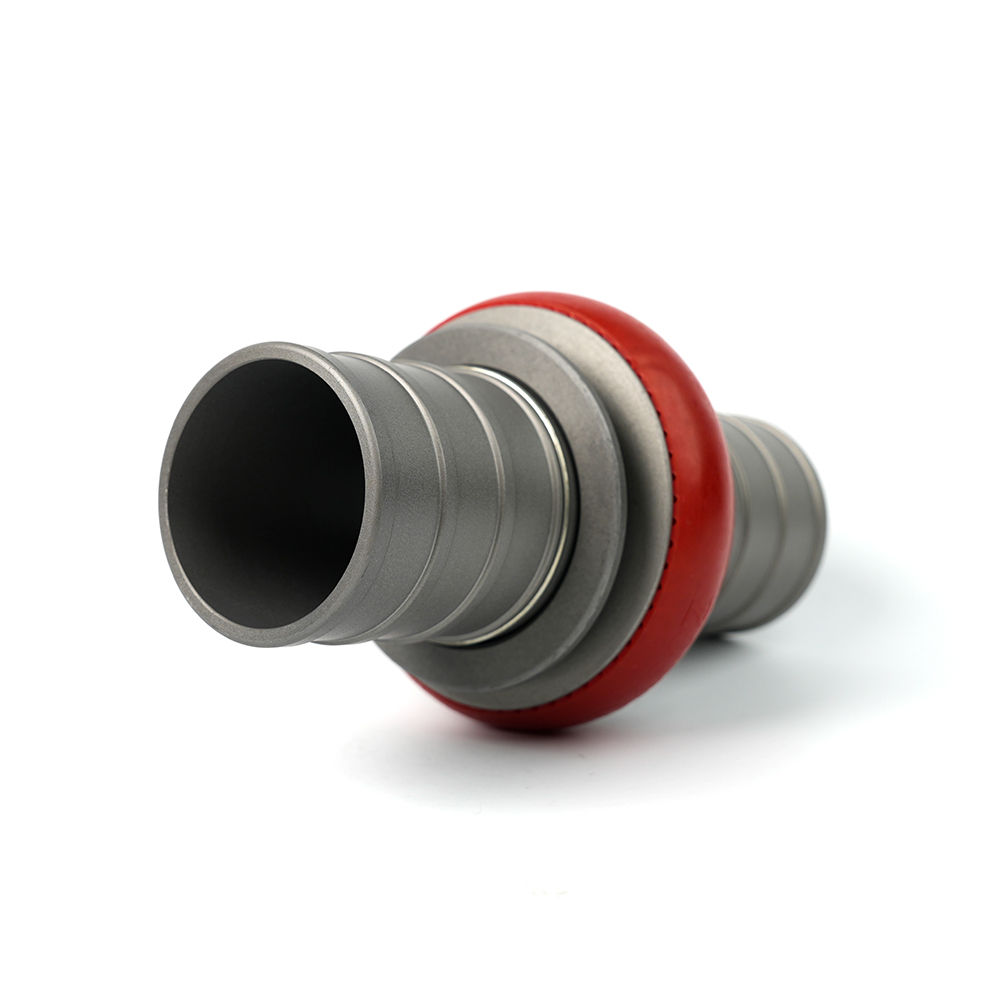

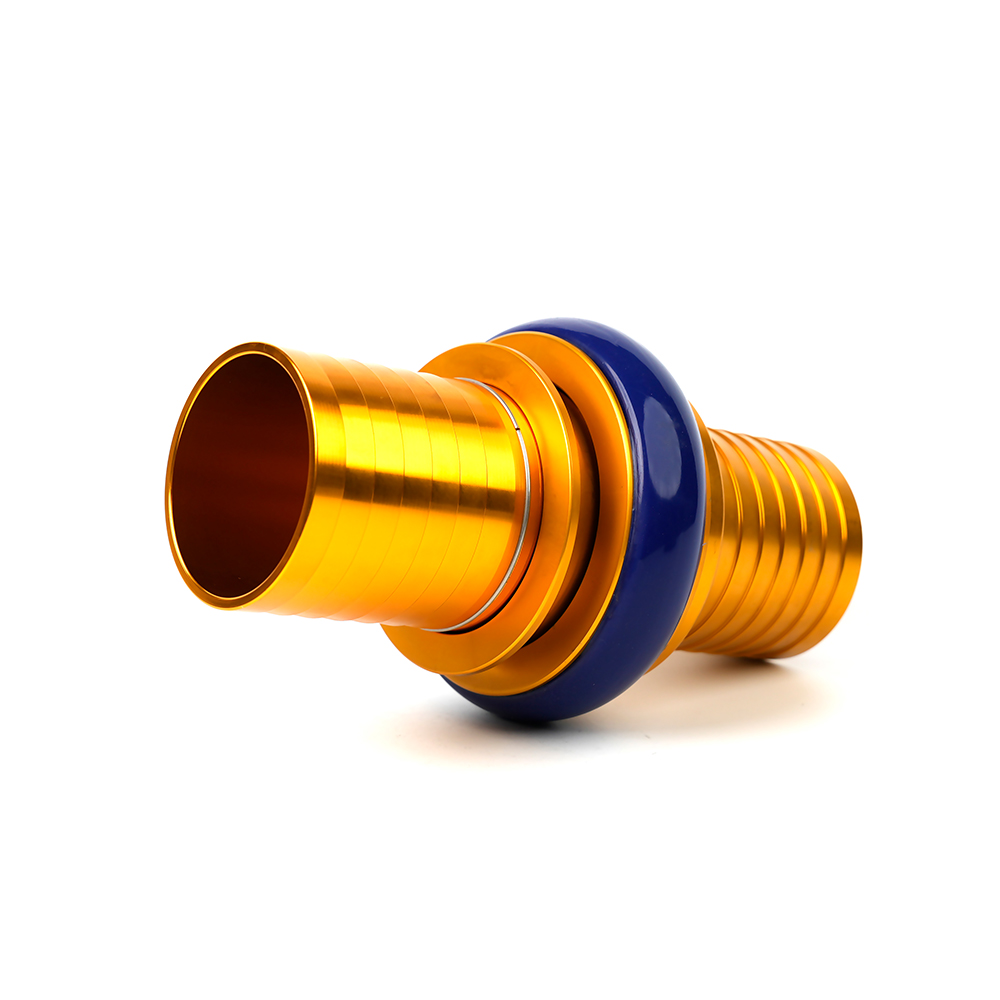

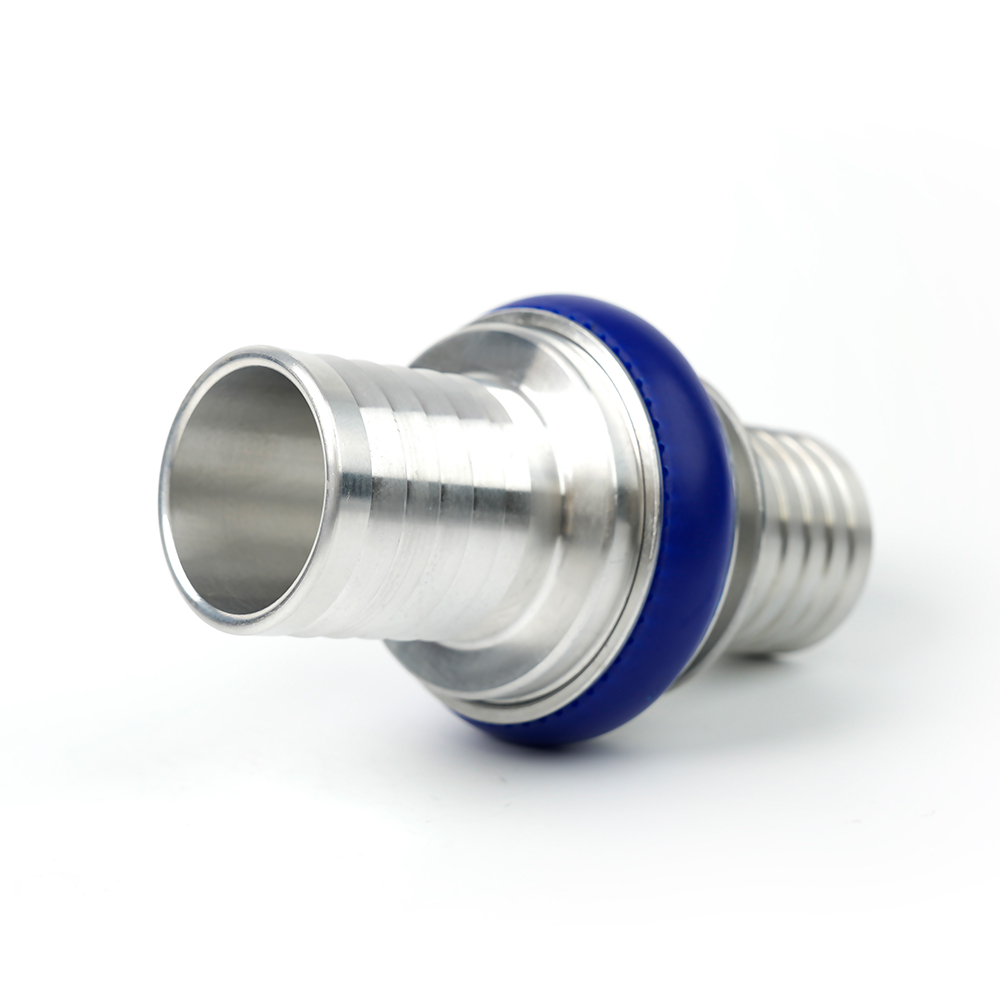

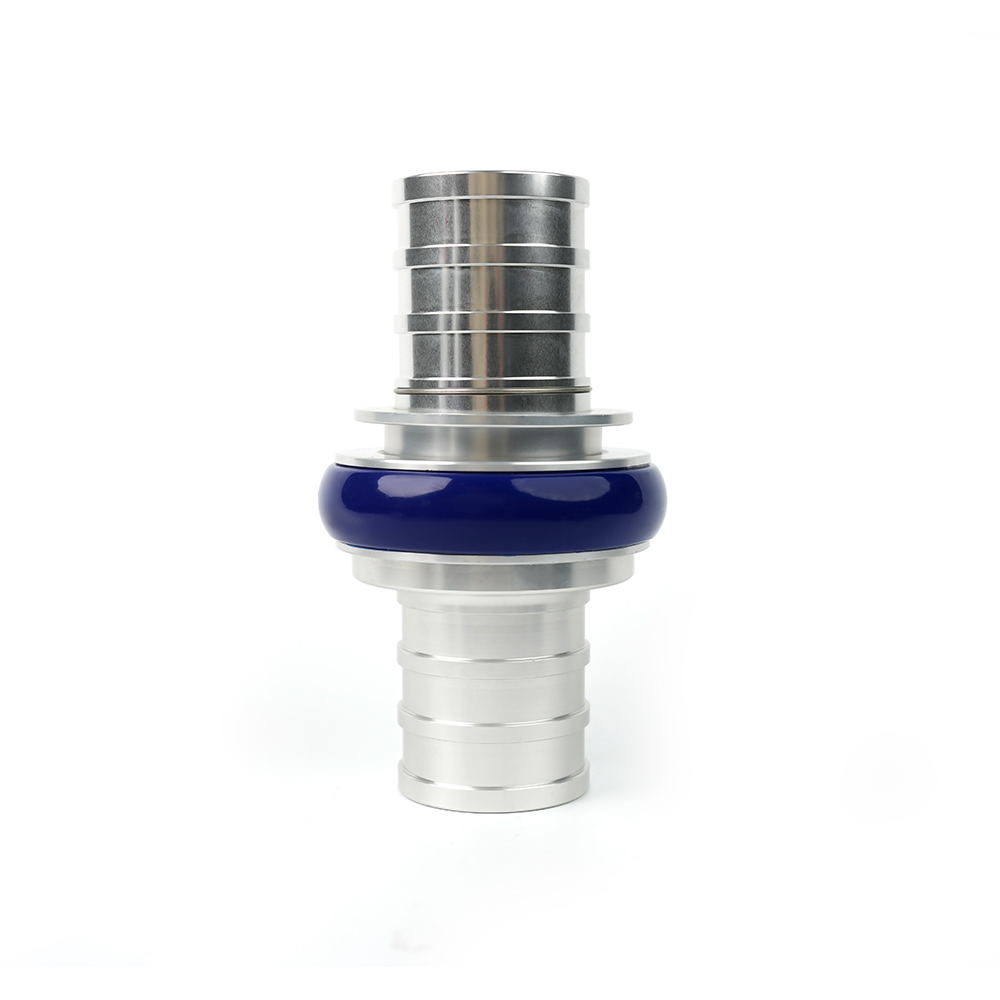

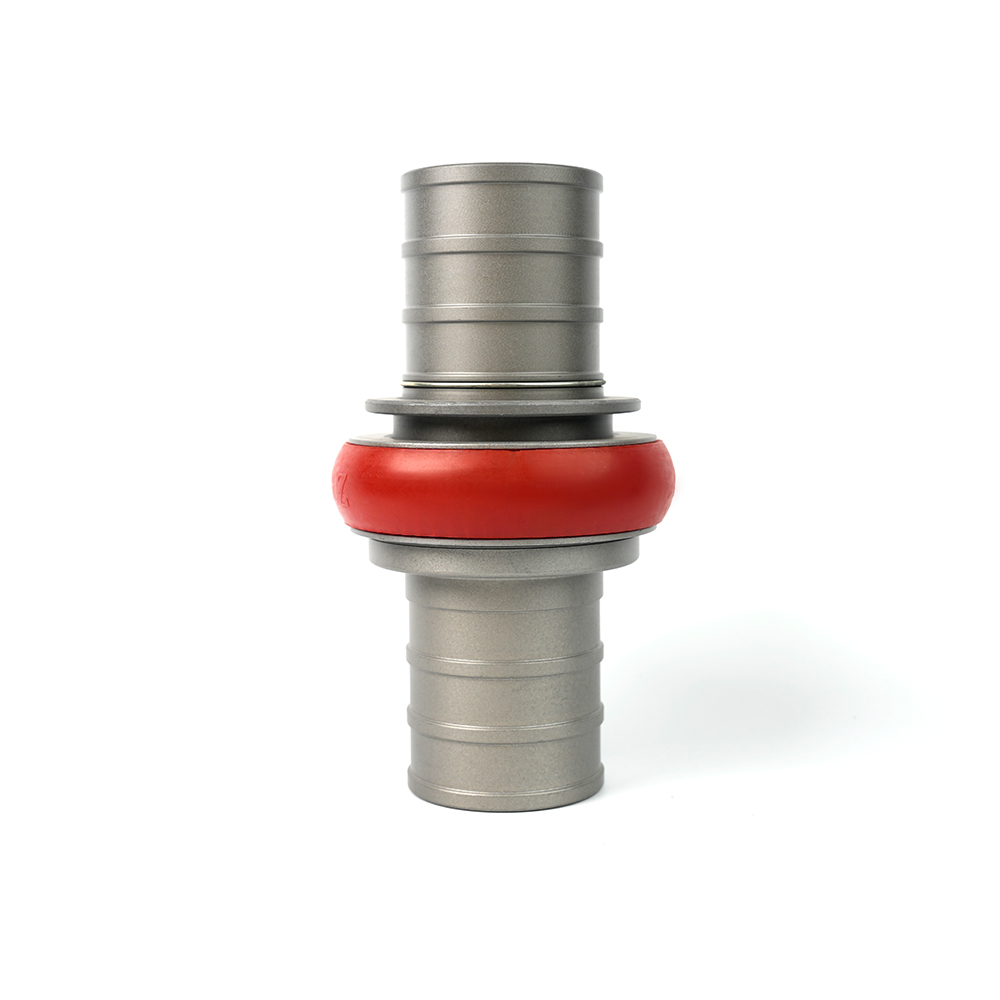

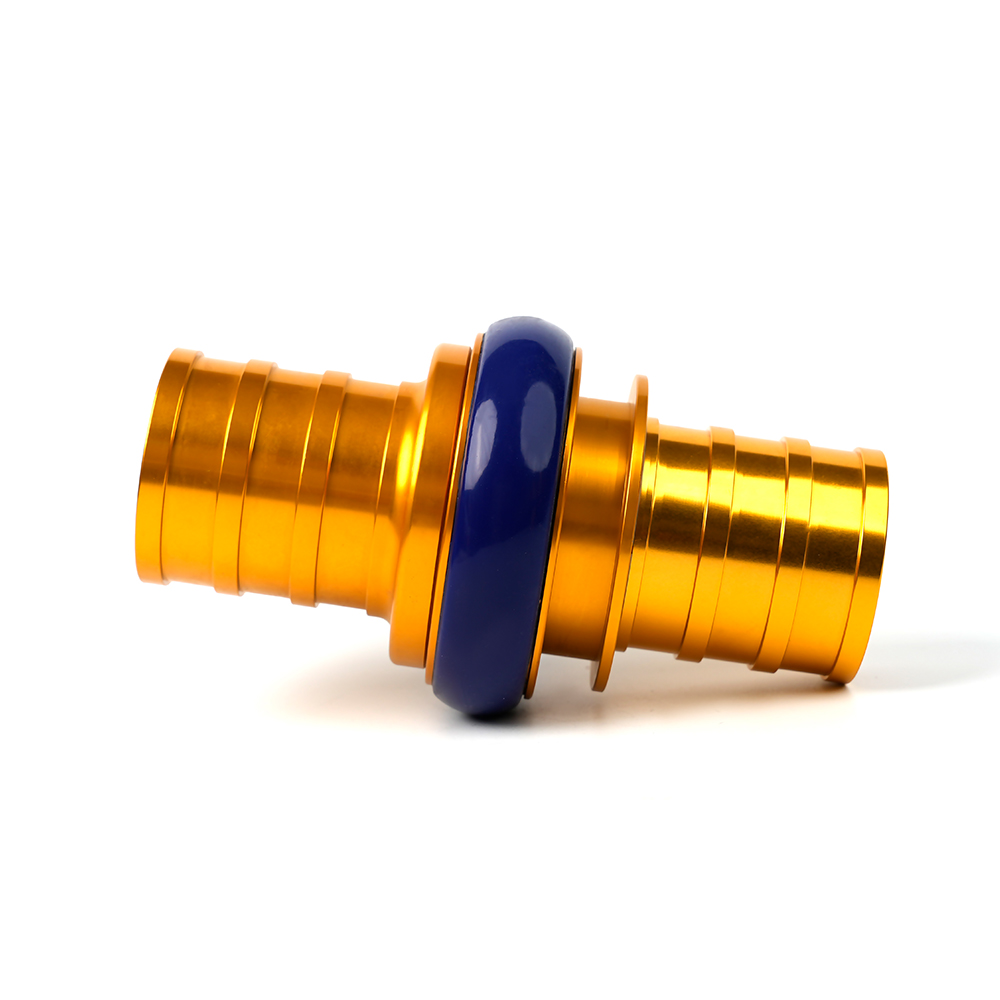

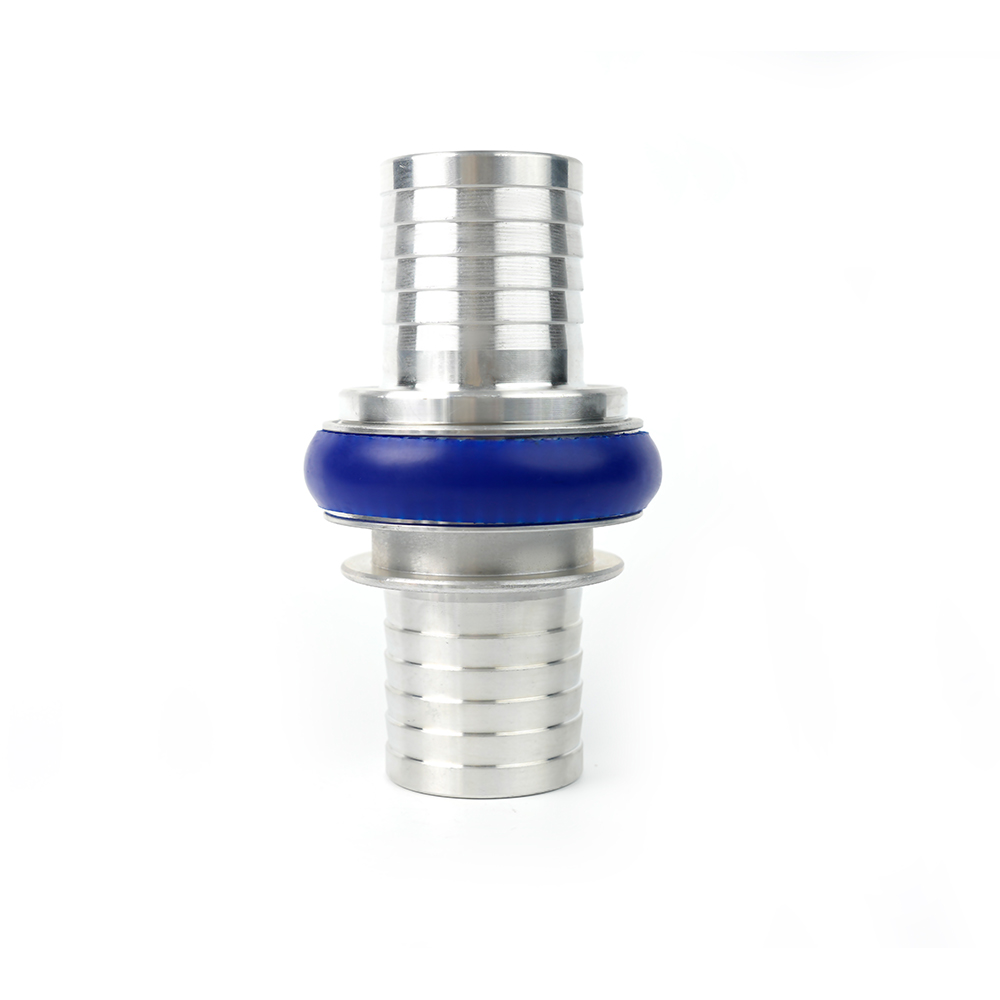

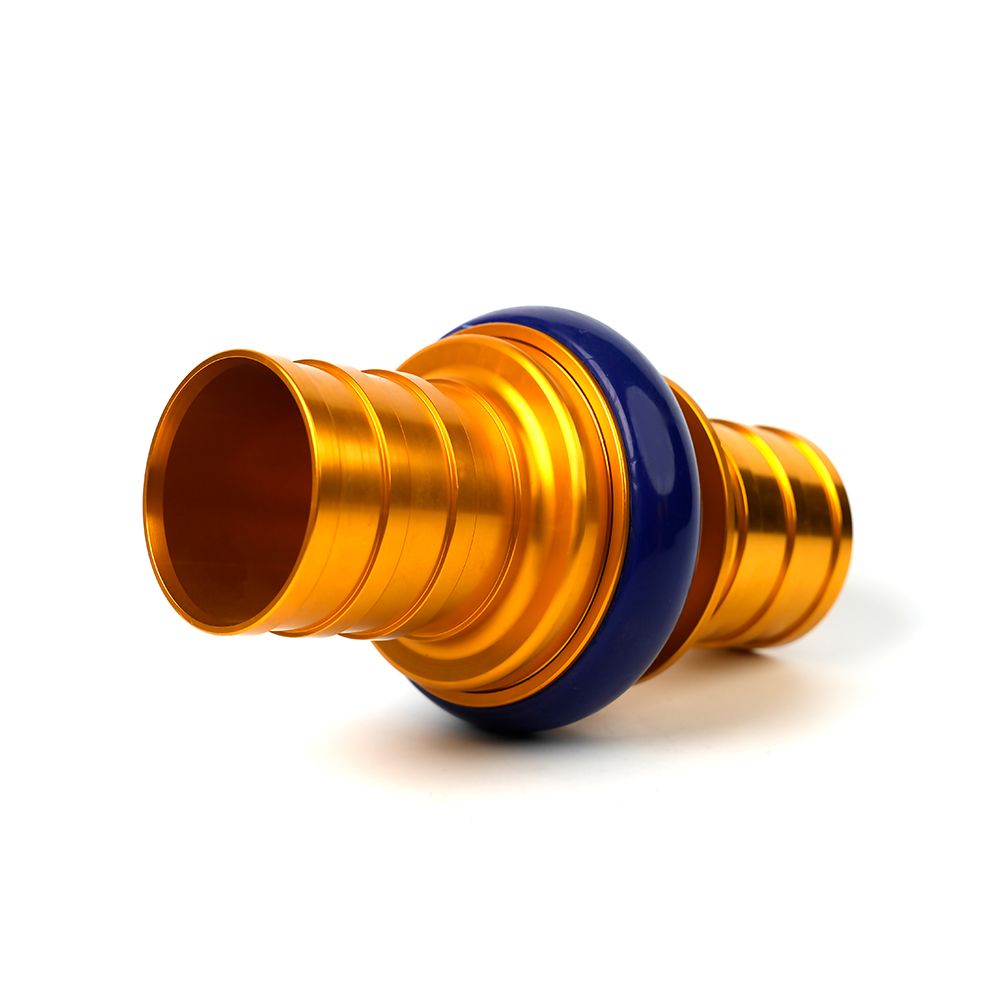

Machino fire hose coupling can be classified into 2 types based on the shape of the tailpipe:
1. Serrated tail ends type: When connected to the hose, the hose is placed over the outer side of the tailpipe and connected using an aluminum ring compression method.

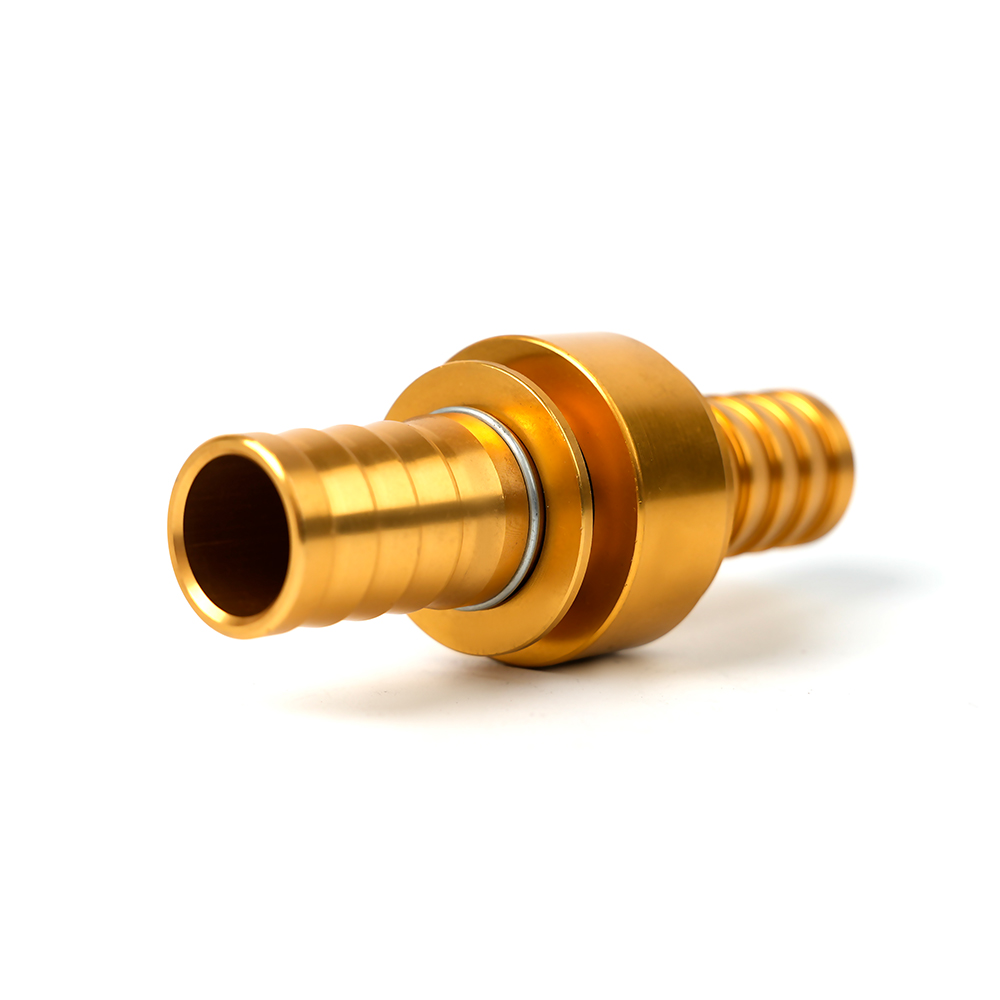

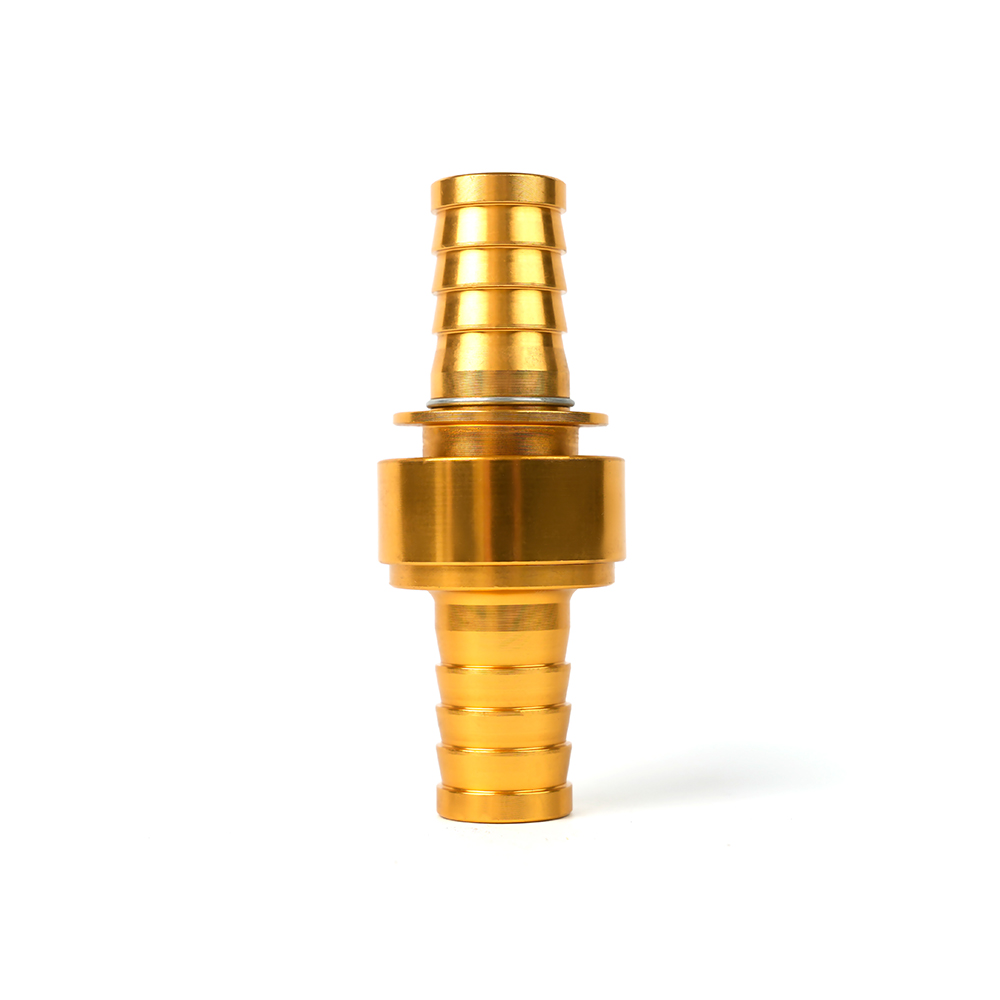

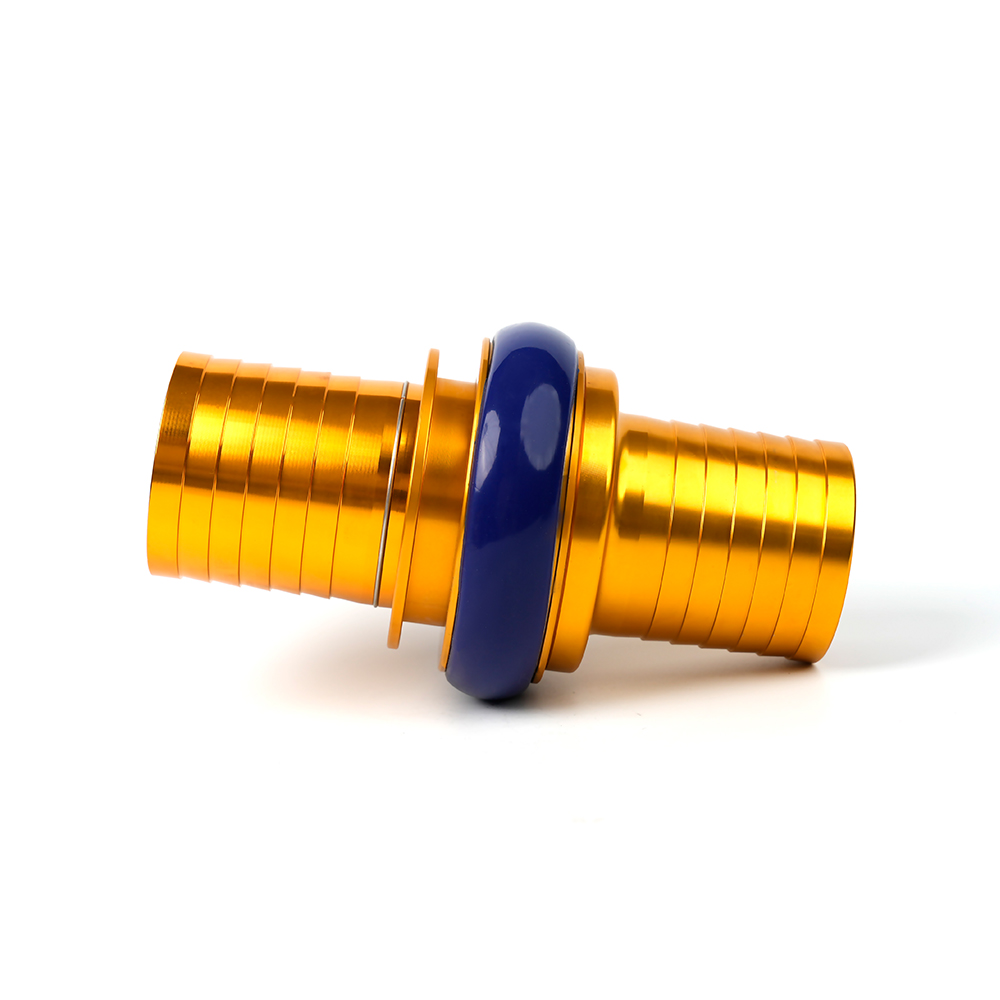

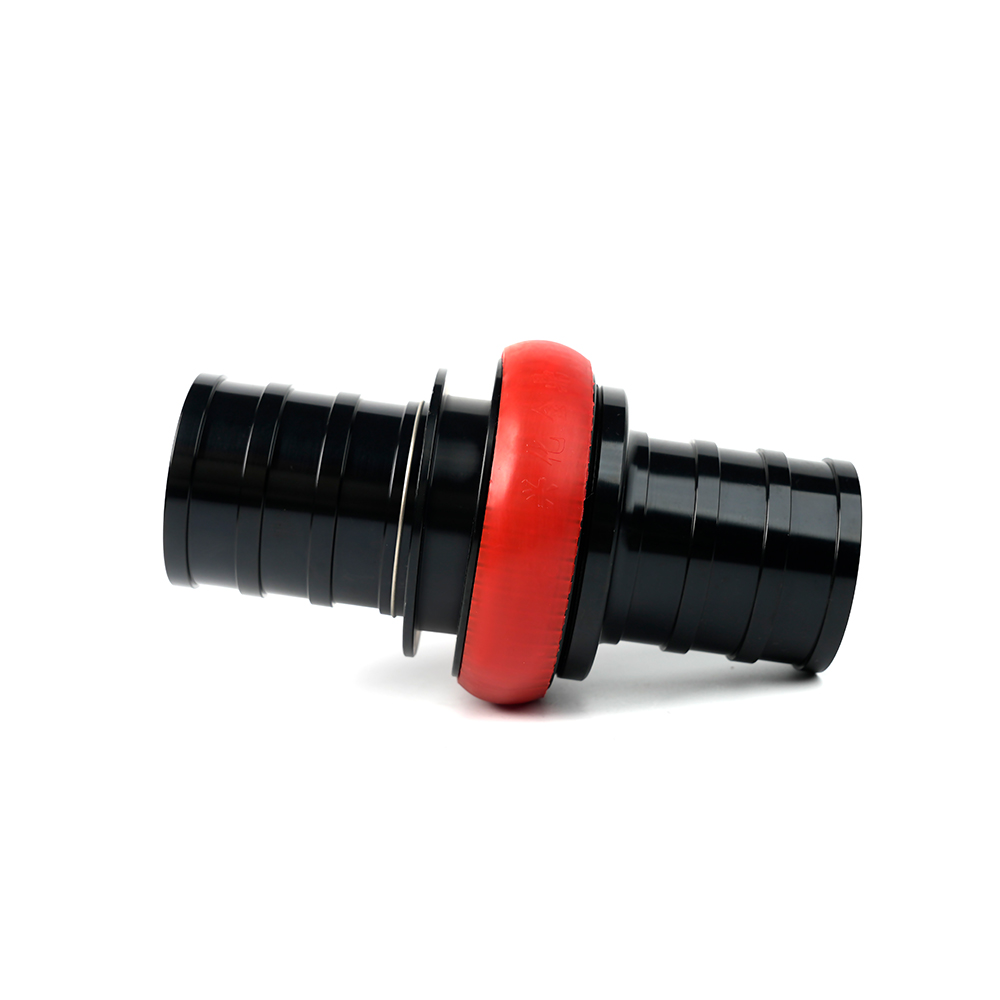

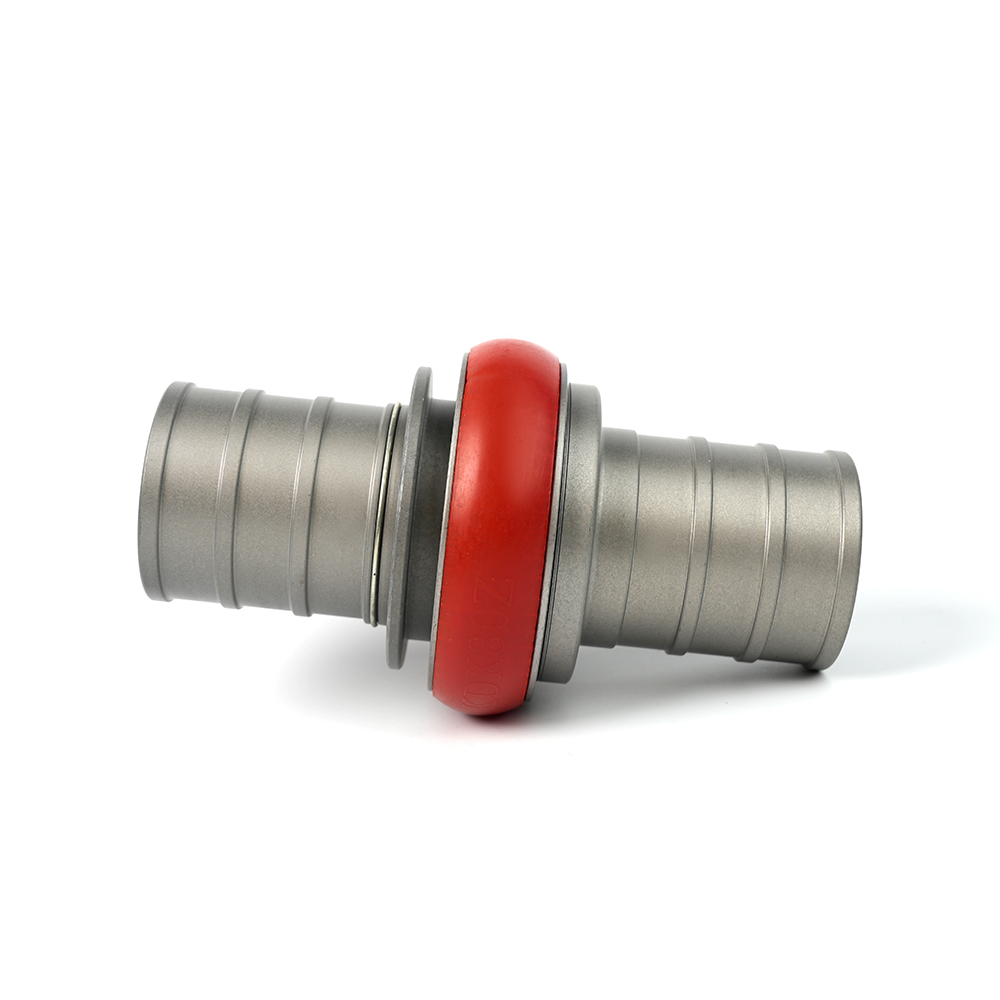

2. Ribbed tail ends type: When connected to the hose, the hose is placed over the outer side of the tailpipe and connected using a wire binding method.

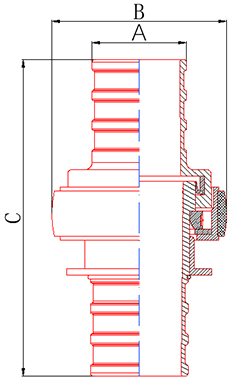

ITEM NO. |
DIN/mm |
DIA |
A/mm |
B/mm |
C/mm |
KDK |
25 |
1" |
25 |
46 |
116 |
40 |
1.5" |
38 |
73 |
126 |
|
50 |
2" |
51 |
93 |
160 |
|
65 |
2.5" |
63.5 |
114 |
209 |
|
80 |
3" |
76 |
129 |
231 |
|
90 |
3.5" |
88 |
156 |
210 |
|
100 |
4" |
101.8 |
172 |
291.5 |
* Materials and manufacturing processes can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
