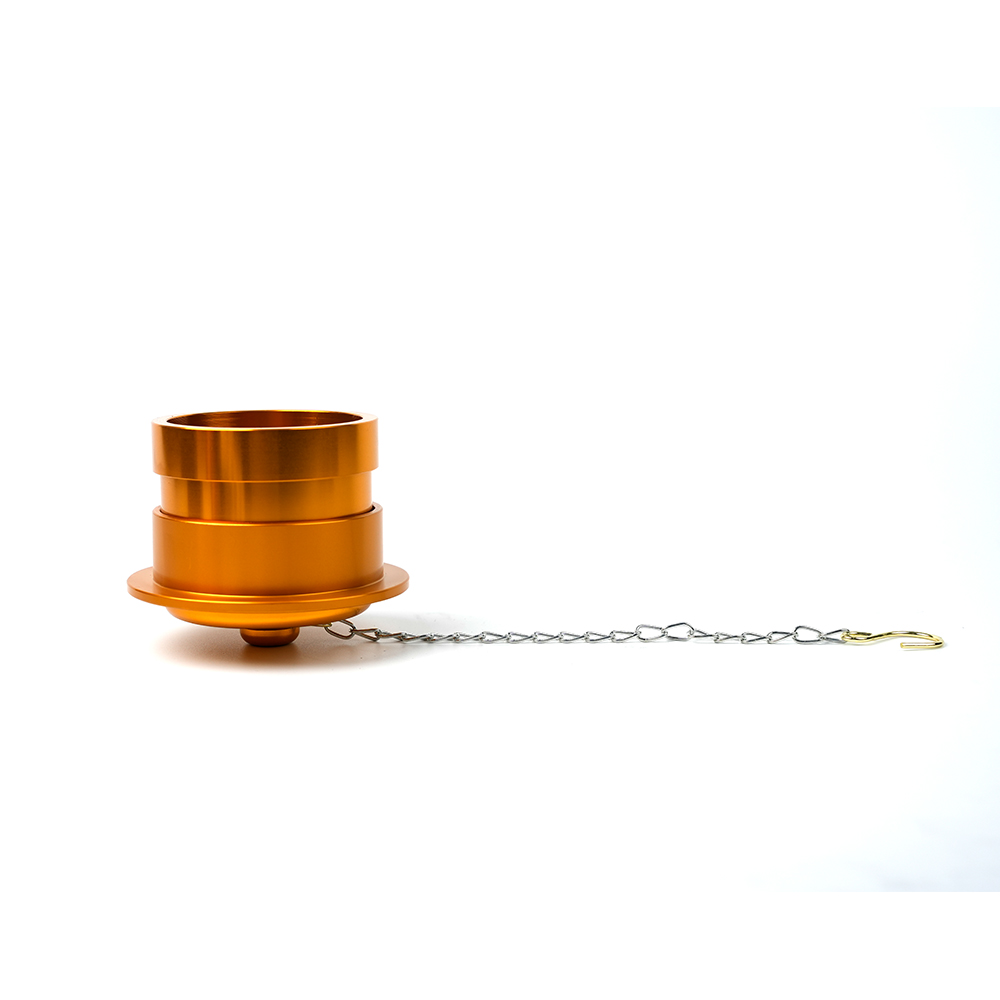

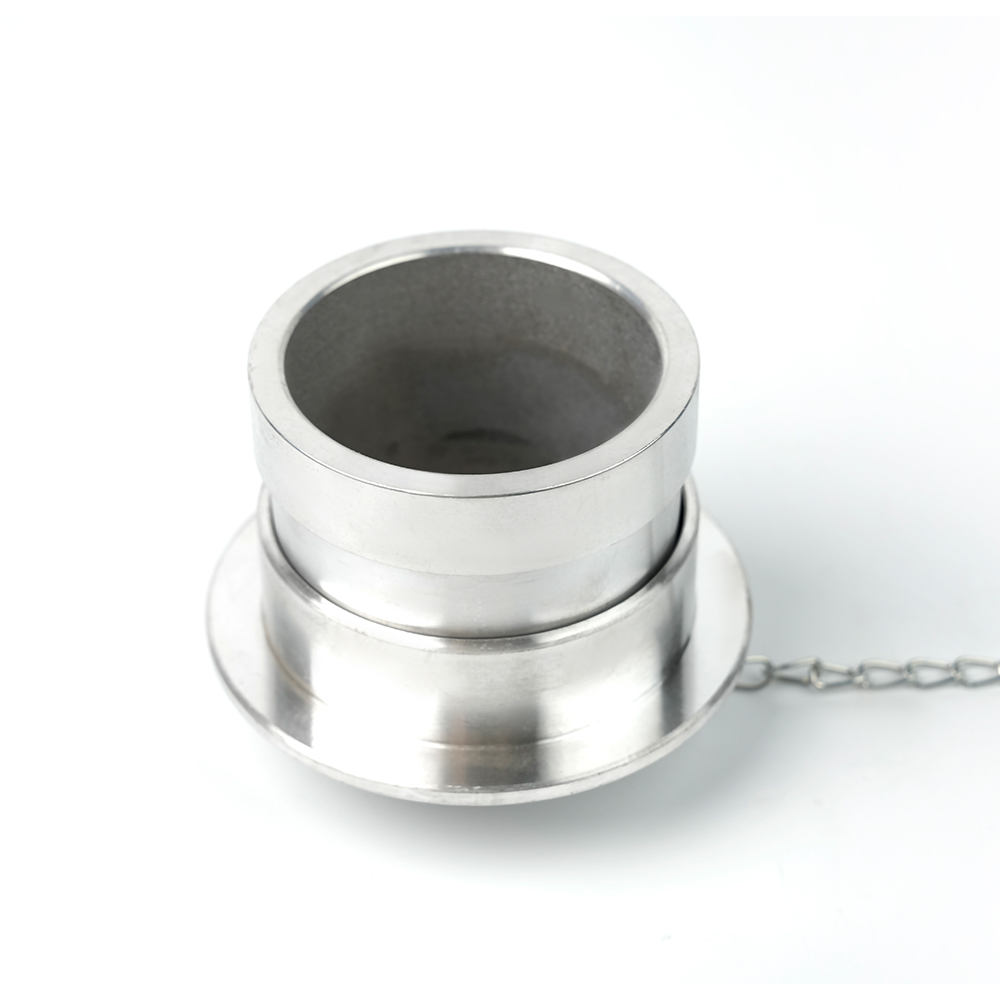

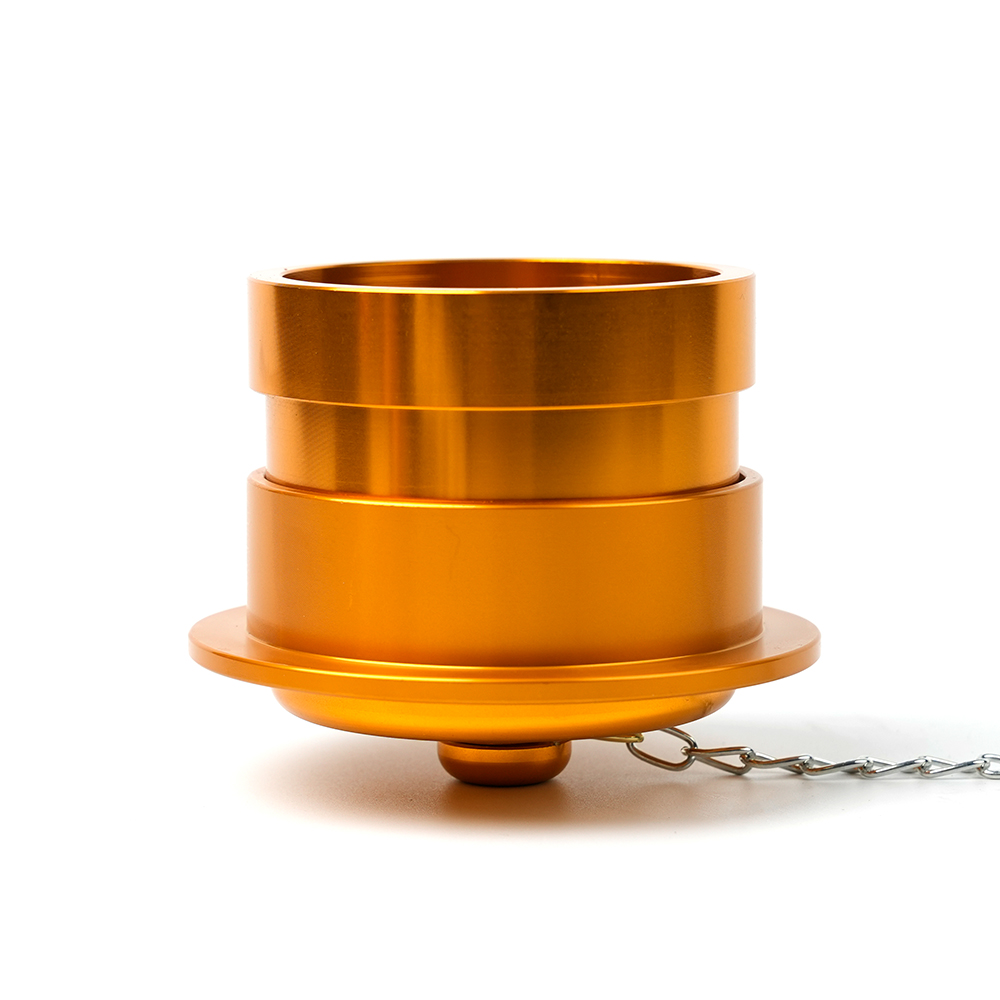

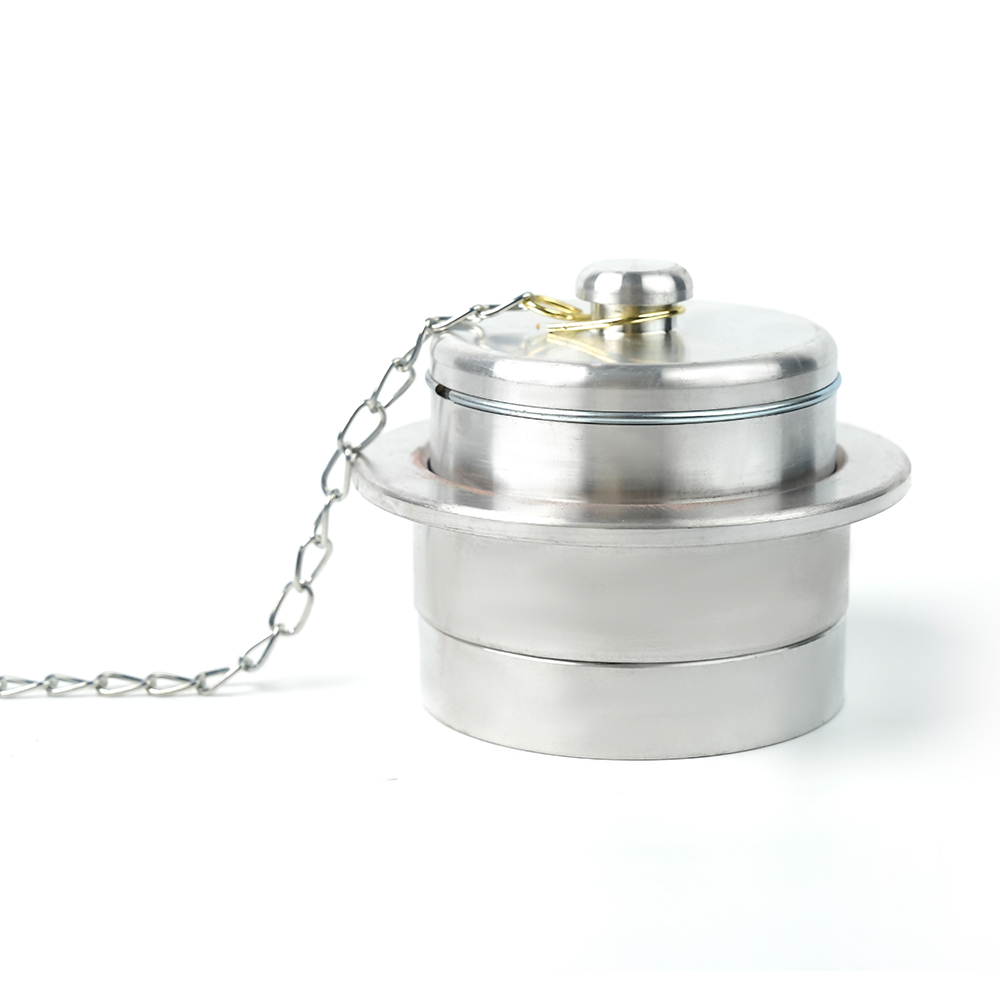

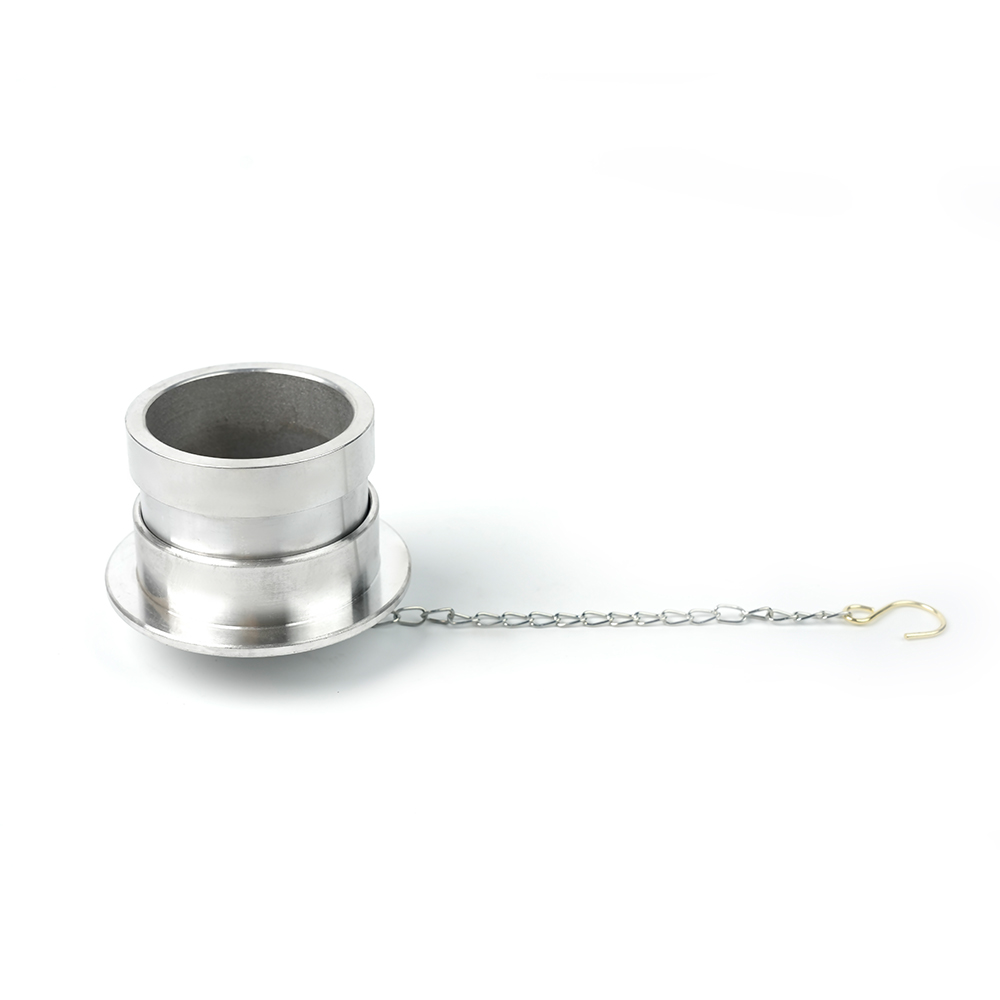

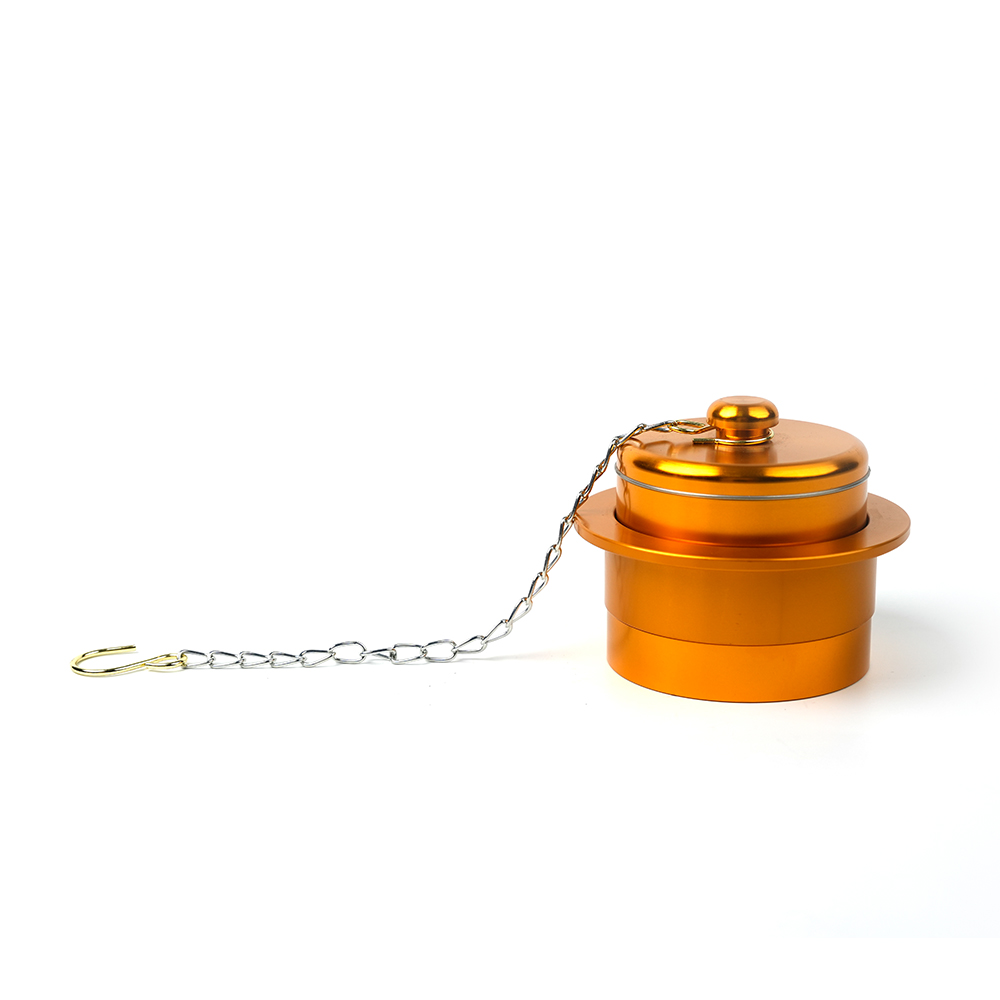

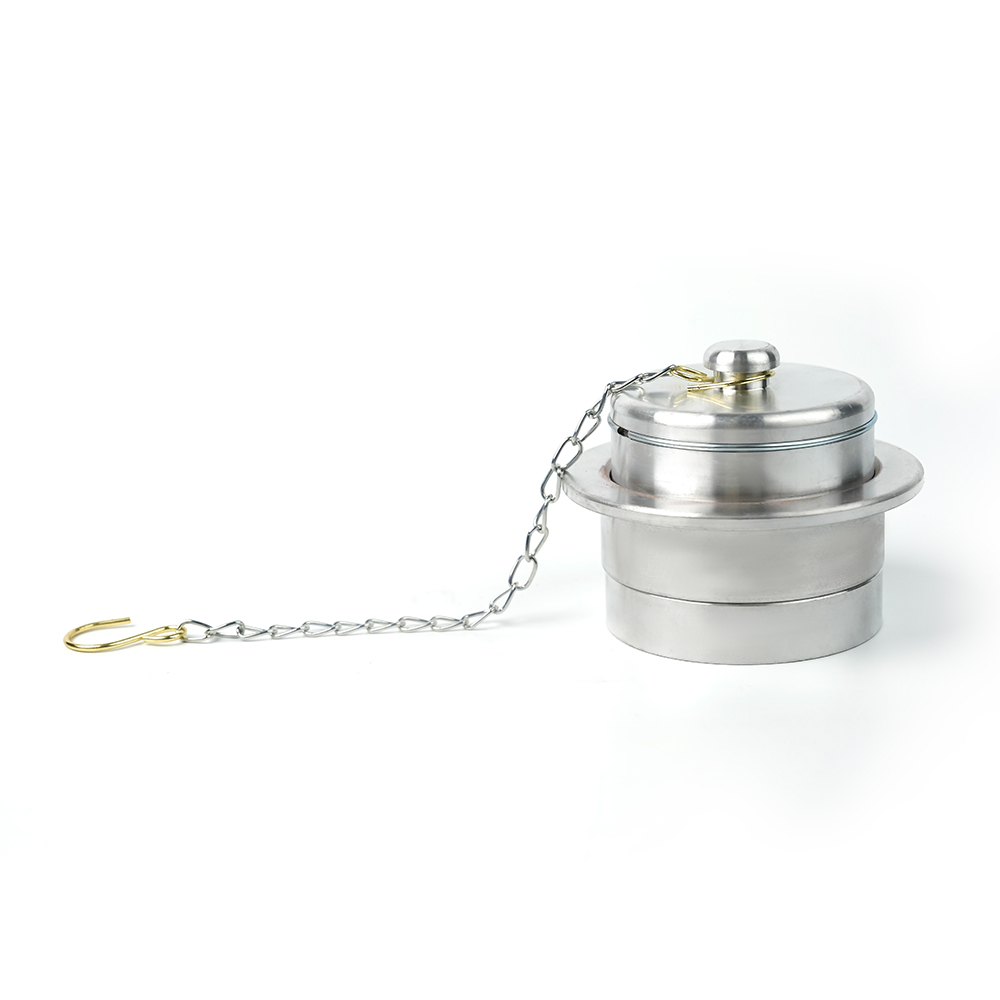

MALE MACHINO BLANK CAP is an accessory used in fire hose couplings, primarily applied to fire water source equipment. Its purpose is to seal the connection and prevent contamination or leakage caused by exposed water source interfaces.
This cap is typically used in conjunction with female machino to ensure the interface is protected when the fire hose is not connected.
|

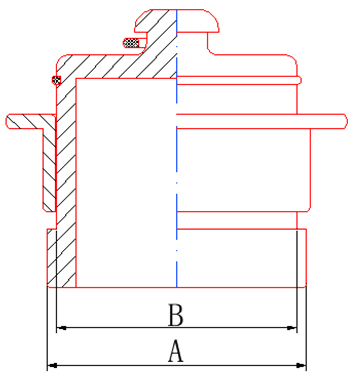

ITEM NO. |
DIN/mm |
DIA |
A/mm |
B/mm |
|
KMK |
25 |
1" |
29 |
26 |
|
40 |
1.5" |
43.6 |
39 |
|
|
50 |
2" |
55.6 |
51 |
|
|
65 |
2.5" |
68.5 |
63.5 |
|
|
80 |
3" |
81.5 |
76.2 |
|
|
100 |
4" |
108 |
101.8 |
* Materials and manufacturing processes can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
