VIC Coupling

VIC Coupling

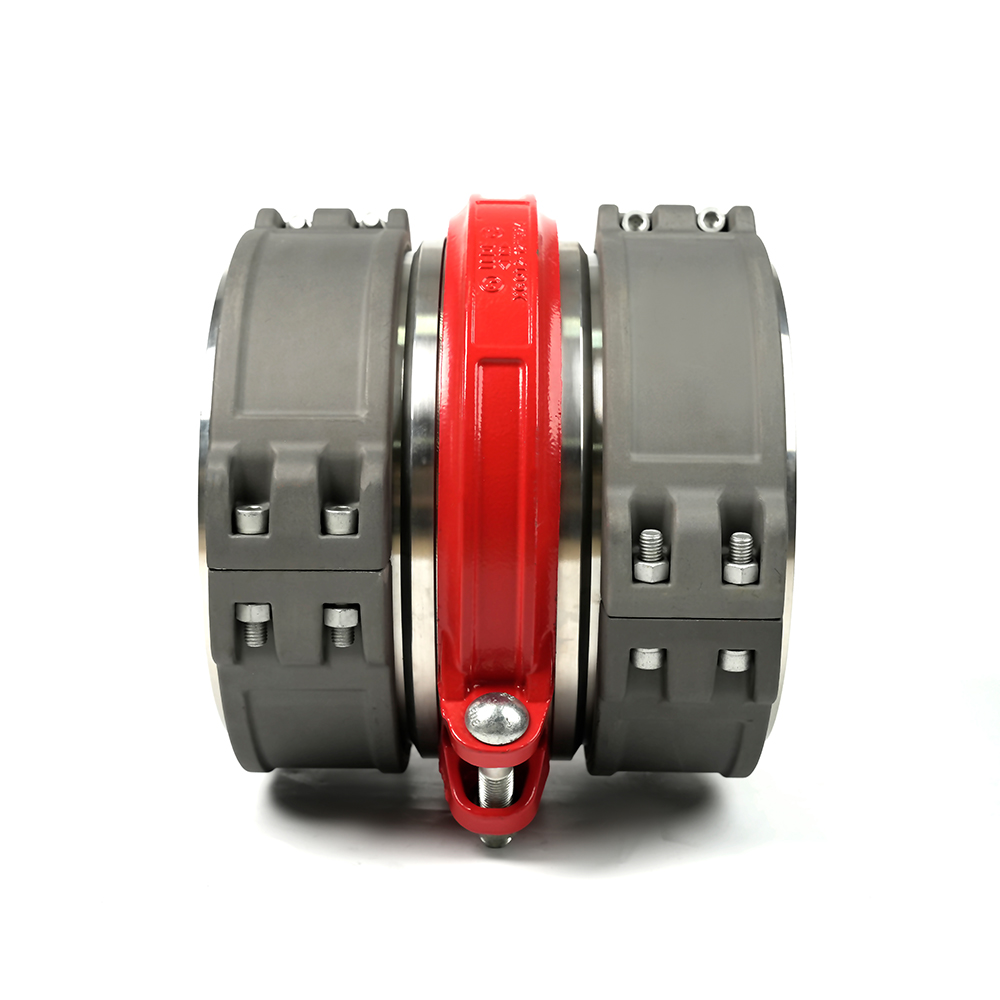

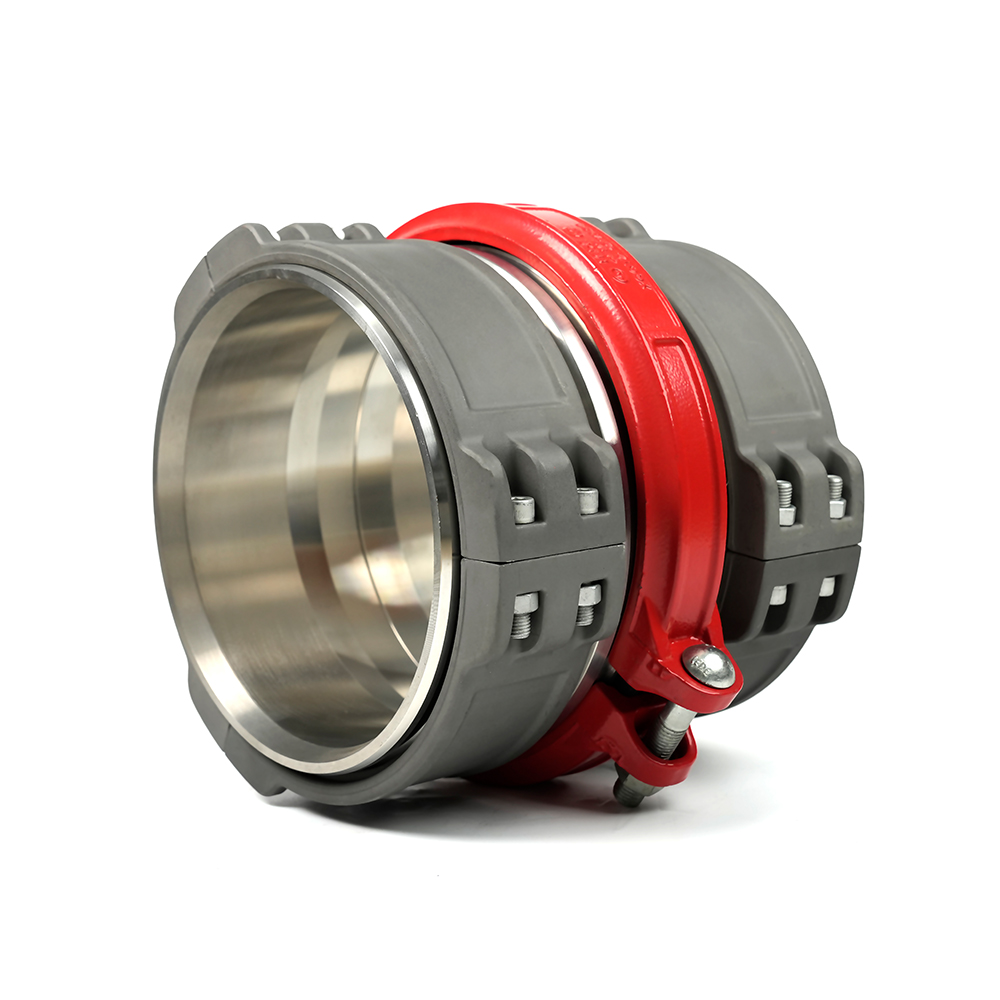

The VIC Grooved Firefighting Coupling is a mechanical connection technology widely used in firefighting systems. Its core feature is the groove structure combined with clamp components, which enable quick and reliable pipeline connections.
Building on easy installation, the coupling also incorporates a triple-seal design (mechanical locking + elastic sealing + pressure self-tigh10ing) to ensure leak-proof performance. This makes it particularly suitable for high-pressure and vibration-prone environments, ensuring the reliability and efficiency of firefighting operations.

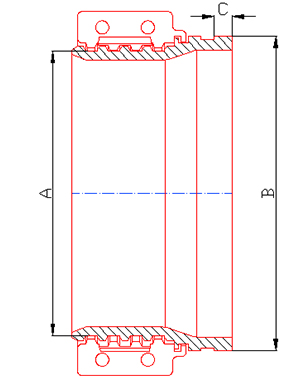

Dimensions Resources

ITEM NO.

DIN/mm

DIA

A/mm

B/mm

C/mm

MPa

Material

Manufacturing

80

3"

74.8

88.9

16

2.5Mpa

(Z)

Aluminum alloy

Customized is available

Precision casting

Forging processes

100

4"

100

114.3/108

16

125

5"

126.5

139.7

16

150

6"

152

165.1/168.3

16

200

8"

203

219

19

250

10"

253

273

19

300

12"

304

324

19

350

14"

355

355.6/377

24

400

16"

407

406.4/426

24

* Materials and manufacturing processes can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
