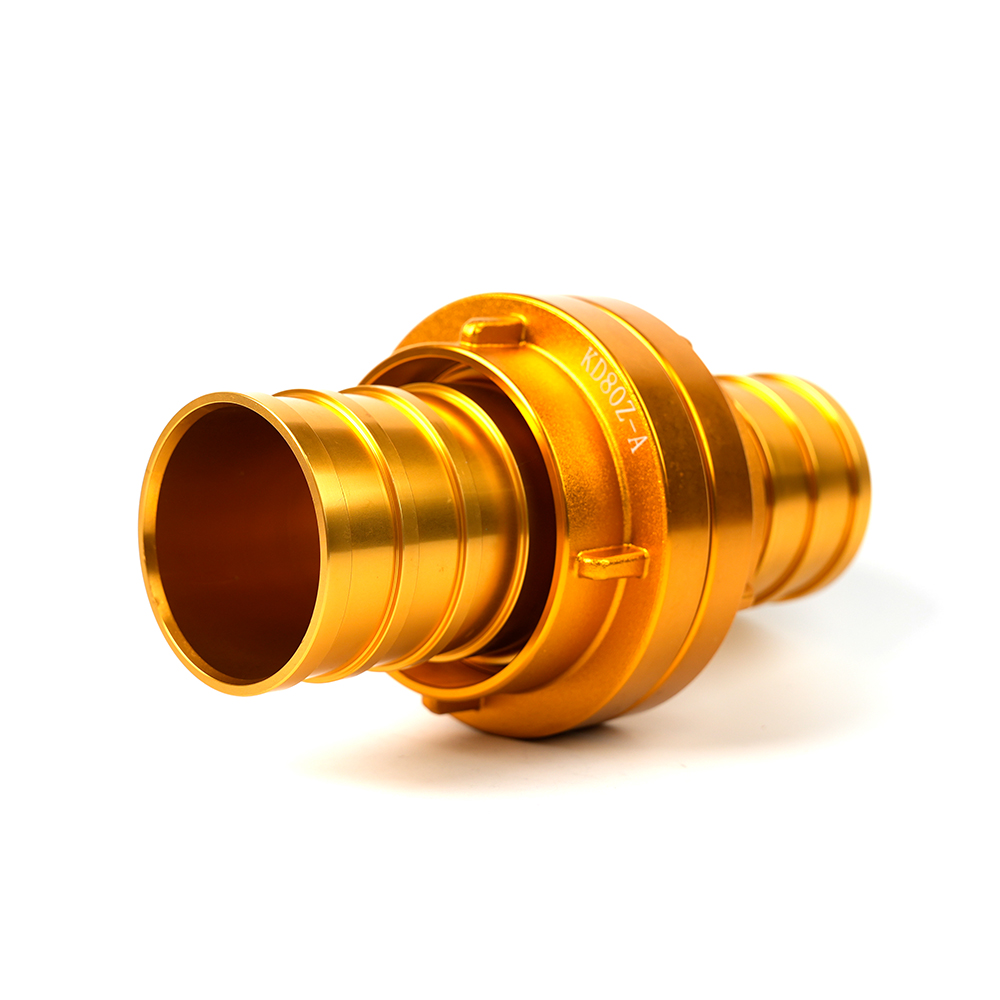

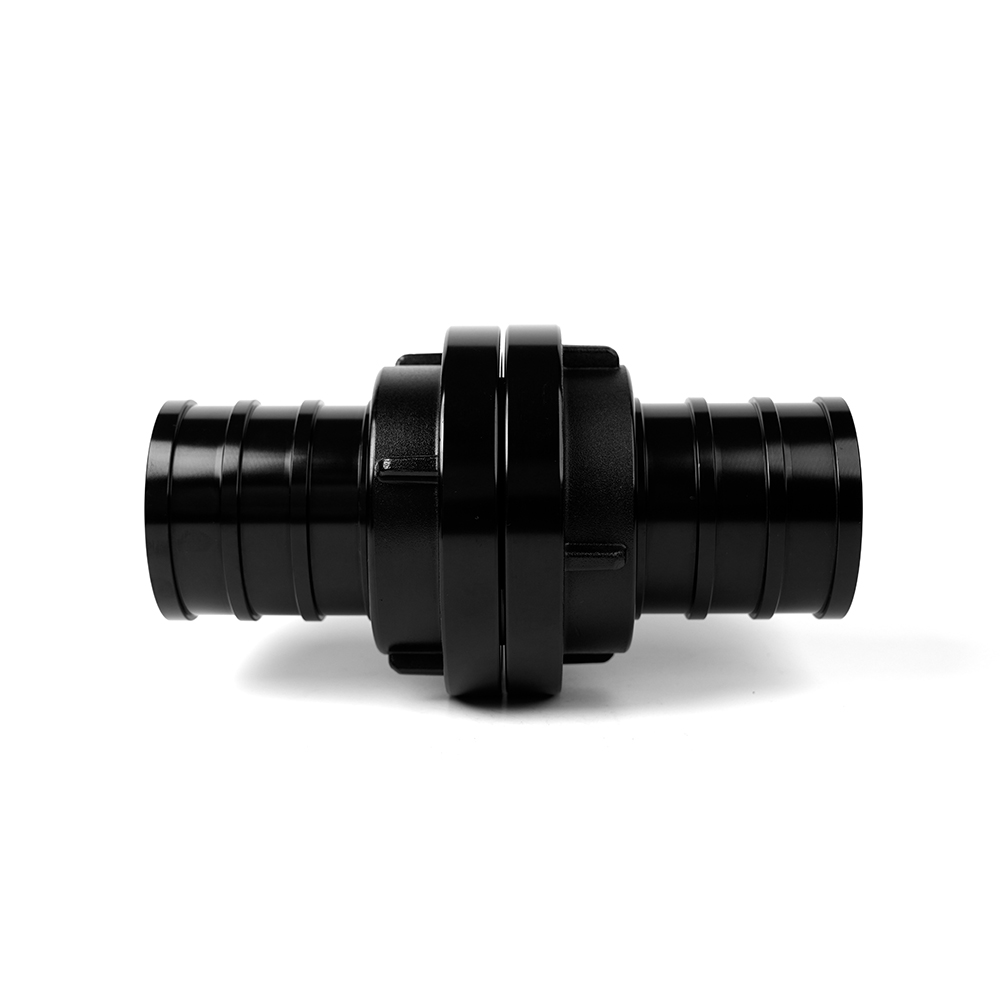

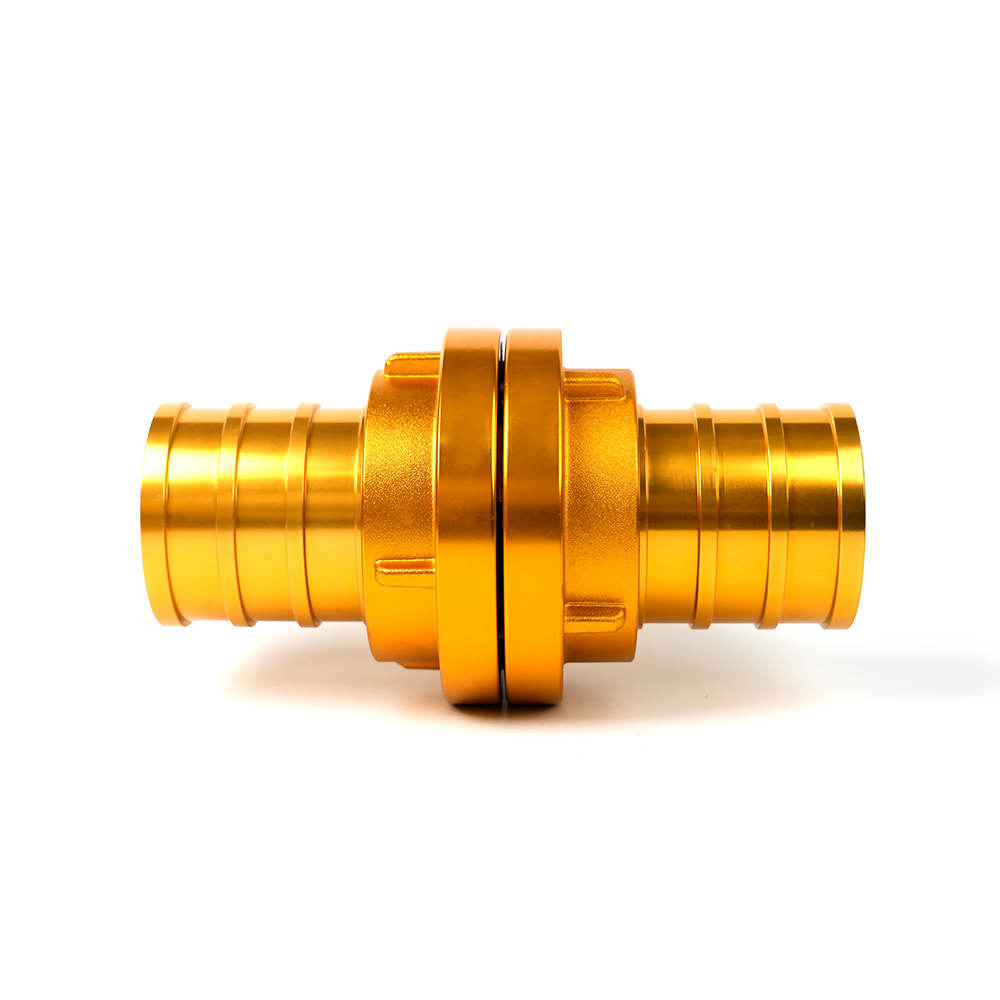

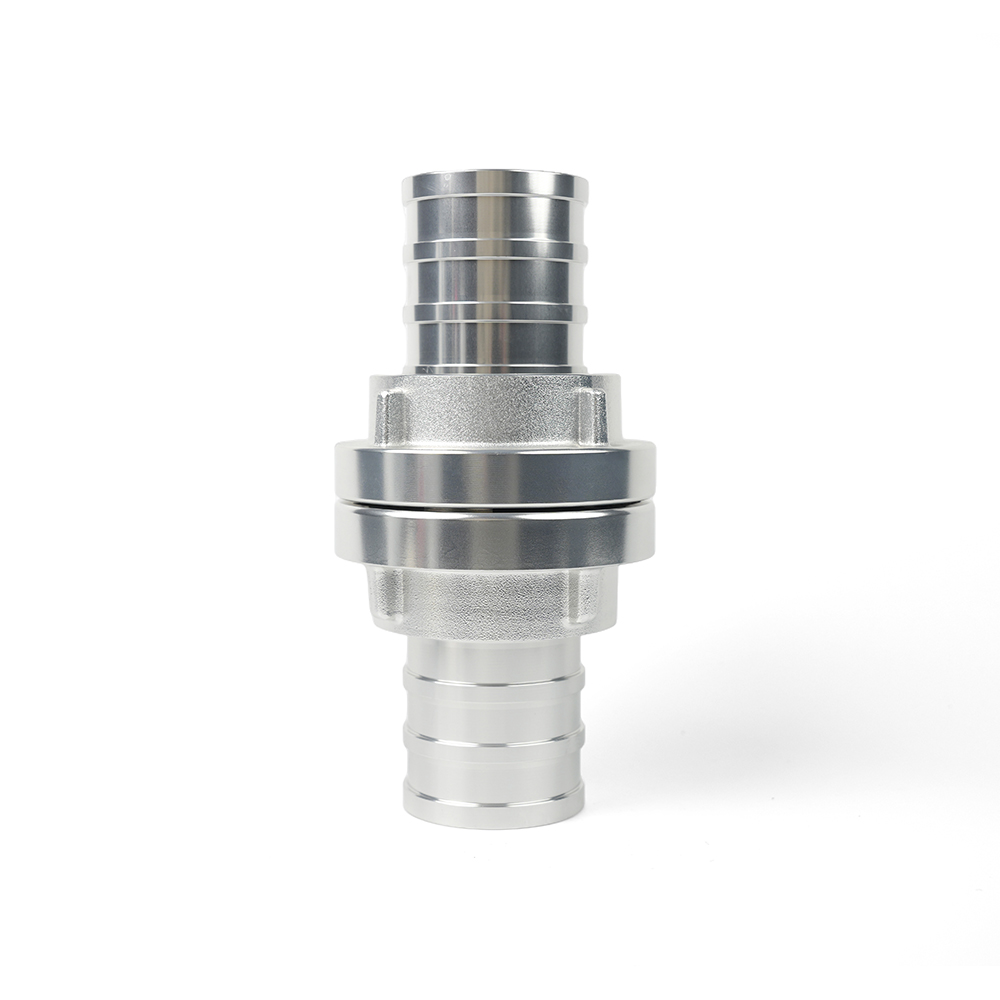

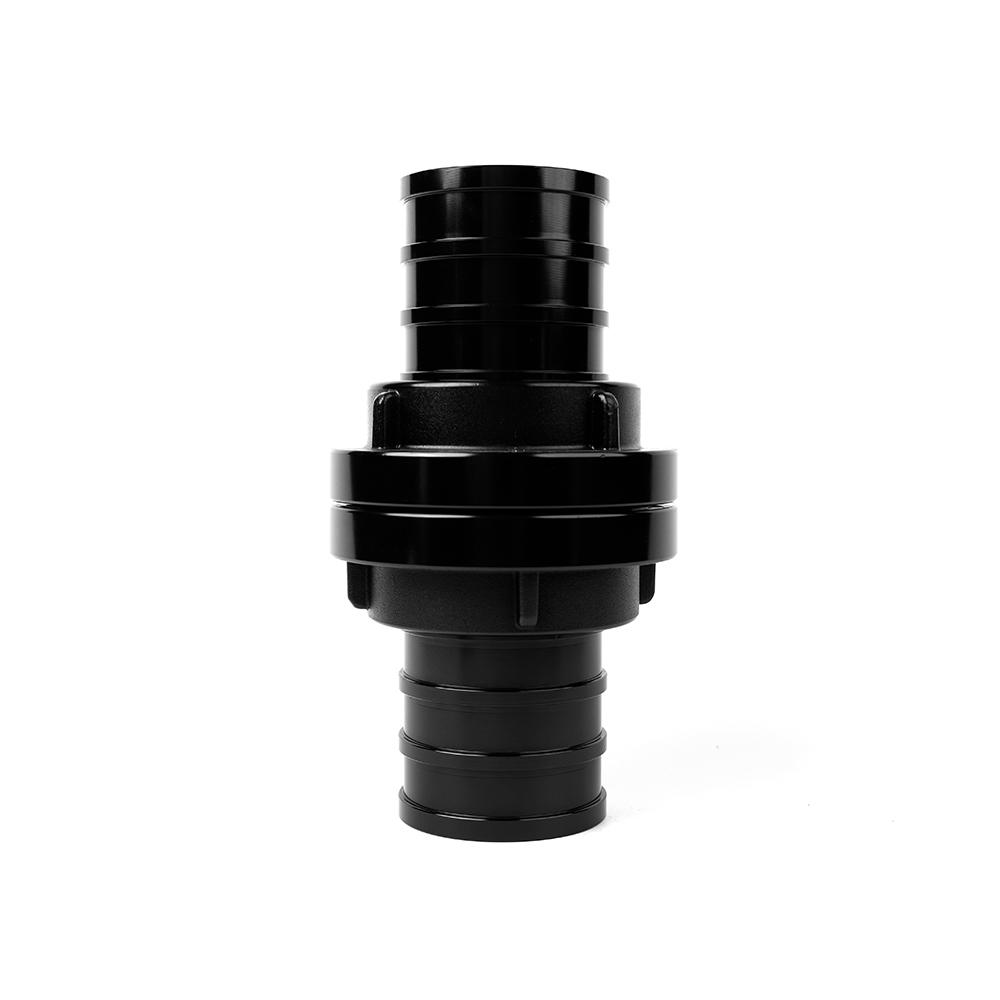

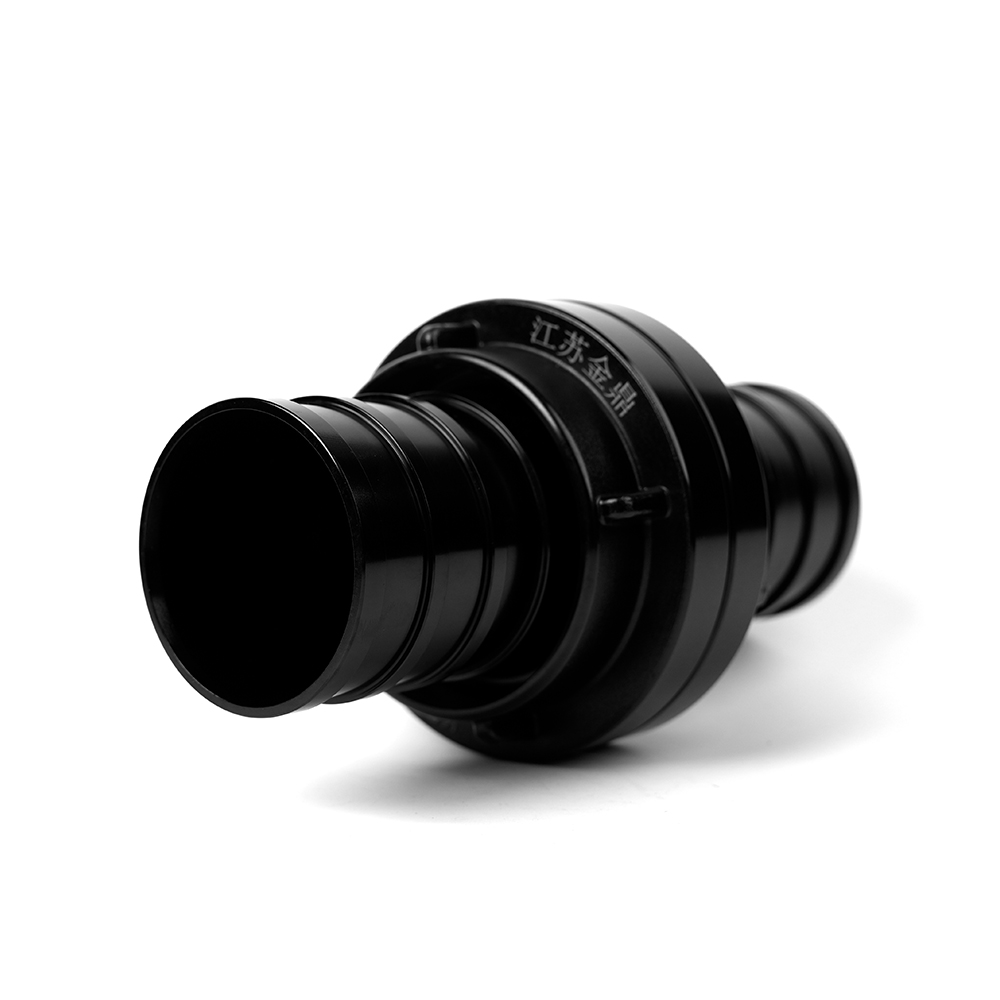

Storz fire hose coupling can be classified into 2 types based on the shape of the tailpipe.
1. Serrated tail ends type: When connected to the hose, the hose is placed over the outer side of the tailpipe and connected using an aluminum ring compression method.

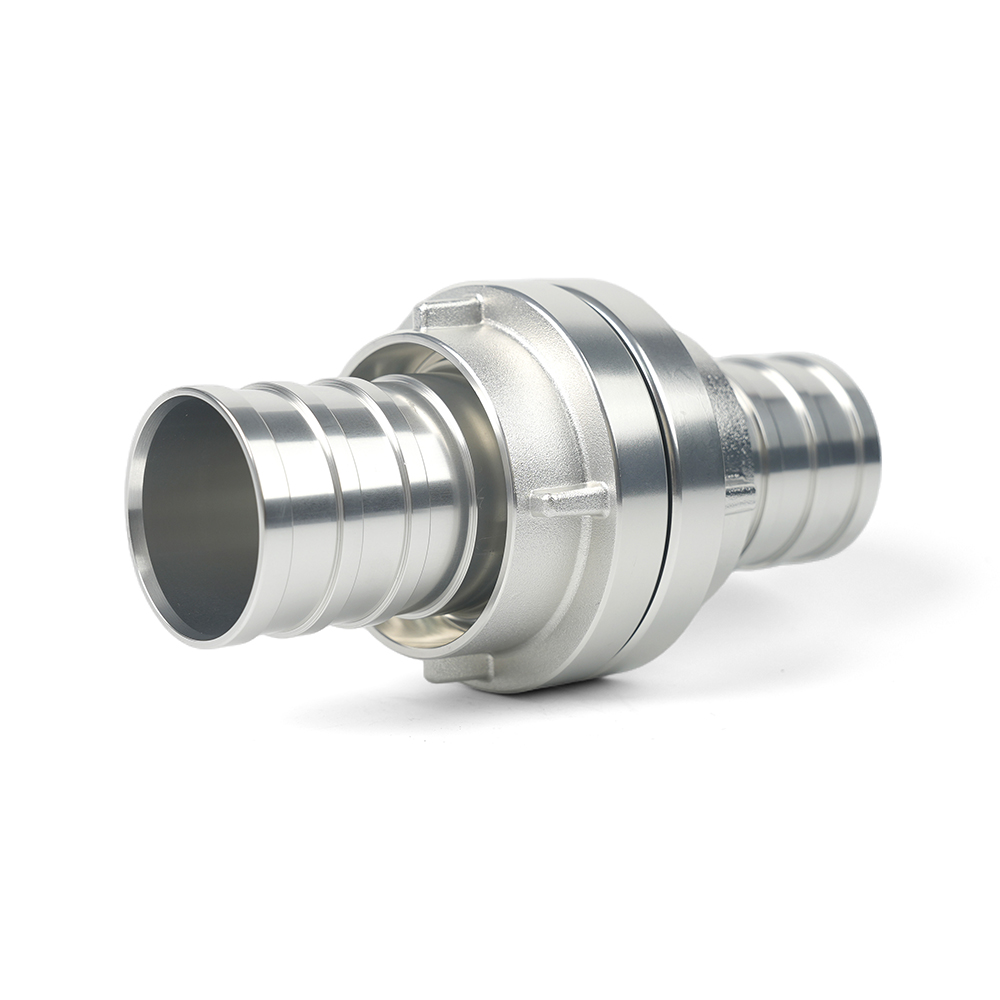

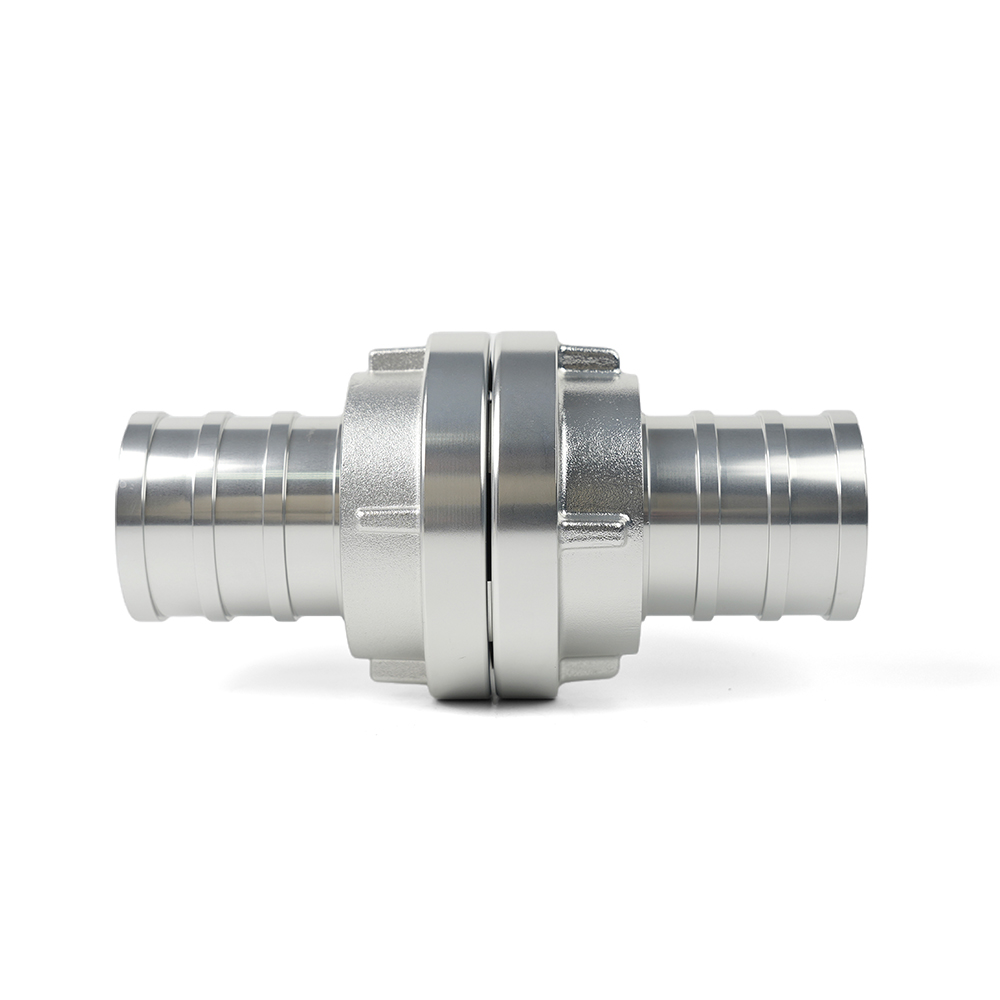

2. Ribbed tail ends type: When connected to the hose, the hose is placed over the outer side of the tailpipe and connected using a wire binding method.

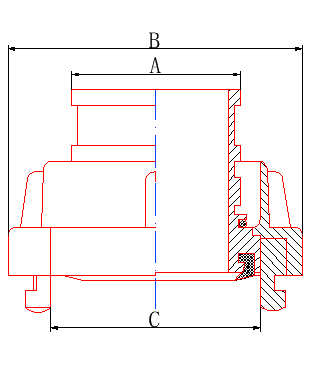

ITEM NO. |
DIN/mm |
DIA |
A/mm |
B/mm |
C/mm |
KD |
25 |
1" |
25 |
55 |
31 |
40 |
1.5" |
38 |
79 |
52 |
|
50 |
2" |
51.8 |
98 |
66 |
|
65 |
2.5" |
63.5 |
118 |
81 |
|
80 |
3" |
74.8 |
126 |
89 |
|
100 |
4" |
101.5 |
156 |
115 |
|
110 |
大4" |
101.5 |
182 |
133 |
|
125 |
5" |
126.5 |
196 |
148 |
|
150 |
6" |
150 |
215 |
160 |
* Materials and manufacturing processes can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
