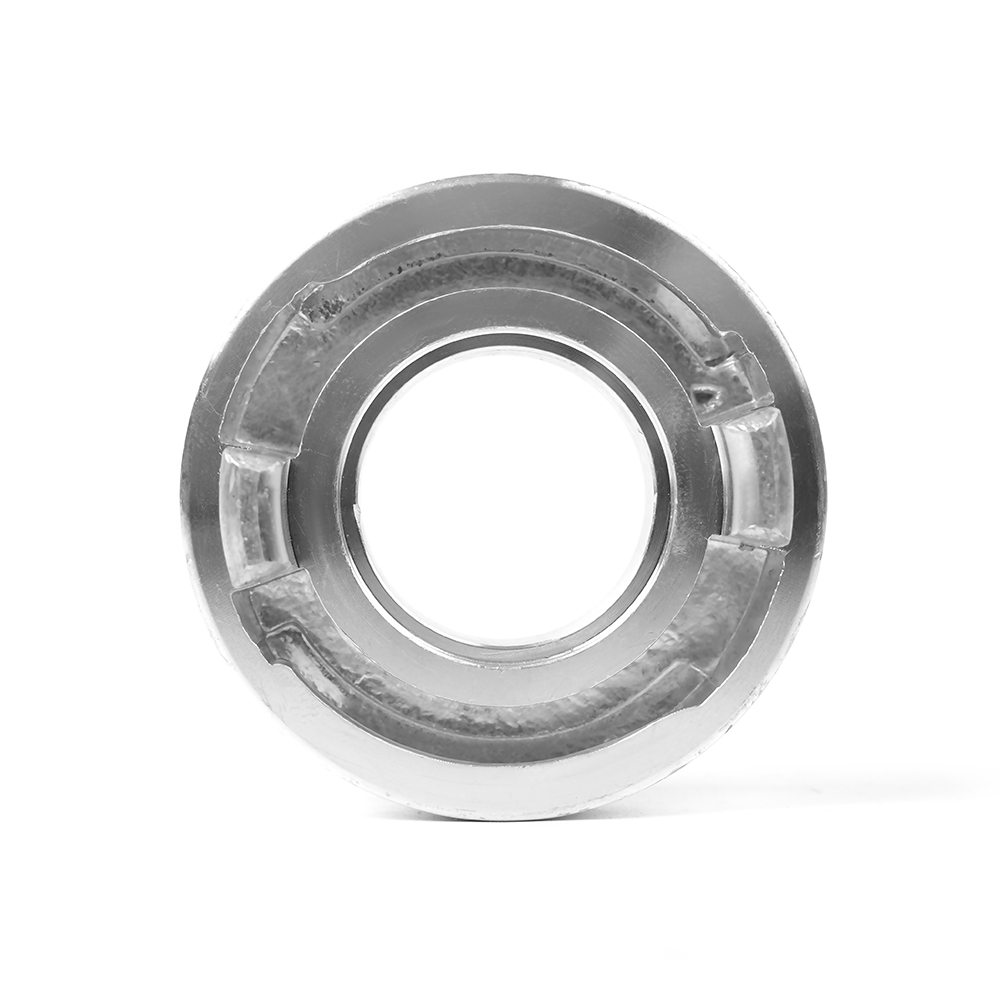

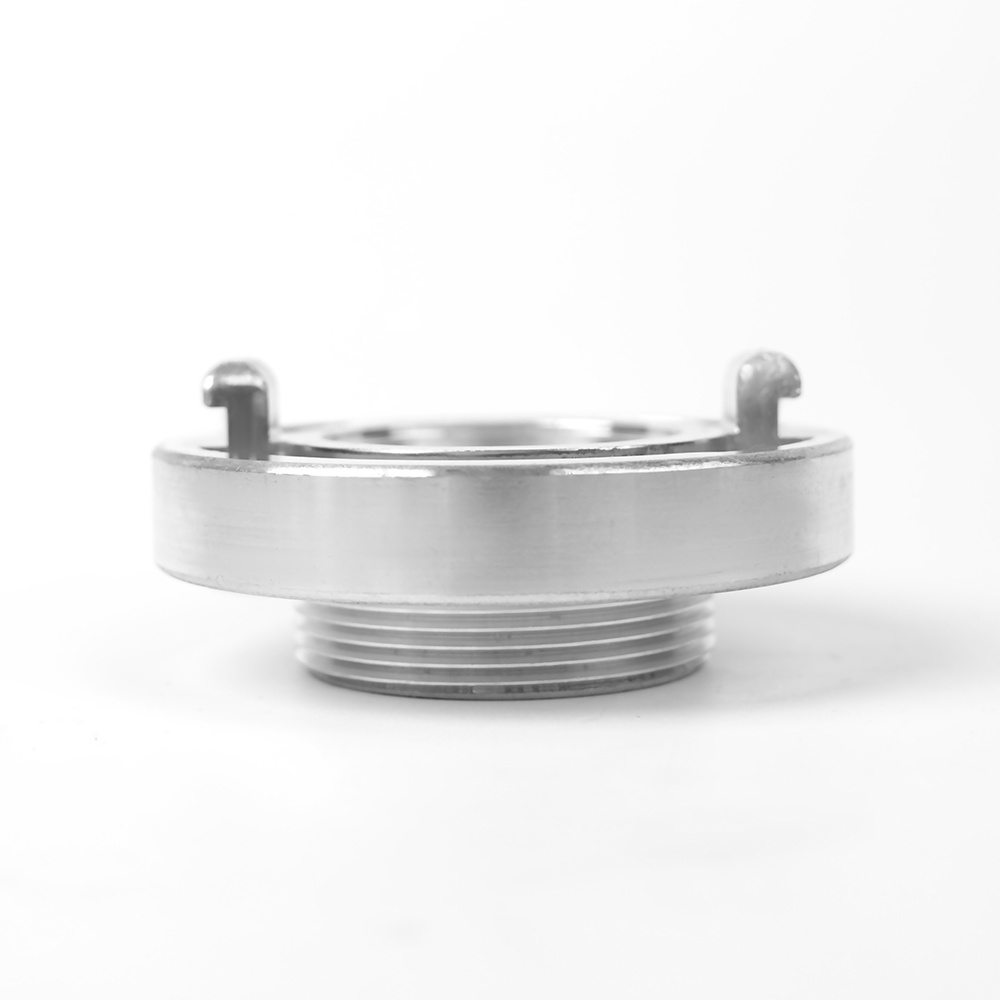

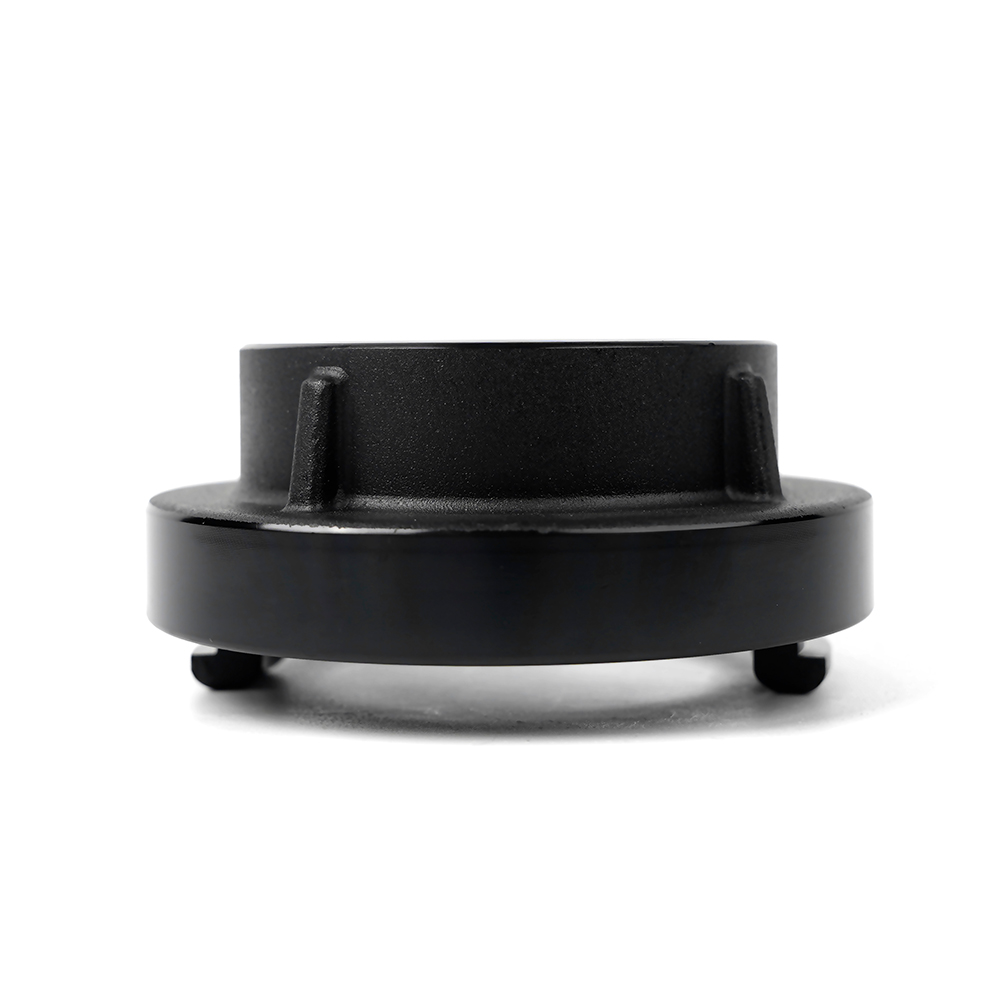

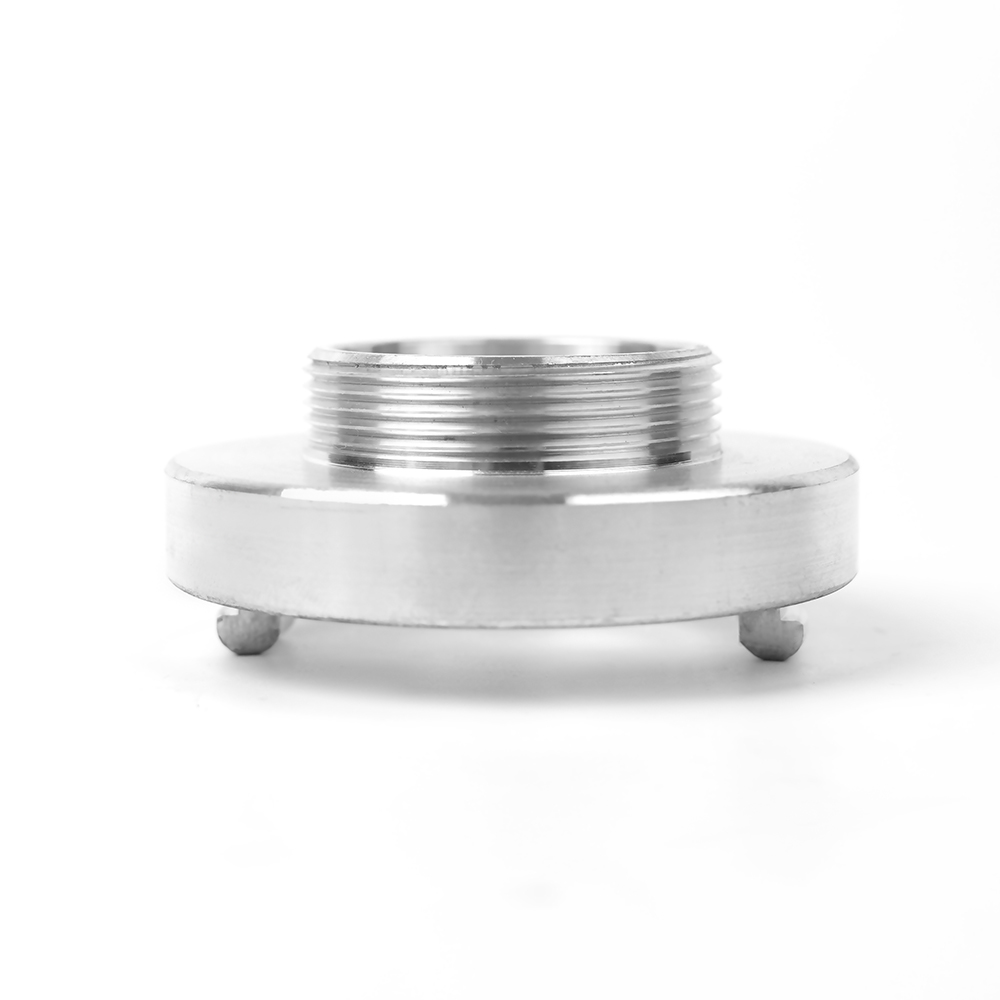

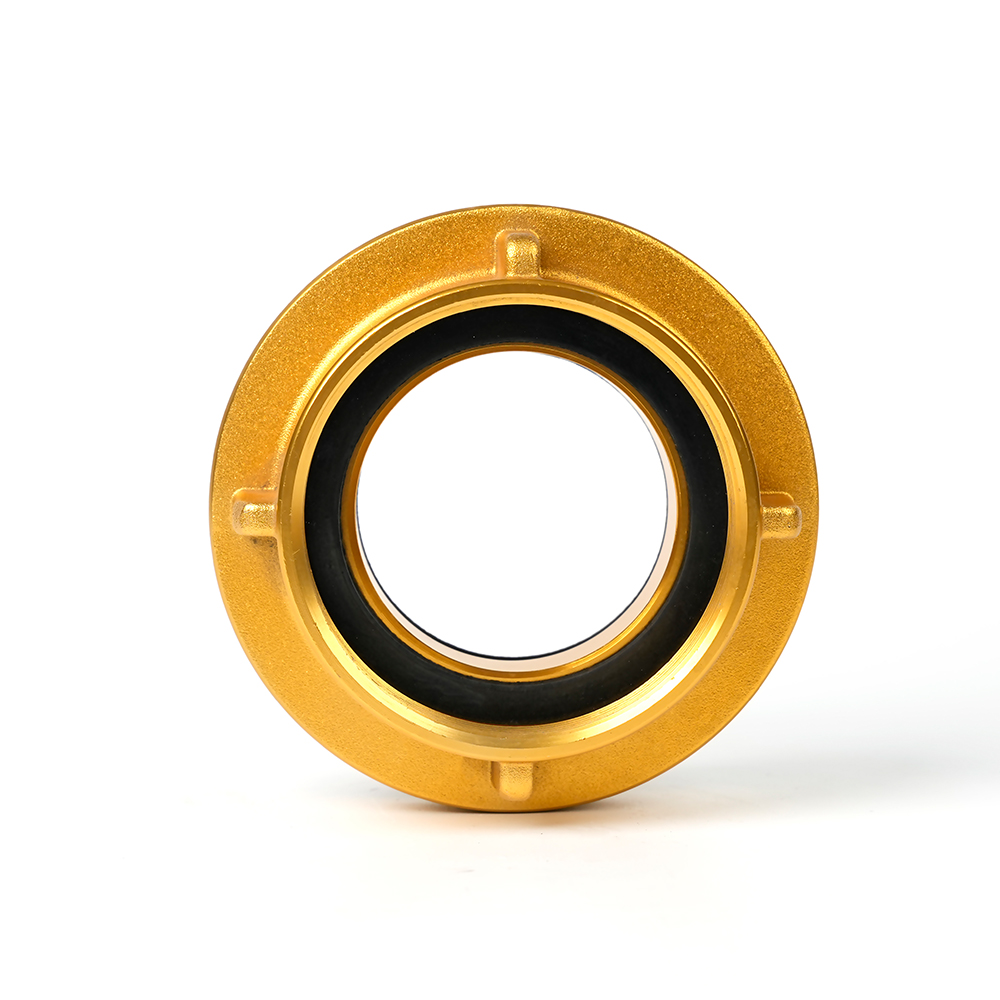

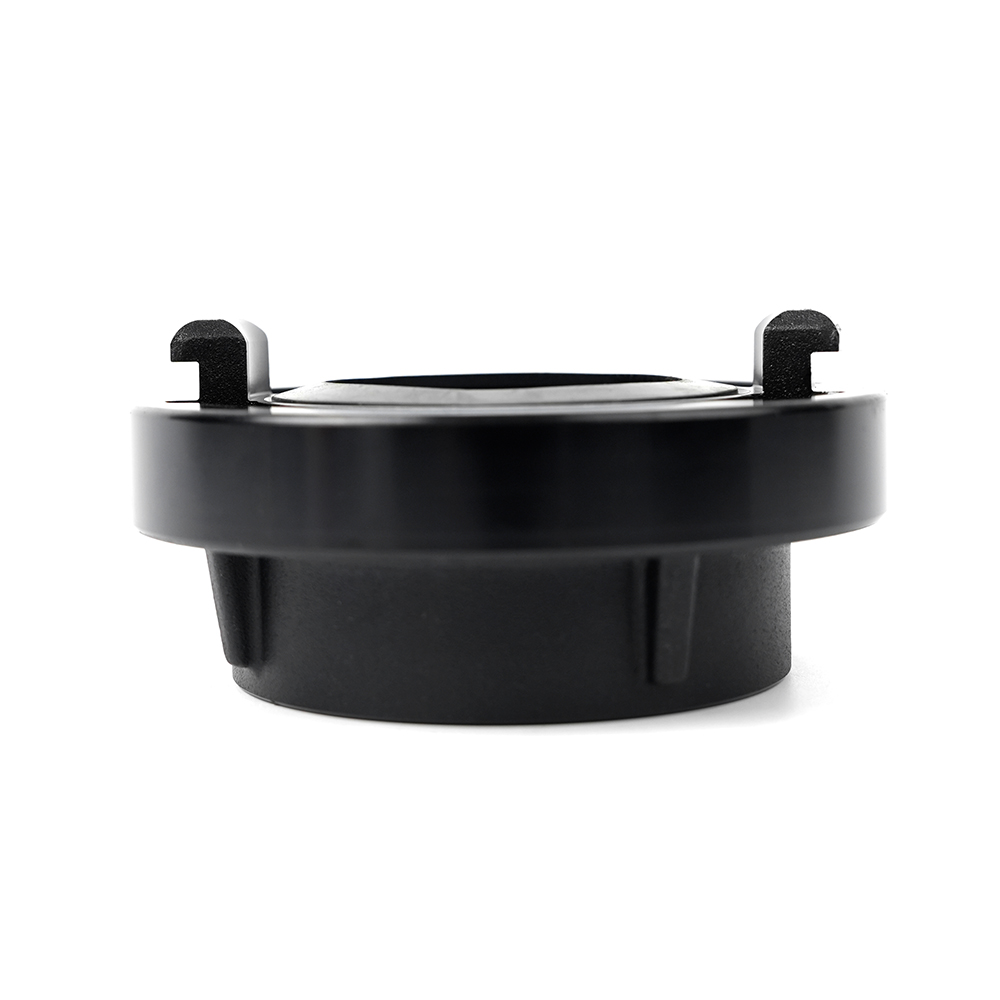

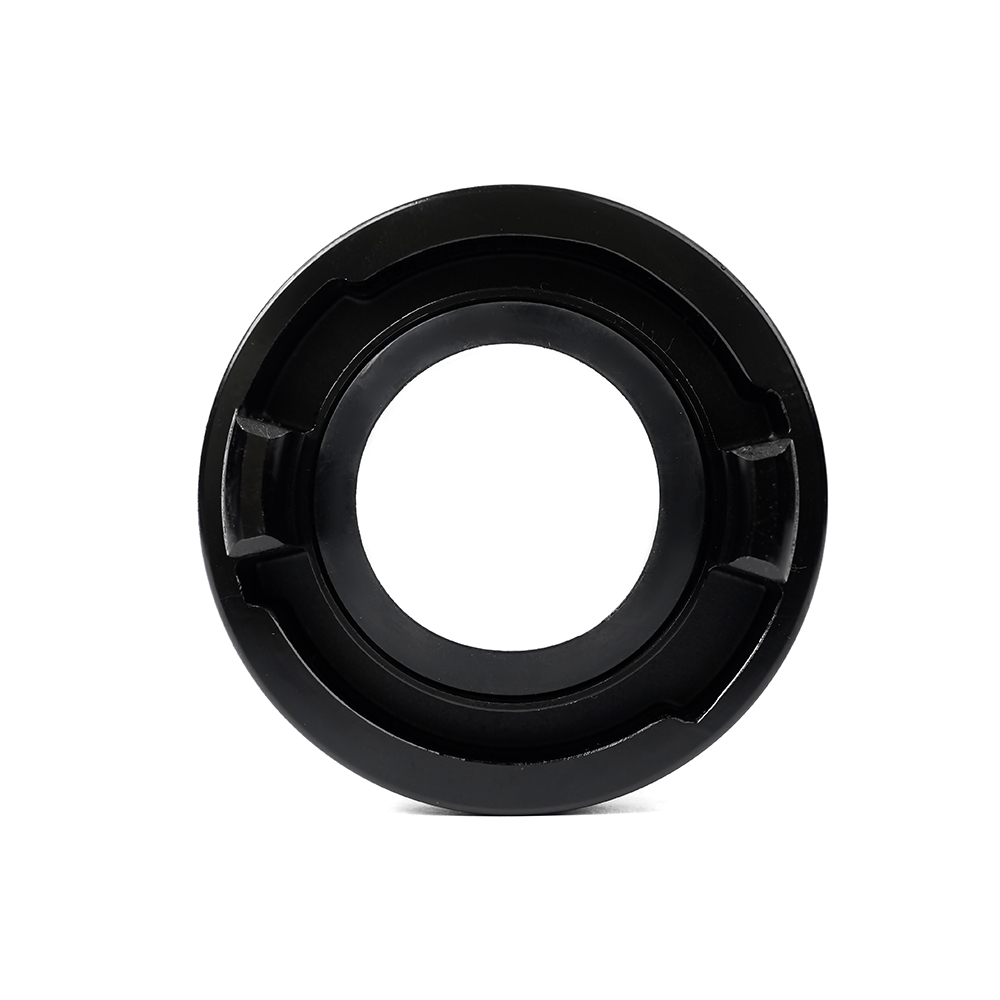

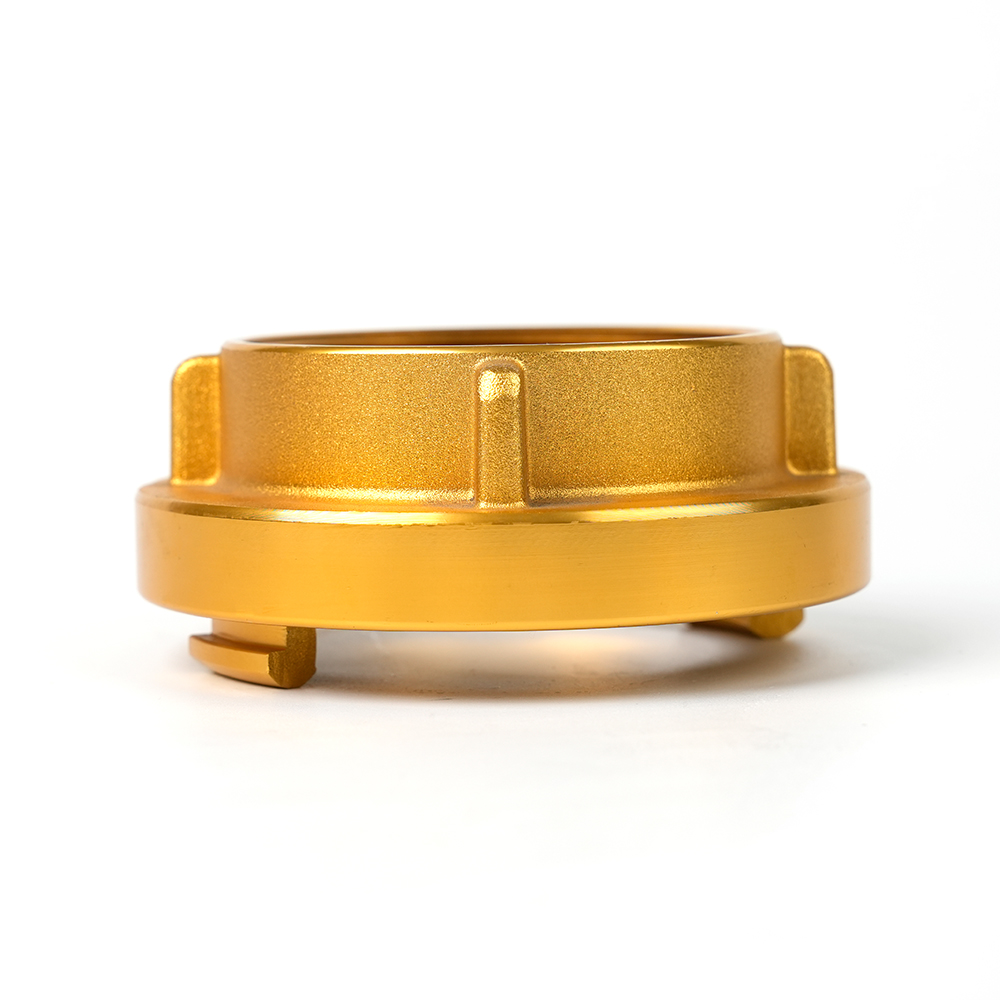

The storz threaded coupling belongs to the storz coupling series, with one end featuring an internal or external thread and the other end having a storz claw-type coupling.
This coupling is used to connect fire hoses and firefighting equipment (such as fire pumps, fire hoses, and fire hydrants).

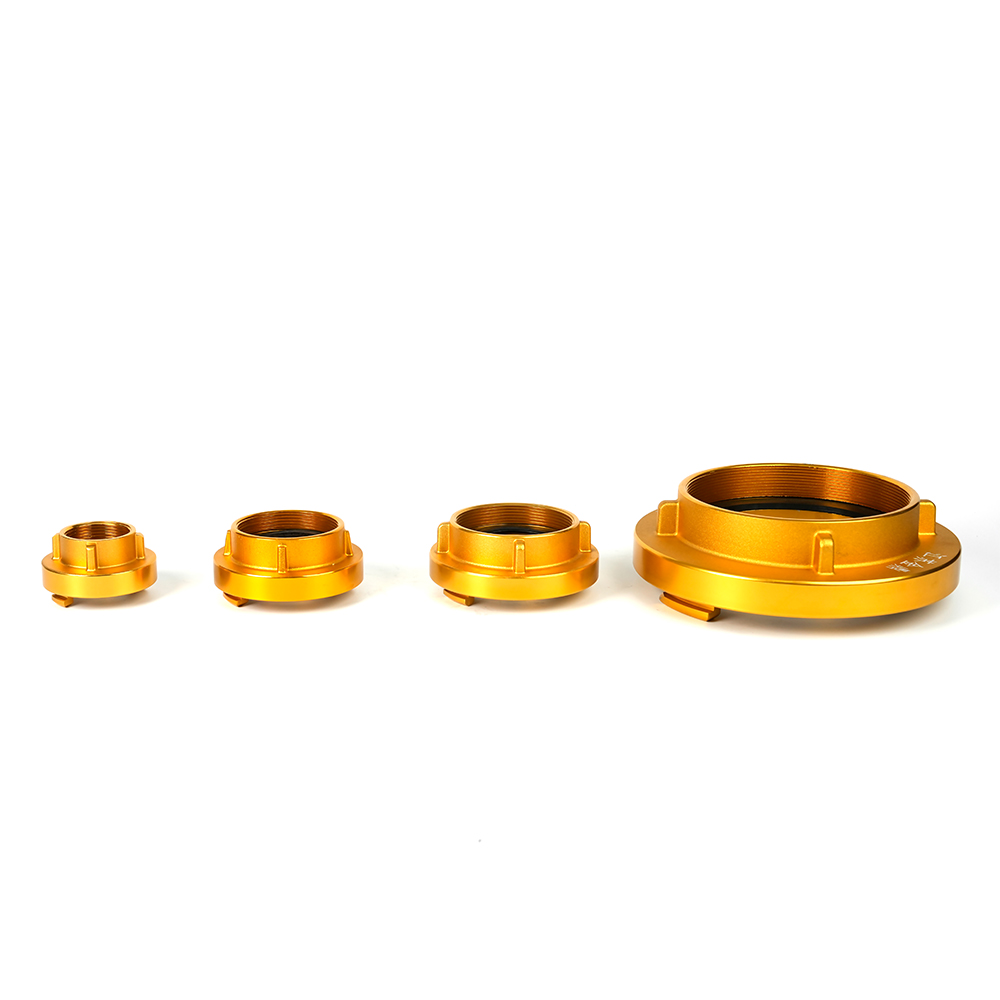

The range for small size production is 20-65.

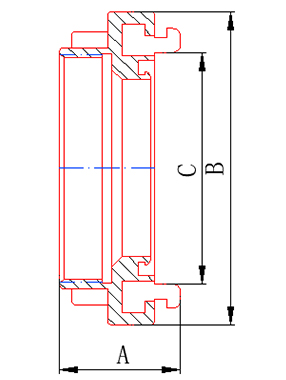

ITEM NO. |
DIN/mm |
DIA |
A/mm |
B/mm |
C/mm |
KY-M KY-F |
25 |
1" |
39.7 |
55 |
31 |
40 |
1.5" |
39.5 |
79 |
52 |
|
50 |
2" |
52 |
98 |
66 |
|
65 |
2.5" |
52 |
118 |
81 |
|
80 |
3" |
55 |
126 |
89 |
|
100 |
4" |
60 |
156 |
115 |
|
110 |
大4" |
63 |
182 |
133 |
|
125 |
5" |
66 |
196 |
148 |
|
150 |
6" |
80 |
215 |
160 |
* Materials and manufacturing processes can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
