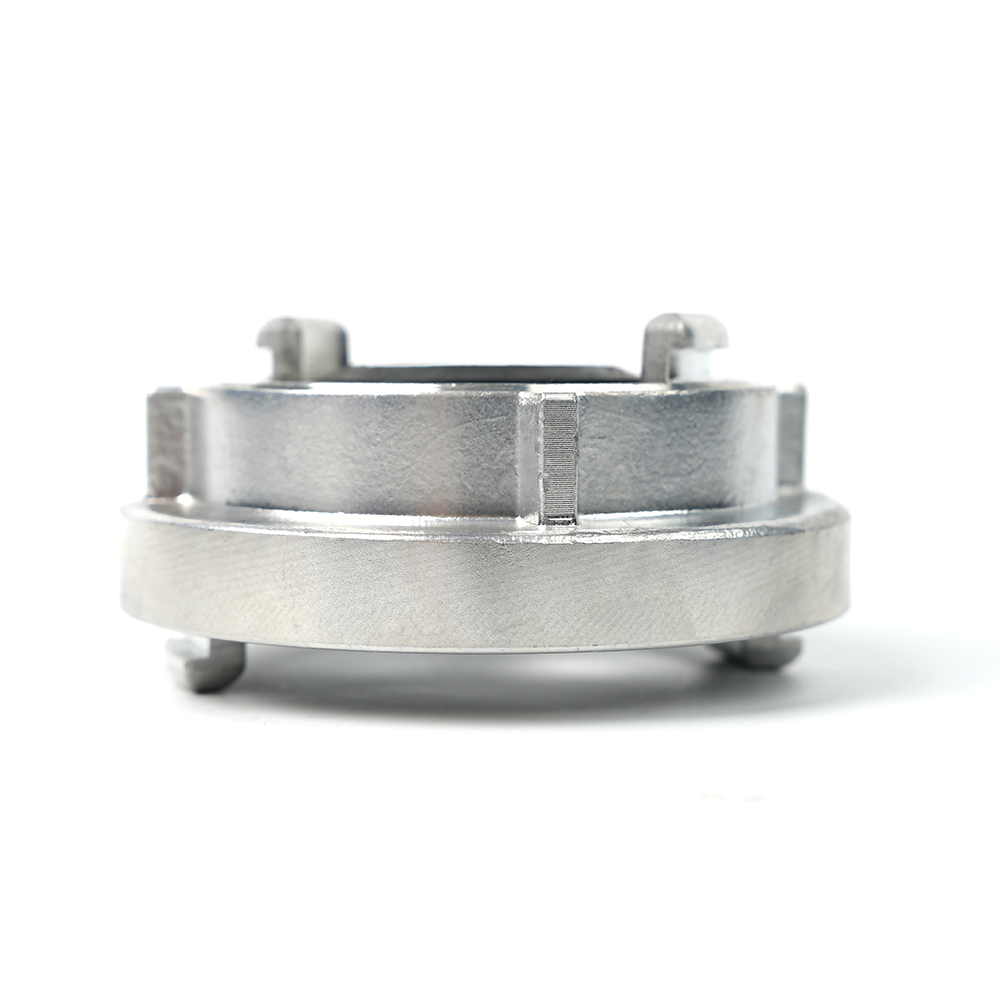

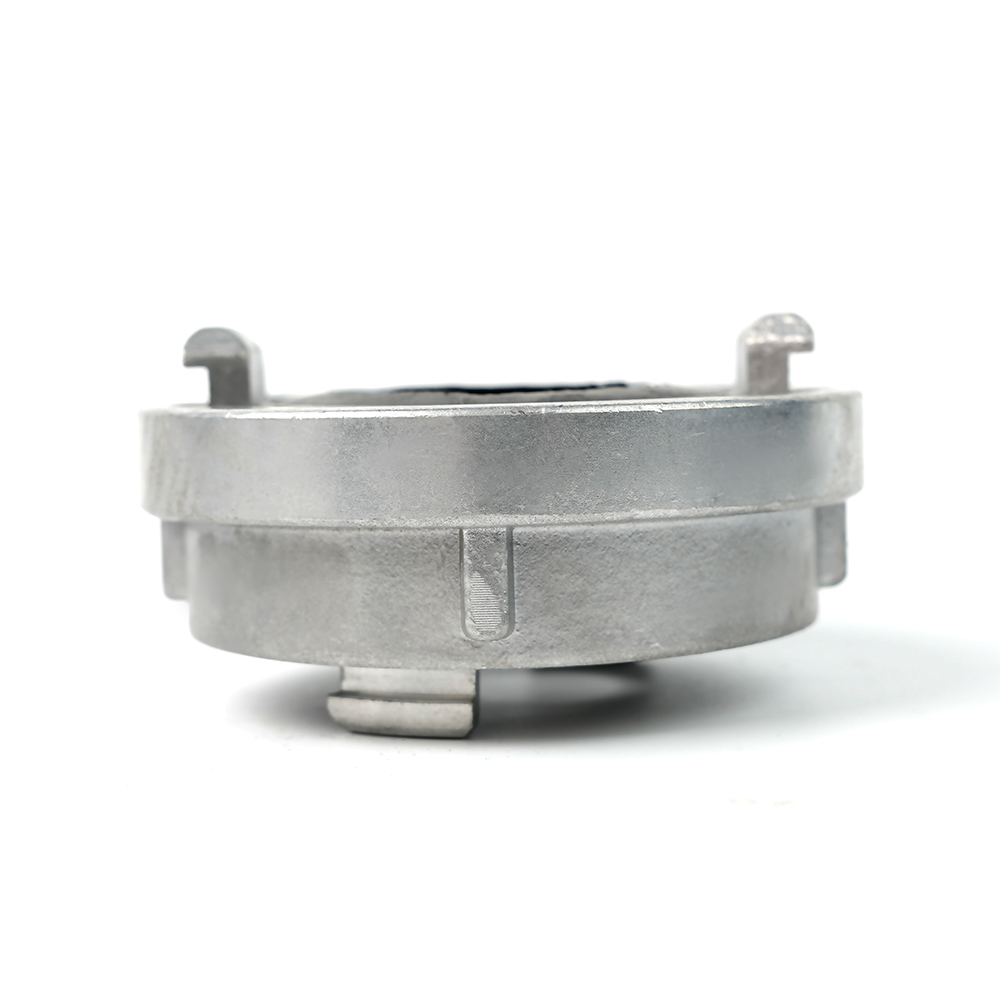

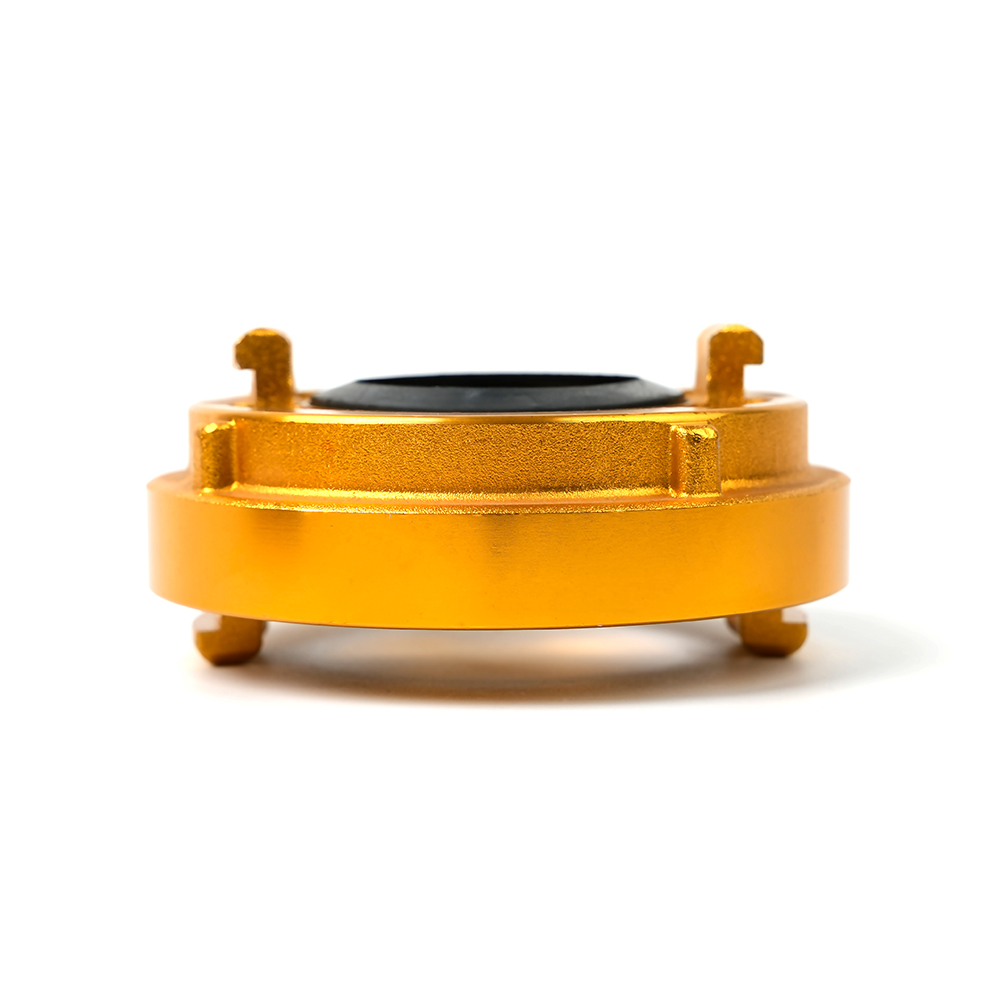

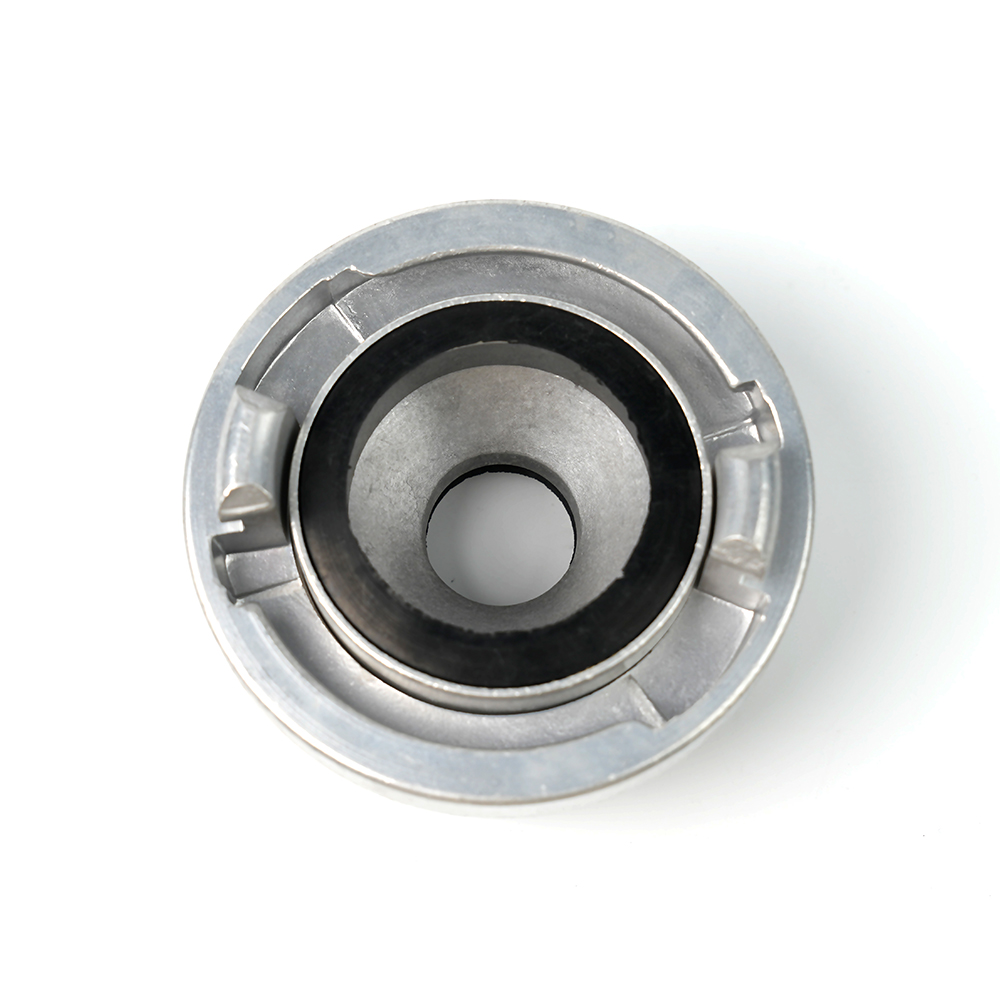

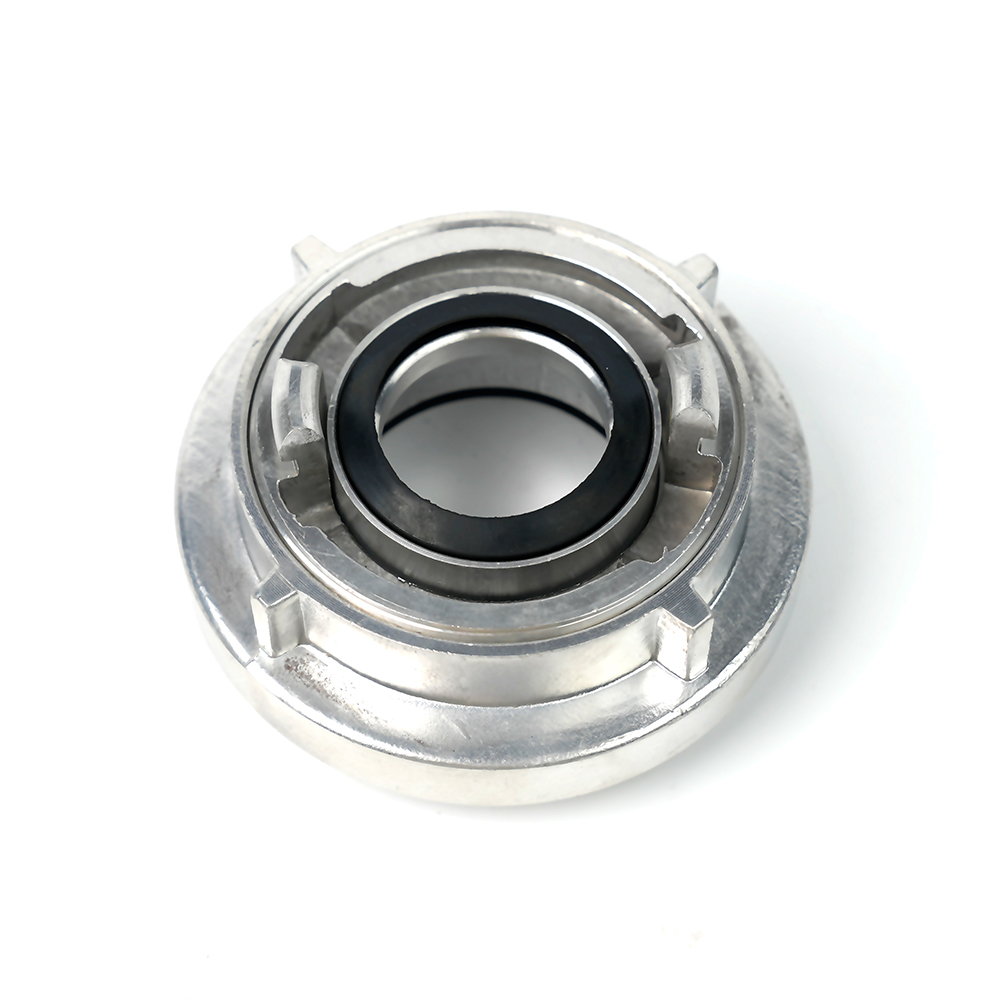

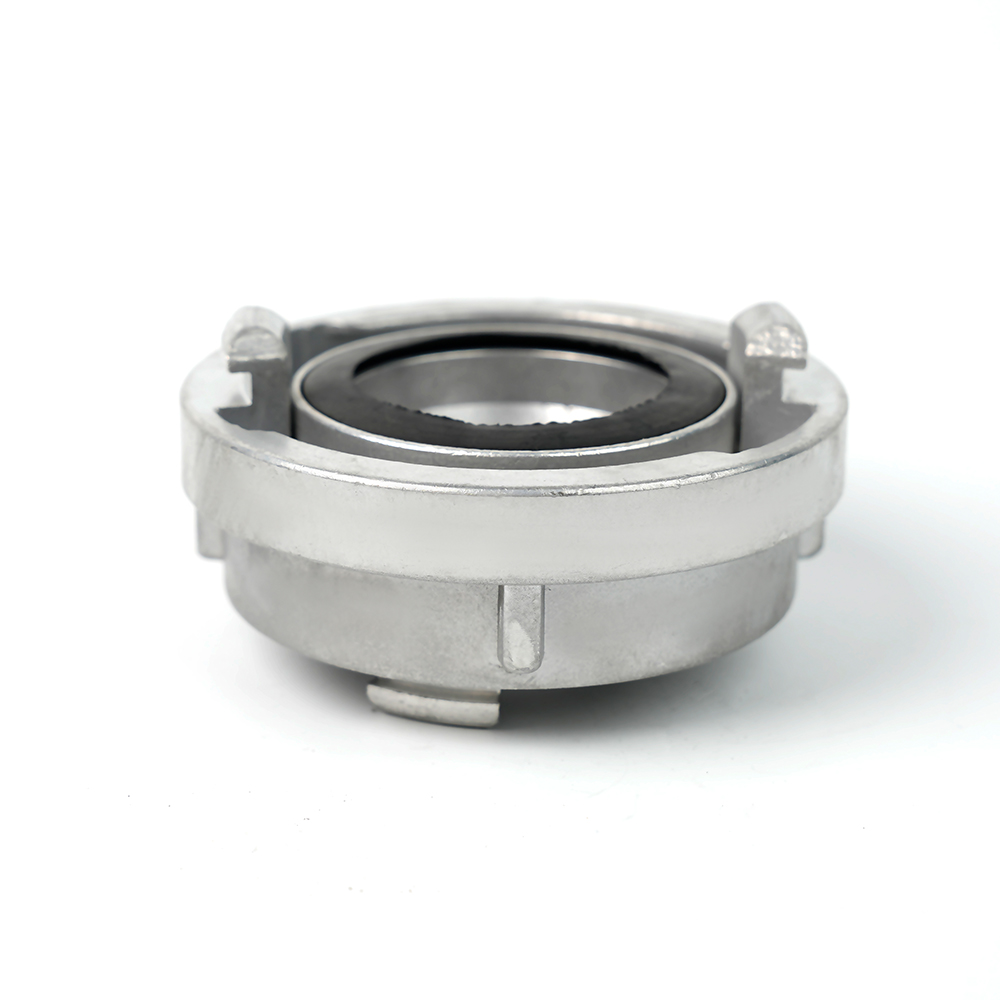

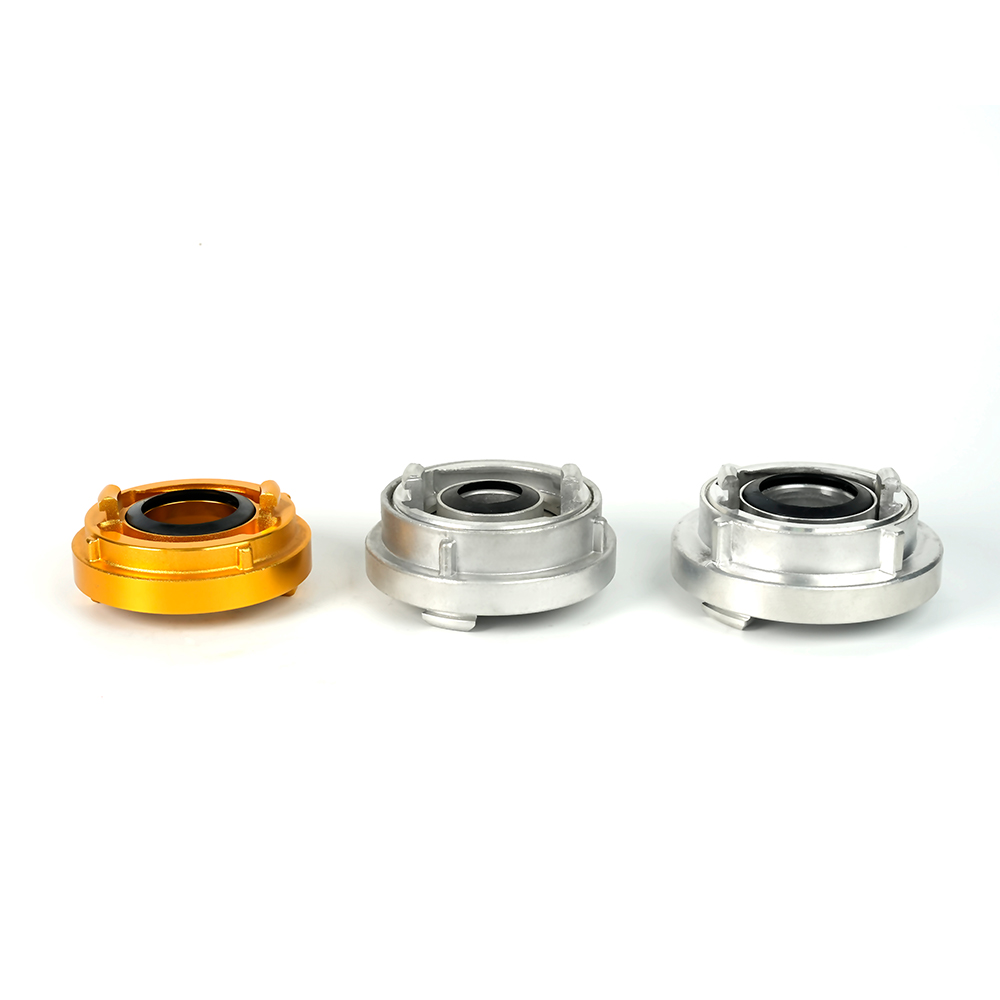

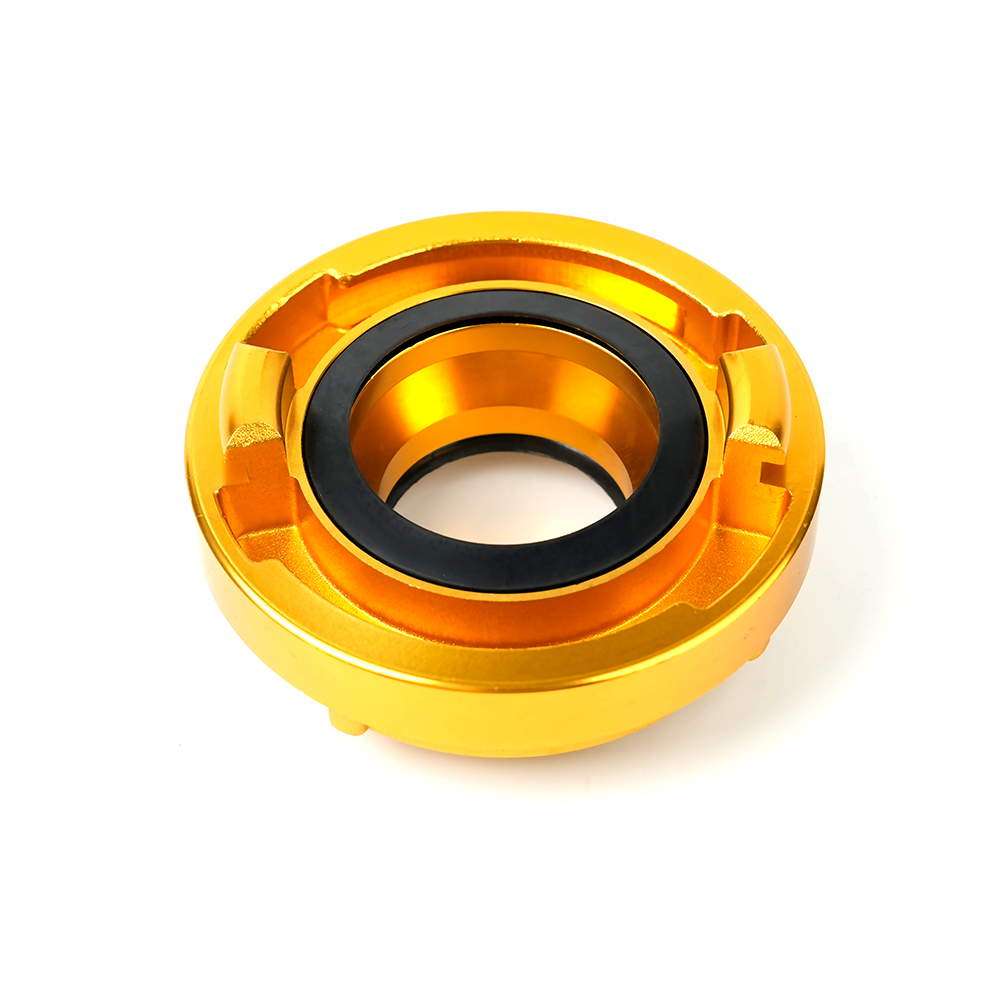

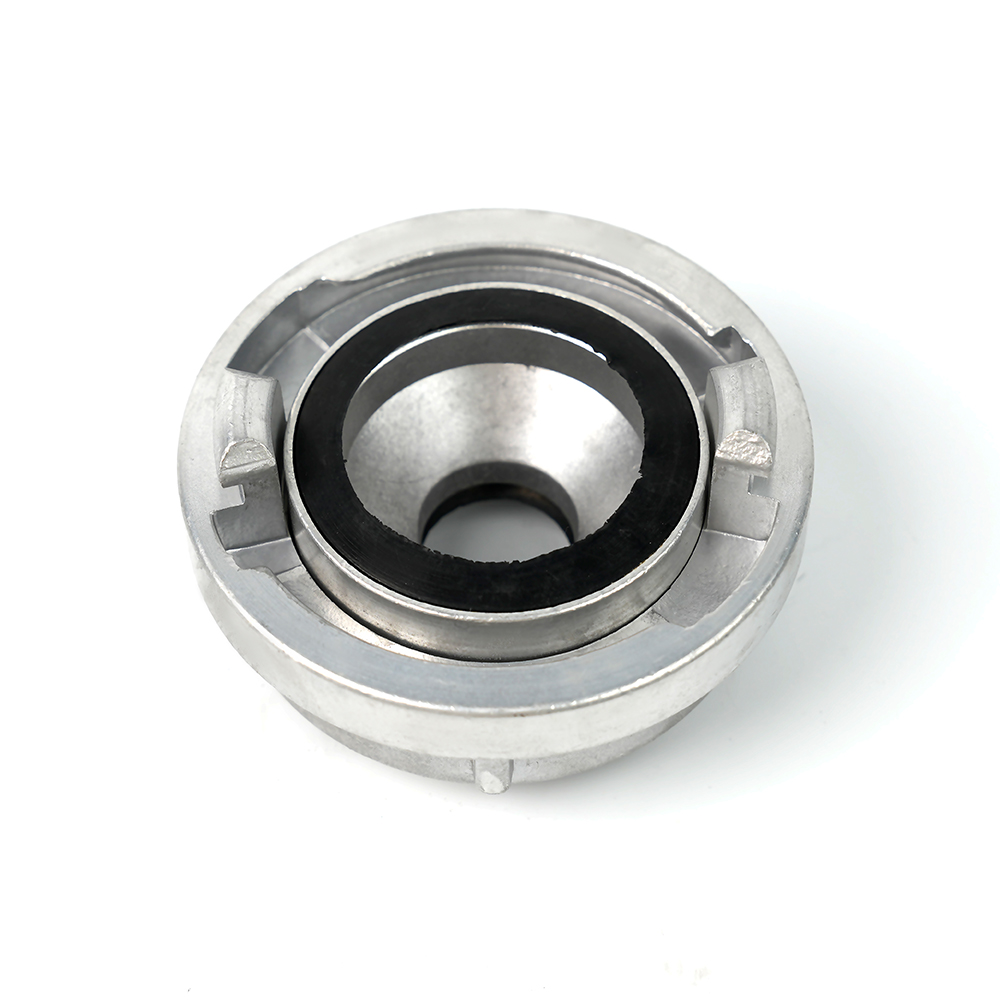

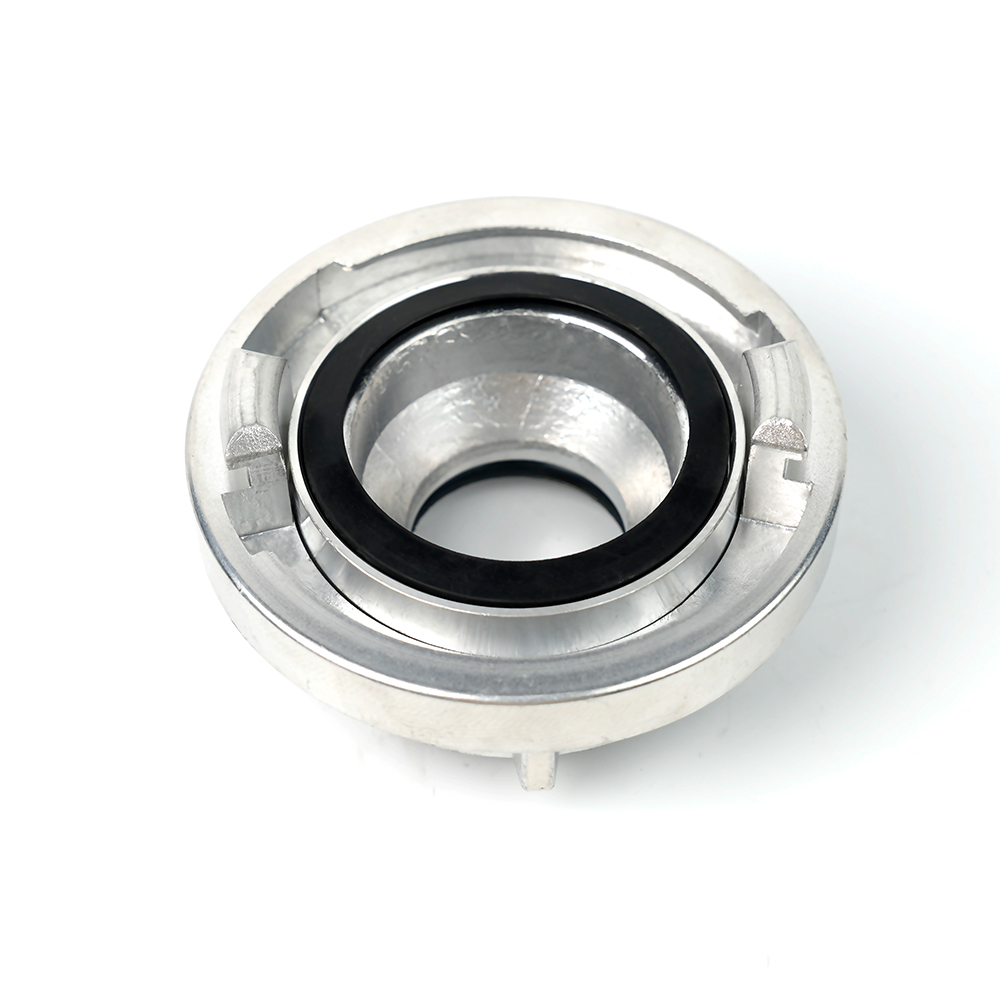

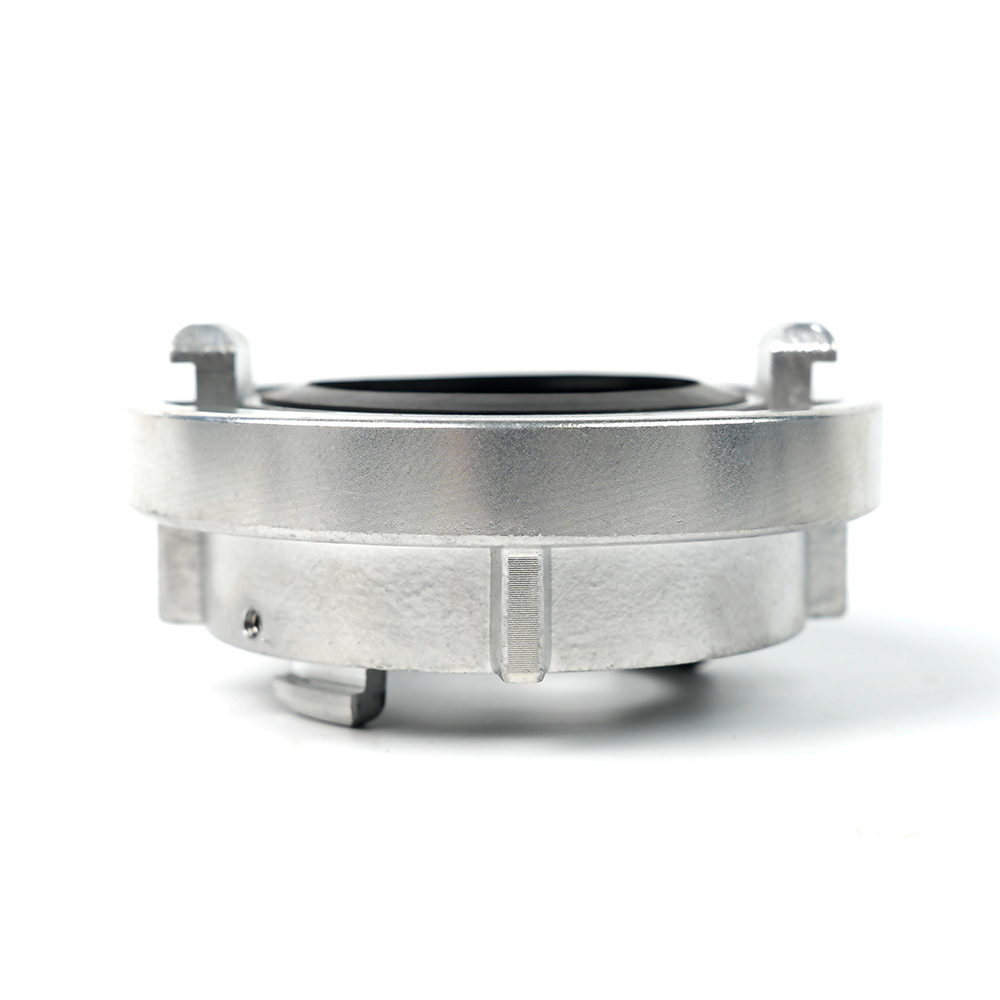

The storz reducer belongs to the storz coupling series, with two ends featuring different sizes of storz couplings.
This coupling is used to connect fire hoses of different sizes or between fire hoses of different sizes and fire equipment (such as fire pumps, fire hoses, and fire hydrants).
The dimensions of the two ends can be customized according to requirements.
|

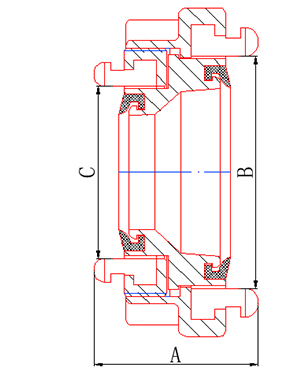

ITEM NO. |
DIN/mm |
DIA |
A/mm |
B/mm |
C/mm |
|
KJ |
25/50 |
1"/2" |
55.7 |
66 |
31 |
|
40/65 |
1.5"/2.5" |
58 |
81 |
52 |
|
|
50/65 |
2"/2.5" |
60 |
81 |
66 |
|
|
50/80 |
2"/3" |
63 |
89 |
66 |
|
|
80/100 |
3"/4" |
72 |
133 |
89 |
* Materials and manufacturing processes can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
