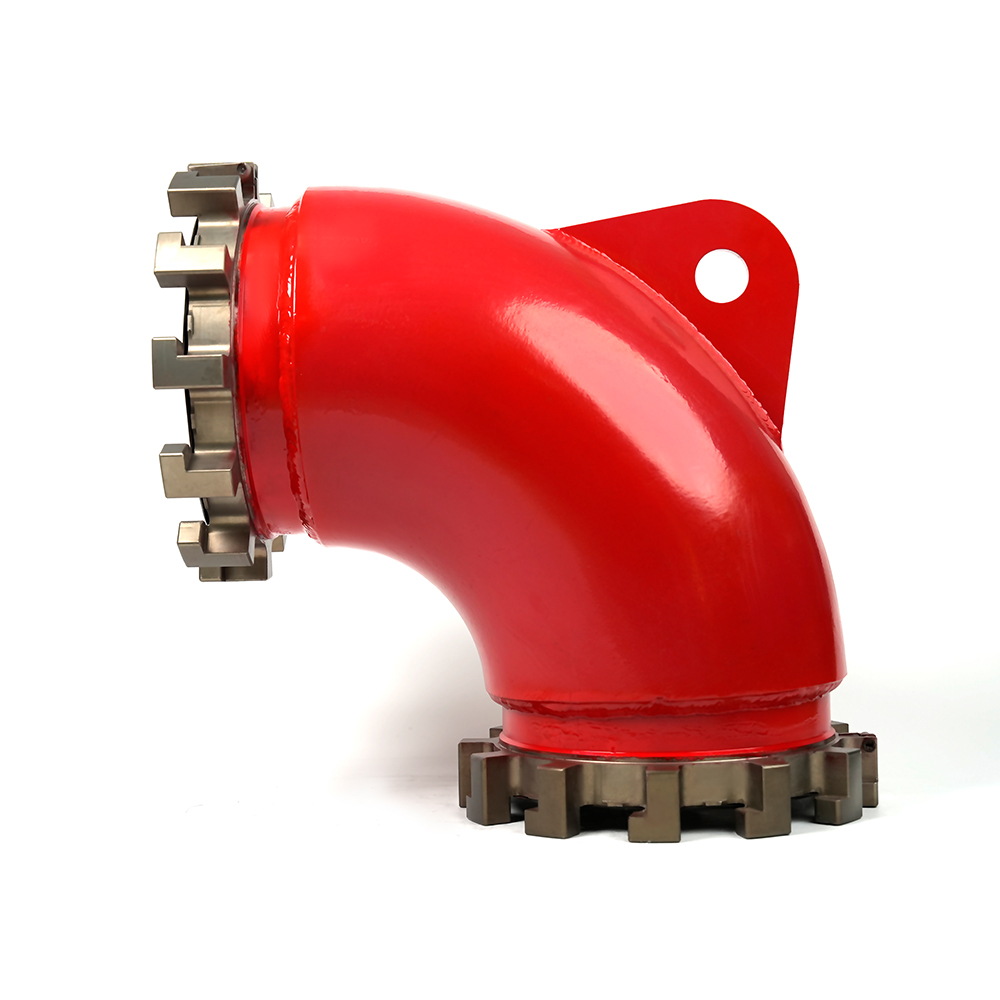

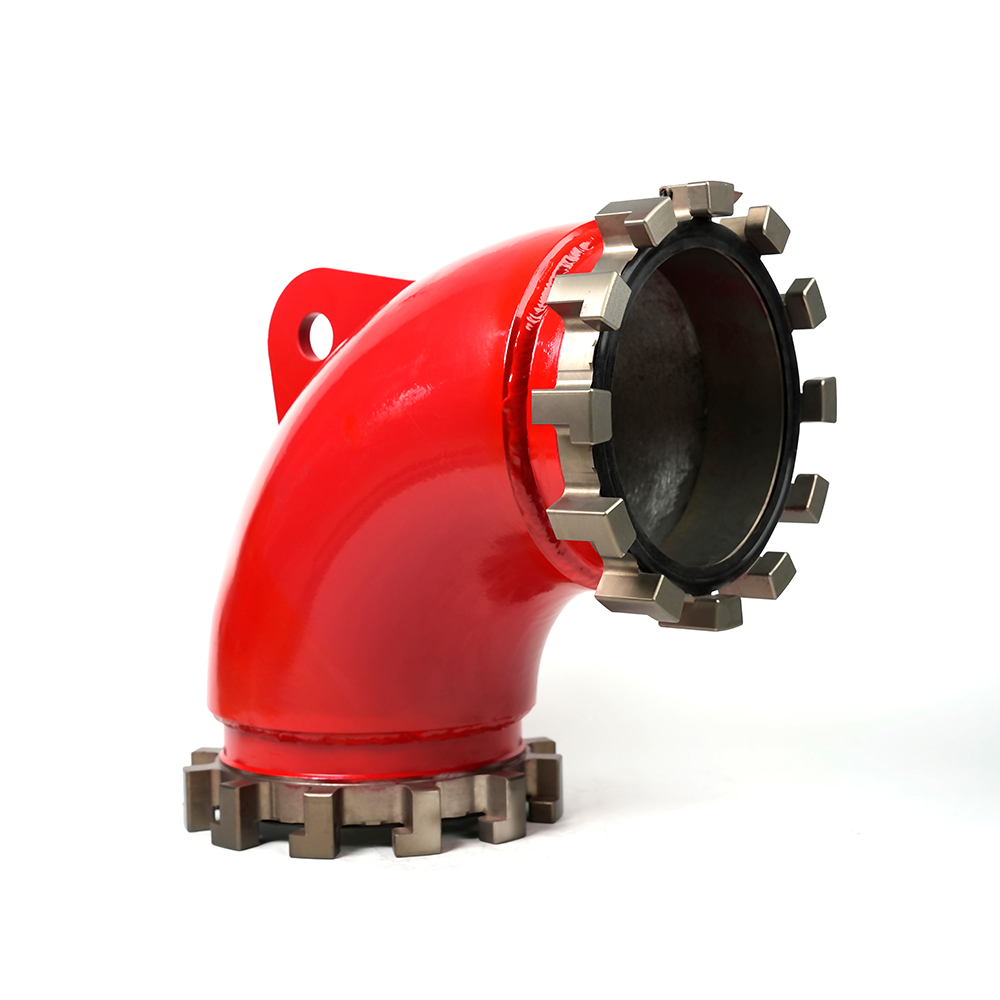

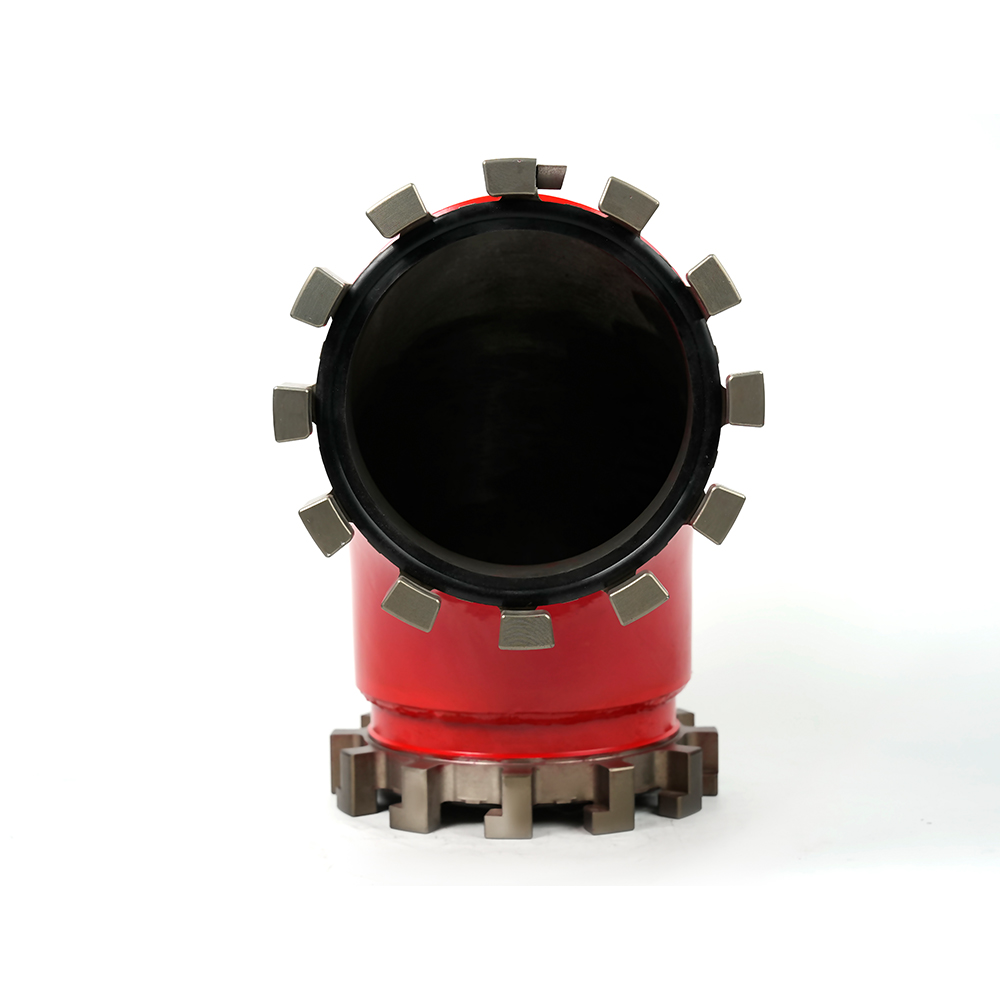

Grooved fire elbow is a pipe fitting installed at pipeline turns, featuring an external grooved structure that allows for connection using grooved couplings. It is suitable for quick assembly and disassembly in piping systems.
This fitting is commonly used in fire sprinkler systems, fire hydrant water supply networks, industrial and commercial building fire main lines, and high-rise building fire water systems for directional changes in piping.
Customized options are available for different interface standards as well as various angles and diameters upon request.
|

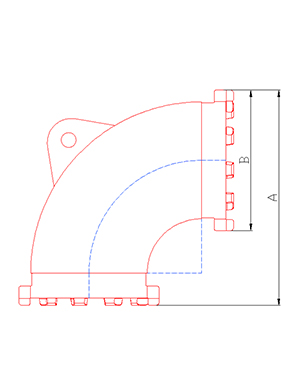

ITEM NO. |
DIN/mm |
DIA |
A/mm |
B/mm |
|
200 3 teeth |
8" |
460 |
280 |
|
|
200 6 teeth |
8" |
420 |
279 |
|
|
200 8 teeth |
8" |
420 |
280 |
|
|
250 3 teeth |
10" |
550 |
337 |
|
|
250 10 teeth |
10" |
500 |
326 |
|
|
250 12 teeth |
10" |
500 |
317 |
|
|
300 3 teeth |
12" |
670 |
384 |
|
|
300 12 teeth |
12" |
580 |
380 |
|
|
350 14 teeth |
14" |
670 |
442 |
|
|
400 14 teeth |
16" |
760 |
501 |
* Materials and manufacturing processes can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
