How does an adjustable fire nozzle work?

In modern firefighting, adjustable firefighting nozzles, with their flexible and versatile water discharge patterns, have become a versatile tool in the hands of firefighters. They not only meet the water flow pattern requirements of different fire scenes, but also provide a valuable tool for improving firefighting efficiency and ensuring firefighter safety.

1. Core Working Principle: Flexible Conversion of Water Flow Patterns

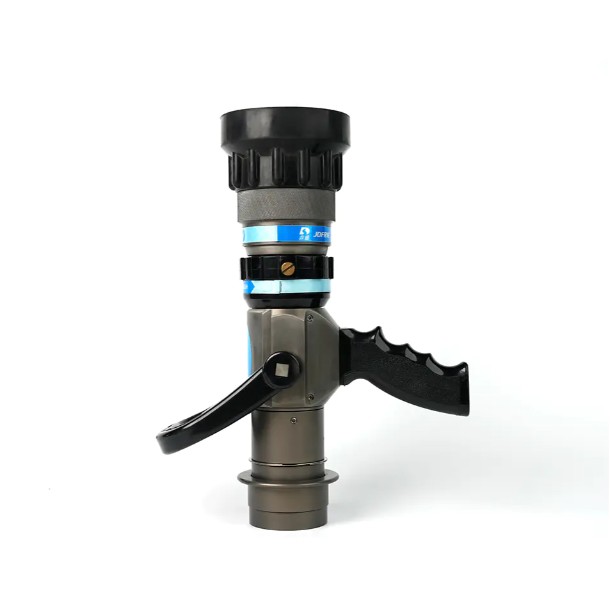

The core principle of an adjustable fire nozzle lies in its ingenious internal adjustment mechanism, which allows it to change the shape and parameters of the water flow. This control is typically achieved by manipulating the nozzle or adjustment ring at the front of the hose to adjust the water flow pattern (e.g., straight stream, spray/spray), flow rate, and range.

Straight Stream (Columnar Flow):

When the adjustment mechanism sets the water outlet to its most concentrated setting, the water flows out in a tight, high-speed, high-pressure column. This flow pattern provides maximum range and penetration, making it suitable for fighting deep fires or cooling distant targets. In straight stream mode, the adjustable fire nozzle concentrates the water force, delivering a powerful impact on burning objects.

Spray/Flowing Water Mode (Mist Flow):

When the adjustment mechanism sets the water outlet to the diffuse mode, the water flow at the nozzle is dispersed into fine droplets, forming a fan-shaped or cone-shaped mist curtain. The main functions of this mode include:

• Heat Absorption and Cooling: The mist droplets have a large surface area, rapidly absorbing heat from flames and smoke, rapidly reducing the fire temperature.


• Smoke Diluting: Water vapor dilutes the oxygen concentration in the burning area, suffocating the fire.


• Protective Barrier: The resulting water curtain serves as a shield against heat radiation and a protective shield for firefighters during their retreat.


II. Key Structures for Achieving Adjustability

The key to the functionality of an adjustable firefighting nozzle lies in its nozzle design. Common adjustment methods include:

• Turn the adjustment ring: By turning the adjustment ring on the outside of the hose, the internal valve or diversion structure moves, changing the shape and size of the water flow channel, achieving a smooth transition from direct water flow to spray water.


• Ball Valve/Slide Valve Mechanism: Some high-end multi-function water nozzles also feature built-in flow control or on/off ball valves or slide valves, enabling quick opening and closing of the nozzle and preset flow control, making them truly versatile.



III. Characteristics of a High-Quality Adjustable Firefighting Nozzle

A high-quality adjustable firefighting nozzle should not only offer reliable adjustment but also possess the following features:

• Reliable Material: Typically constructed from lightweight, high-strength aluminum alloy or stainless steel, this ensures excellent corrosion and wear resistance in harsh firefighting environments.


• Easy Operation: The adjustment handle or ring should be ergonomically designed, allowing for quick and accurate switching between modes, even while wearing heavy firefighting gloves.


• Stable Flow: Regardless of the water flow pattern, the nozzle maintains stable water pressure and flow, ensuring effective firefighting.



Adjustable firefighting nozzles utilize sophisticated internal mechanical structures to effectively harness hydraulic power, achieving "multiple uses" for each water flow pattern, greatly improving firefighting efficiency and adaptability.
