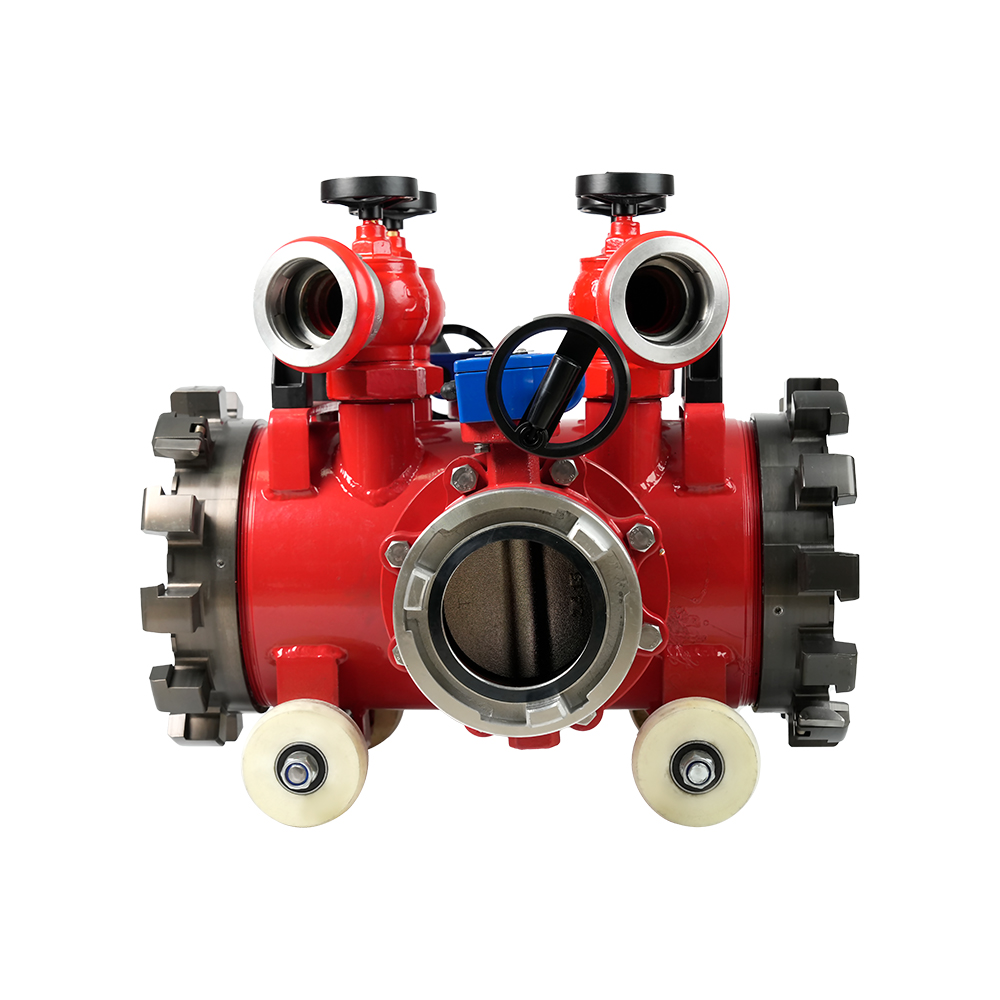

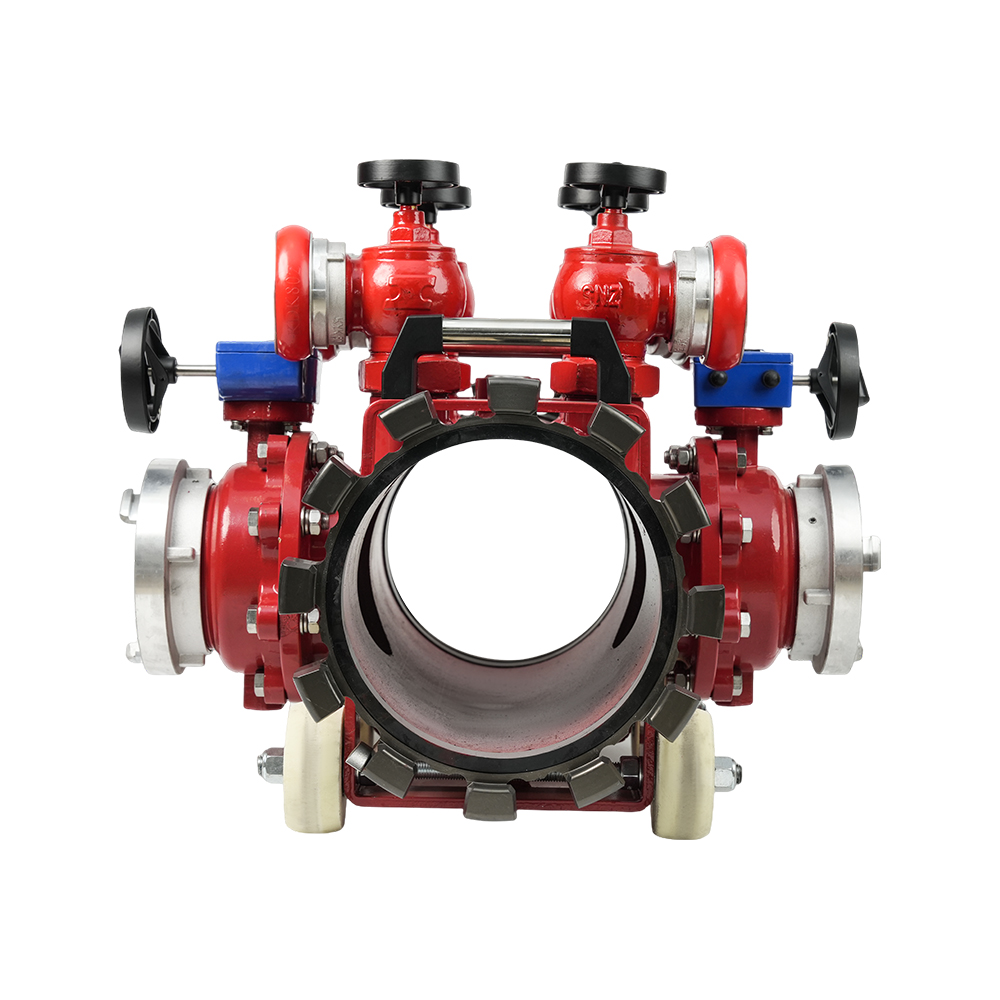

Multi-functional Fire Hose Distributor

The multi-functional fire hose distributor is a key water distribution device used in firefighting water supply systems. It can efficiently divide a single water flow into multiple streams while offering multiple control and safety functions, enhancing supply flexibility and operational efficiency at the fire scene.
This divider adopts a one-inlet, multi-outlet structure (commonly available in configurations such as one-inlet two-outlet, one-inlet three-outlet, or one-inlet four-outlet), allowing multiple hoses to operate simultaneously, making it ideal for complex firefighting scenarios. Each outlet is equipped with an independent ball valve or gate valve, enabling individual flow control and on/off switching for precise water management.
Constructed from aluminum alloy or stainless steel, the device features high pressure resistance, corrosion resistance, and wear resistance, making it suitable for demanding operating environments.
The multi-functional divider can be customized with various standard interfaces such as Storz, John Morris, Multi-tooth, or Flange type, and is compatible with different types of hoses and firefighting equipment to meet diverse operational needs.

Contact Us Download

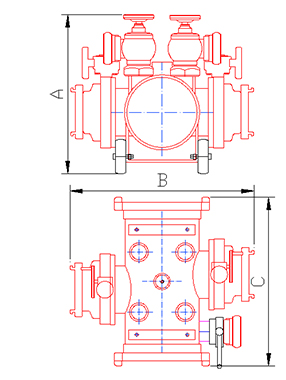

Dimensions Resources

ITEM NO.

DIN/mm

A/mm

B/mm

C/mm

/

300/150*2/80*4

640

750

670

* Materials and manufacturing processes can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
