How to Adjust Adjustable Nozzles?

In modern industrial cleaning, landscaping, and agricultural irrigation, adjustable nozzles have become a core component for improving work efficiency due to their high flexibility and adaptability. Whether you need a powerful direct jet to wash away dirt or a fine mist for humidification, proper nozzle adjustment is crucial for ensuring task success.

Understanding How Adjustable Nozzles Work

Before delving into the adjustment steps, we need to understand the basic structure of adjustable nozzles. These nozzles typically adjust the jet pattern by changing the cross-sectional area of ​​the internal nozzle orifice or rotating the outer sleeve.

• Flow Control: Changes the volume of liquid sprayed per unit time.
• Angle Adjustment: Changes the spray diffusion range (from 0° direct to 110° wide angle).
• Atomization: Adjusts pressure and orifice diameter to achieve the conversion from large water droplets to micron-sized fine mist.



How to Adjust Adjustable Nozzles: A Step-by-Step Guide

The adjustment process generally involves the following three core dimensions, depending on the type of nozzle you are using (e.g., stainless steel adjustable nozzles, plastic fan nozzles, or high-pressure water gun nozzles).

1. Rotary Adjustment of Spray Pattern

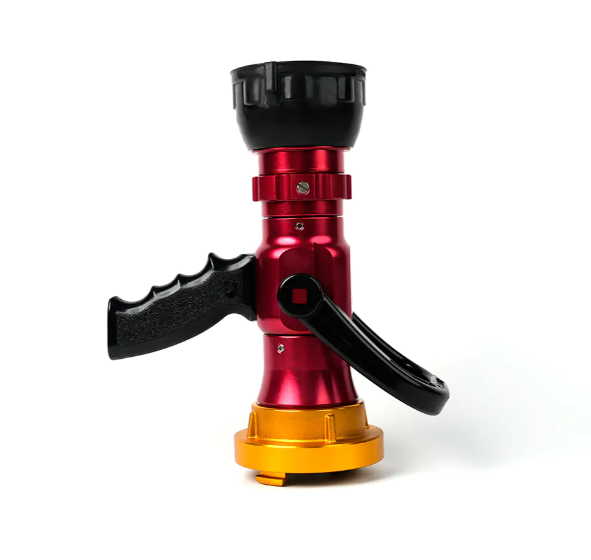

Most handheld or industrial adjustable nozzles are equipped with a rotary head.

• Clockwise rotation: Generally tightens the nozzle orifice, concentrating the jet and creating a high-pressure, direct stream, suitable for long-distance rinsing or removing stubborn stains.


• Counterclockwise rotation: Opens the nozzle orifice, allowing water to flow through internal guide vanes, forming a fan-shaped or cone-shaped mist, suitable for cleaning large areas or fragile surfaces.


2. Pressure and Flow Matching

The performance of an adjustable nozzle is closely related to the pump pressure.

• If the pressure is too high, unwanted drift may occur when adjusting to fine mist mode.
• If the pressure is insufficient, the fan-shaped spray may not fully expand, creating a "striped effect."



Fine-tuning with a pressure gauge is recommended to achieve the rated operating parameters.

3. Universal Joint Ball Head Direction Locking

Some high-end industrial adjustable nozzles (such as ball-type adjustable nozzles) allow 360-degree adjustment of the spray direction.

1. Loosen the locking nut.
2. Adjust the nozzle to the desired pointing angle.
3. Retighten to ensure it does not shift under vibration.



Maintenance and Troubleshooting: Ensure Even Spray

If you find the adjustable nozzle unresponsive or the spray pattern distorted, it is usually caused by the following:

• Clogged by Impurities: Even tiny grains of sand can disrupt the spray pattern. Disassemble the nozzle regularly and clean it with a soft brush.


• Severe Wear: Prolonged spraying of abrasive liquids can cause the nozzle orifice to enlarge, rendering the adjustment function ineffective. Replace with a high-quality stainless steel nozzle immediately.


• Aging O-rings: Damaged O-rings at the adjusting threads can cause leaks, affecting spray pressure.



Mastering how to adjust adjustable nozzles can significantly improve work efficiency and effectively save water and chemical usage. When selecting products, it is recommended to choose adjustable nozzles with reliable materials and precise design based on specific chemical compatibility and pressure requirements.
