What are the differences between smooth nozzles and Straight Stream Nozzle?

In firefighting, industrial cleaning, and irrigation, the choice of nozzle often determines the efficiency and final result of the work.

I. Core Definitions and Structural Differences

While both aim to produce a compact water flow, their internal structures determine the physical characteristics of the water flow:

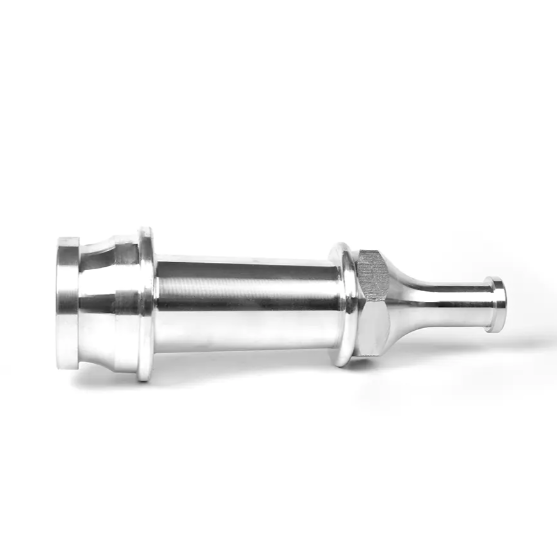

Smooth Nozzles

Typically conical in shape with extremely smooth inner walls. Their purpose is to efficiently convert pressure energy into kinetic energy by reducing internal friction, thereby creating a solid cylindrical water curtain.

Straight Stream Nozzle

This is a broader category, referring to all nozzles designed to produce a non-atomized, highly concentrated water flow. In firefighting, it specifically refers to devices that can form a direct water flow. The core design principle of these nozzles is to maintain the integrity of the water flow and reduce dispersion caused by air resistance.

II. Key Advantages of Straight Stream Nozzle

In many high-pressure operating environments, Straight Stream Nozzle are an irreplaceable choice. Their main characteristics include:

• Stronger Penetration: Because the water flow from a direct-fire nozzle is less affected by air resistance, the water droplets are densely distributed, giving it excellent penetration capabilities. This power is crucial for extinguishing deep fires or conducting high-intensity industrial flushing.


• Further Range: Compared to atomizing nozzles, Straight Stream Nozzle can deliver water over greater distances. At the fire scene, this means firefighters can accurately strike the fire from a safe distance.


• High Water Strike Efficiency: Due to the high momentum of the water flow, Straight Stream Nozzle generate tremendous impact force upon contact with surfaces, making them ideal for removing stubborn dirt or performing breaching operations.



III. Comparison of Characteristics between Smooth Nozzles and Straight Stream Nozzle

Water Flow Shape and Structure

Smooth nozzles, through their extremely smooth, conical constriction design, are designed to produce a perfectly cylindrical, solid jet of water. Straight Stream Nozzle, on the other hand, focus more on maintaining the concentration of the water flow. Although similar in appearance, their core design ensures that the water flow remains densely packed even after traveling a long distance.

Core Applications and Operational Focus

Smooth nozzles are typically used where maximum flow rate and low reaction force are required, making them ideal for many interior firefighting missions. In contrast, Straight Stream Nozzle are more suited for precision strikes and deep penetration, effectively breaking through surface obstacles or reaching deep into the fire.

Heat Absorption Efficiency

Due to the relatively small water flow contact area produced by both types of nozzles (compared to atomizing nozzles), their heat absorption capacity is generally lower. However, under the same pressure, Straight Stream Nozzle, due to their more compact water flow, can more effectively remove core heat when dealing with specific high-temperature points than ordinary water flow.

Typical Application Scenarios

Smooth nozzles are often used for interior attack in large-scale building fires and in situations requiring high-flow-rate water supply. Straight Stream Nozzle, on the other hand, are the absolute mainstay in long-distance firefighting, industrial high-pressure cutting, and powerful decontamination operations.

IV. How to Choose the Right Nozzle for You?

The choice of nozzle depends on your core needs:

• If you need to minimize water loss and achieve extremely high range, Straight Stream Nozzle are the preferred choice.


• If you are looking for a tool with less reaction force and a more stable flow rate, smooth nozzles perform better.



Understanding the difference between smooth nozzles and Straight Stream Nozzle helps in making more informed choices for different work environments. Whether in a fire scene protecting lives or in an industrial workshop prioritizing efficiency, the correct nozzle configuration can achieve twice the result with half the effort.
