Storz - Multi-Tooth
Home / Product / Adapters / Storz - Multi-Tooth

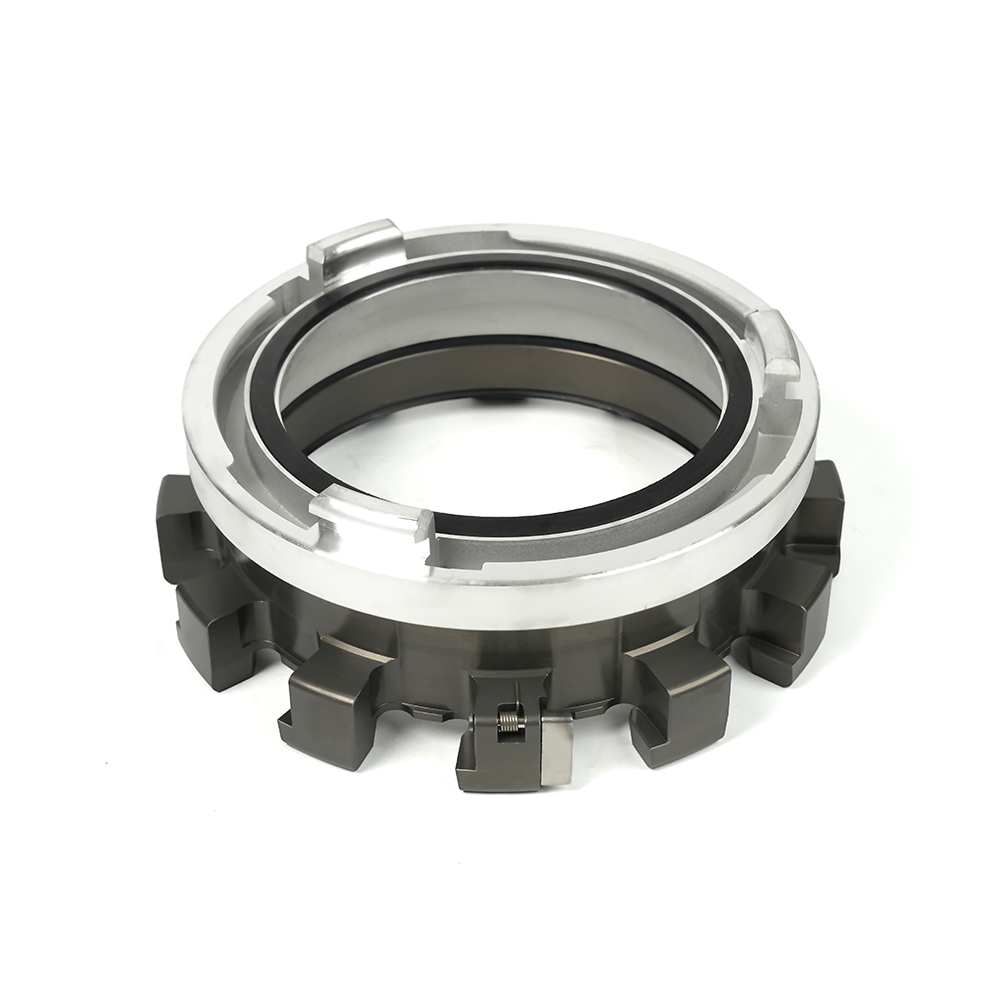

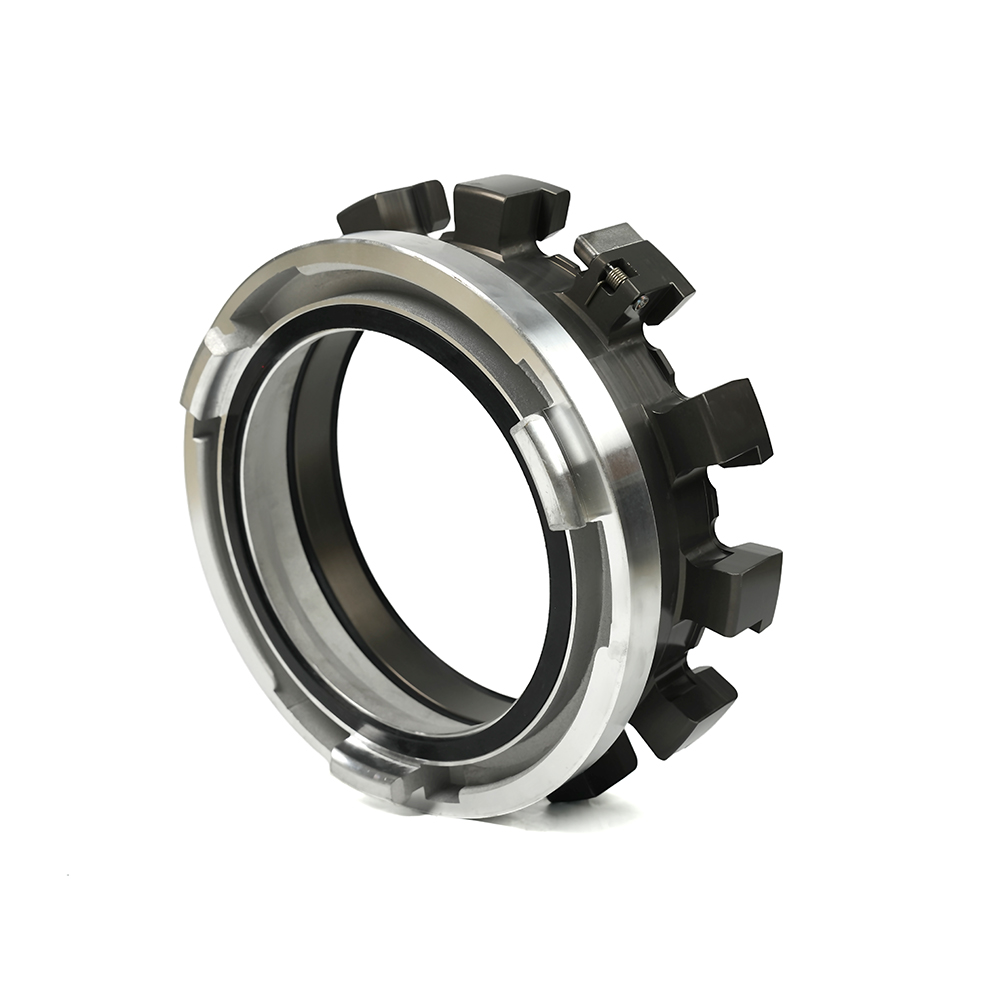

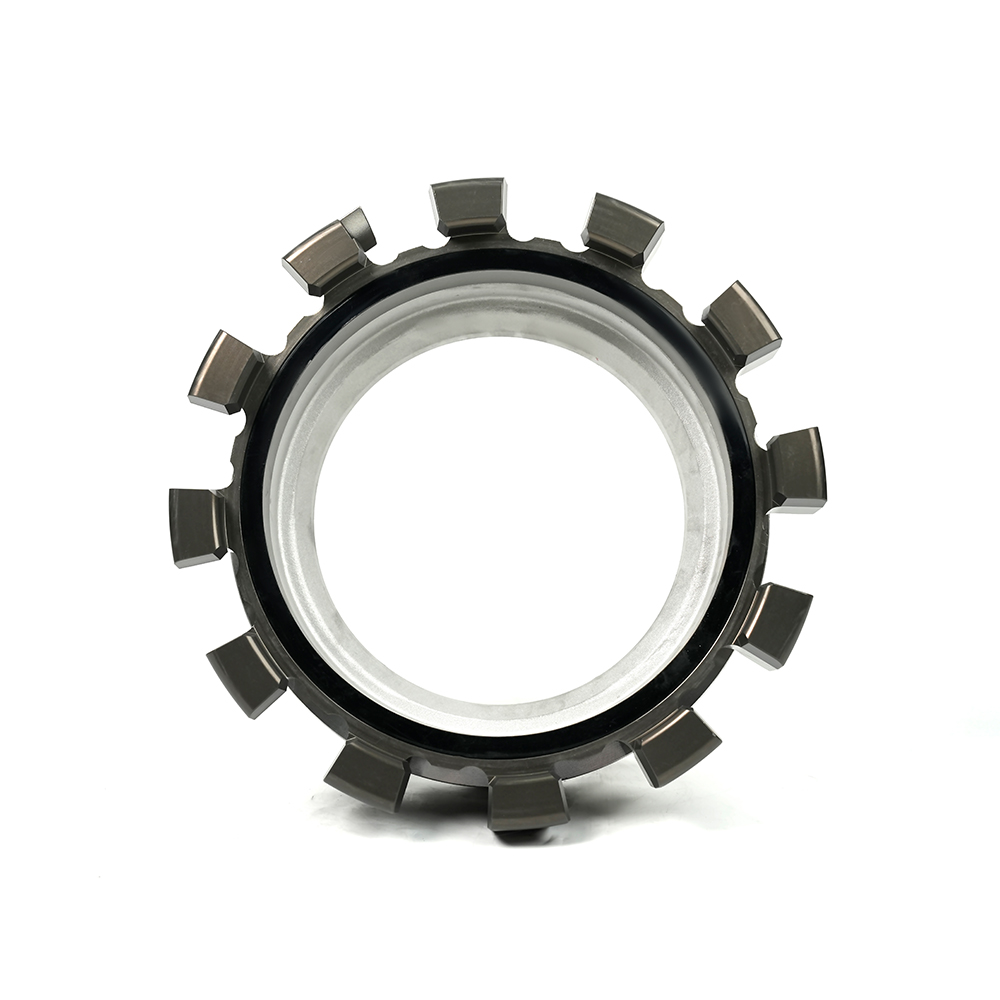

Storz - Multi-Tooth

Adapter couplings are used to connect or convert between different standards and types of fittings. They allow otherwise incompatible interfaces to be connected to each other seamlessly.

Adapter couplings include, but are not limited to: German to Storz (male/female), German to Forestry, German to German Self-locking, German to Flange, German to Multi-tooth, Storz male to Storz female, Storz to Forestry, etc.
All types of adapter couplings can be customized upon request.

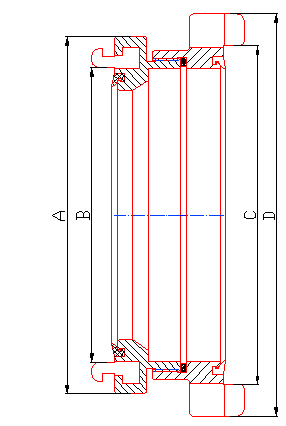

Dimensions Resources
ITEM NO. DIN/mm DIA A/mm B/mm C/mm D/mm
/ 150/200 6 teeth 6"/8" 215 160 219 279
150/200 8 teeth 6"/8" 215 160 225 280
150/250 10 teeth 6"/10" 215 160 266 326
150/250 12 teeth 6"/10" 215 160 270 317
150/300 12 teeth 6"/12" 215 160 320 380
150/350 14 teeth 6"/14" 215 160 389 442
150/400 14 teeth 6"/16" 215 160 441 501
200/200 6 teeth 8"/8" 280 220 219 279
200/200 8 teeth 8"/8" 280 220 225 280
200/250 10 teeth 8"/10" 280 220 266 326
200/250 12 teeth 8"/10" 280 220 270 317
200/300 12 teeth 8"/12" 280 220 320 380
200/350 14 teeth 8"/14" 280 220 389 442
200/400 14 teeth 8"/16" 280 220 441 501
250/200 6 teeth 10"/8" 339 278 219 279
250/200 8 teeth 10"/8" 339 278 225 280
250/250 10 teeth 10"/10" 339 278 266 326
250/250 12 teeth 10"/10" 339 278 270 317
250/300 12 teeth 10"/12" 339 278 320 380
250/350 14 teeth 10"/14" 339 278 389 442
250/400 14 teeth 10"/16" 339 278 441 501
300/200 6 teeth 12"/8" 384 316 219 279
300/200 8 teeth 12"/8" 384 316 225 280
300/250 10 teeth 12"/10" 384 316 266 326
300/250 12 teeth 12"/10" 384 316 270 317
300/300 12 teeth 12"/12" 384 316 320 380
300/350 14 teeth 12"/14" 384 316 389 442
300/400 14 teeth 12"/16" 384 316 441 501

* Materials and manufacturing processes can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
