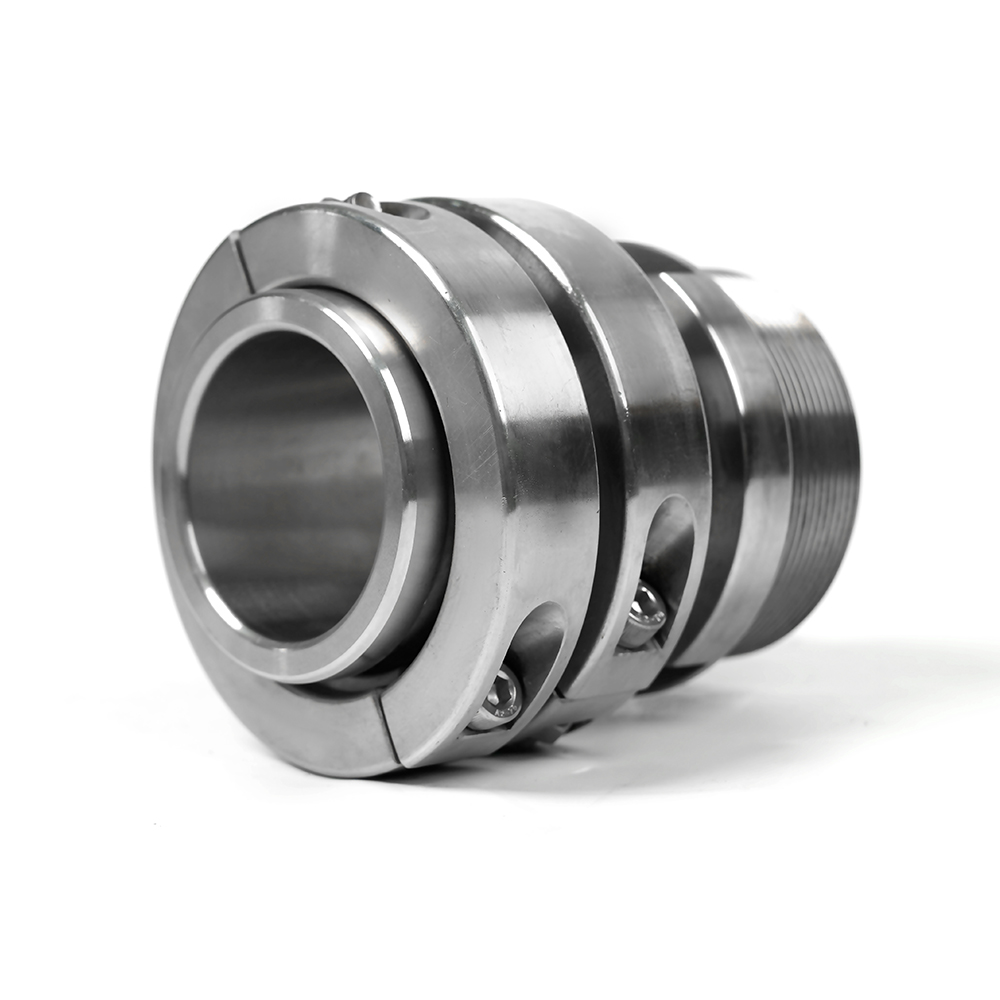

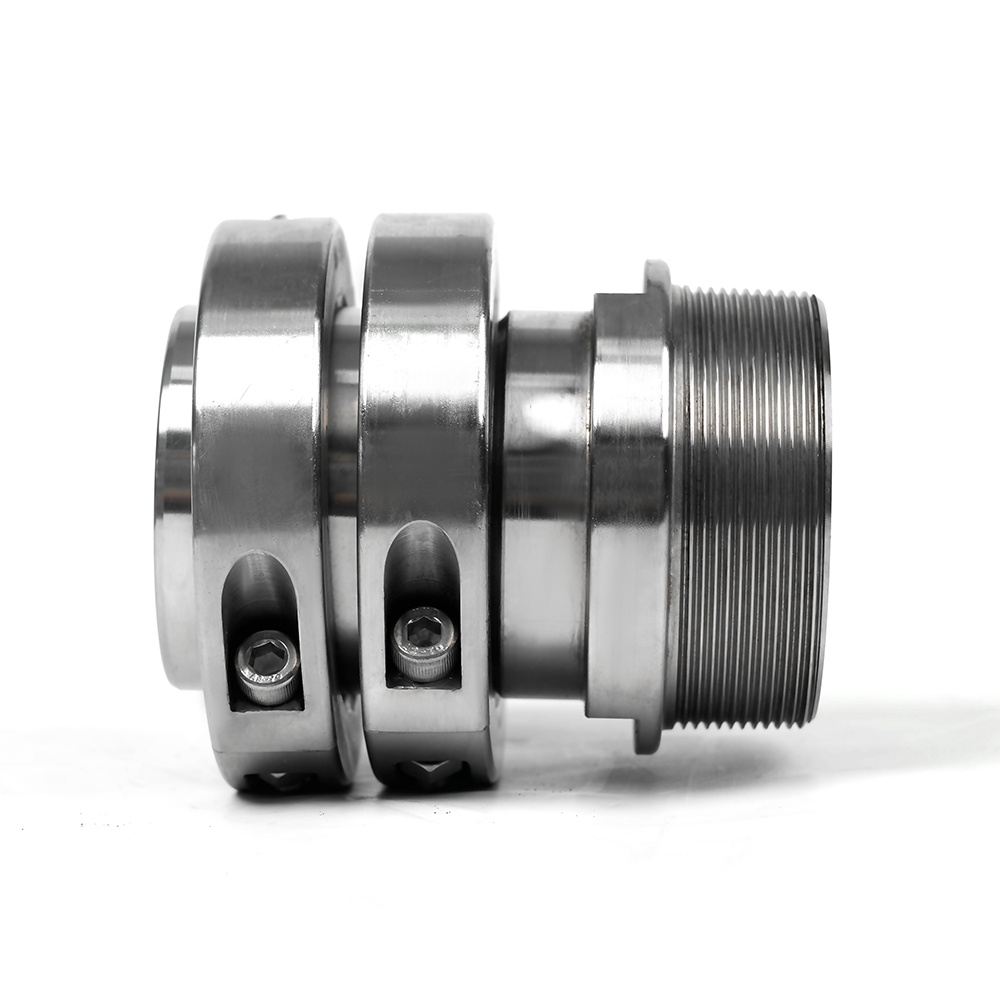

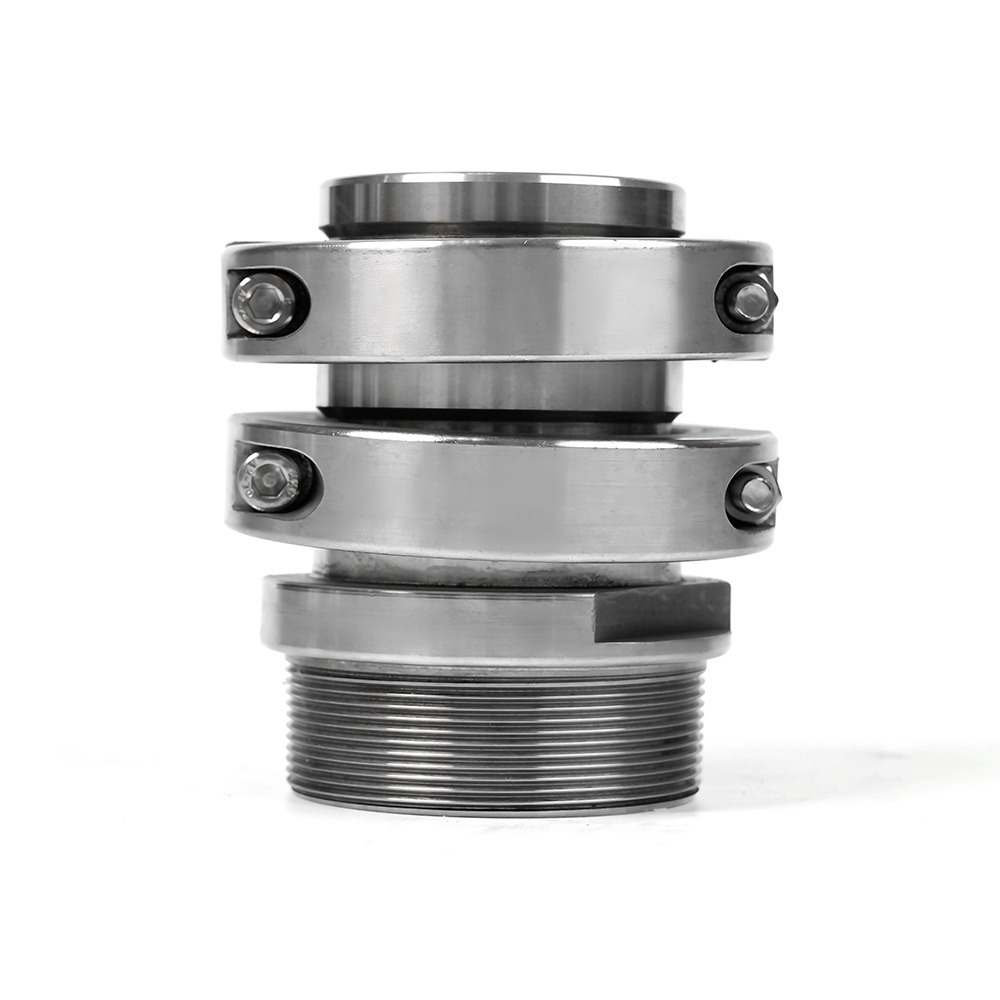

The threaded mining coupling connects to a hose on one end using a hose clamp, while the other end connects to mine equipment through a threaded mechanism.

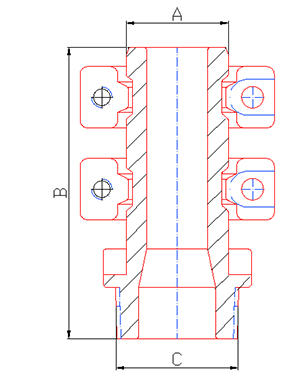

ITEM NO. |
DIN/mm |
DIA |
A/mm |
B/mm |
C/mm |
/ |
32 |
1.25" |
33 |
114 |
1.25"BSPT |
40 |
1.5" |
40 |
114 |
1.5"BSPT |
|
50 |
2" |
52.5 |
118 |
2"BSPT |
|
65 |
2.5" |
66.5 |
124 |
2.5"BSPT |
|
80 |
3" |
77 |
127 |
3"BSPT |
|
100 |
4" |
104.5 |
79 |
4"BSPT |
|
125 |
5" |
125.5 |
184 |
5"BSPT |
|
150 |
6" |
152 |
184 |
6"BSPT |
|
200 |
8" |
203 |
197 |
8"BSPT |
* Materials and manufacturing processes can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
