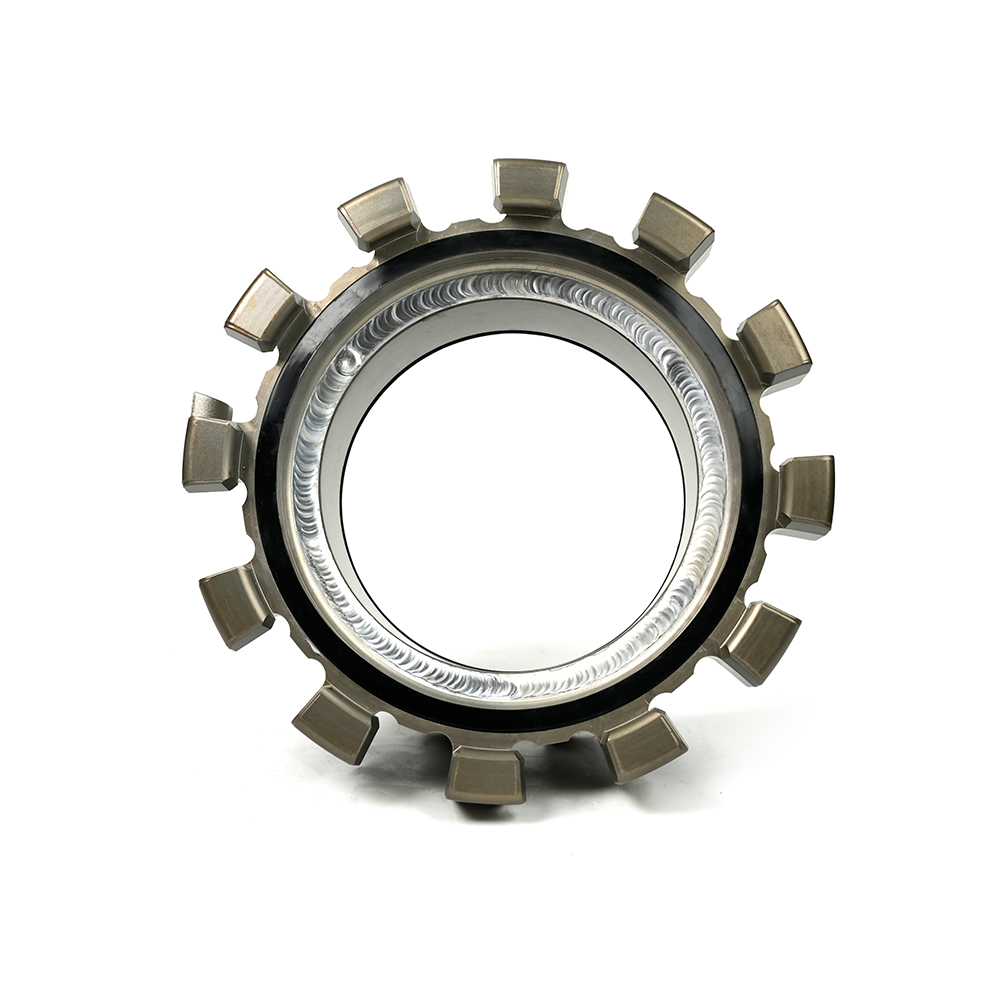

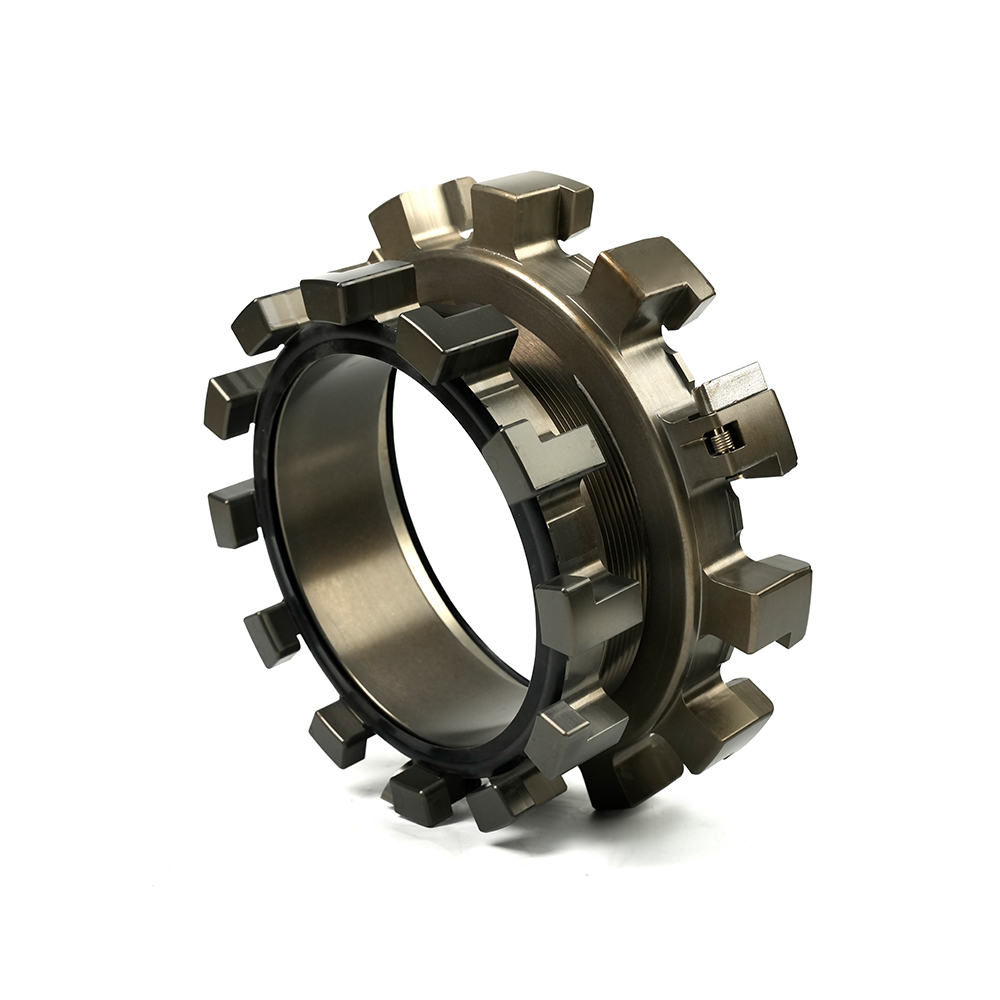

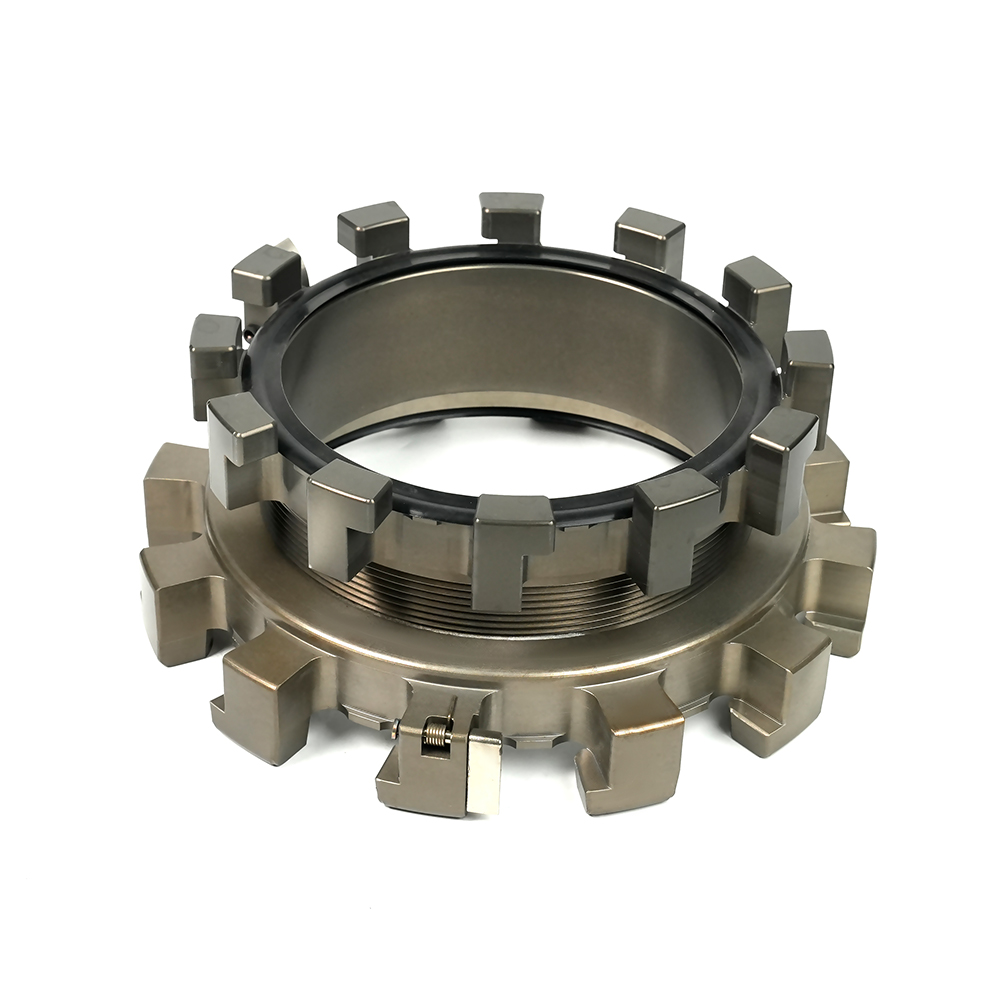

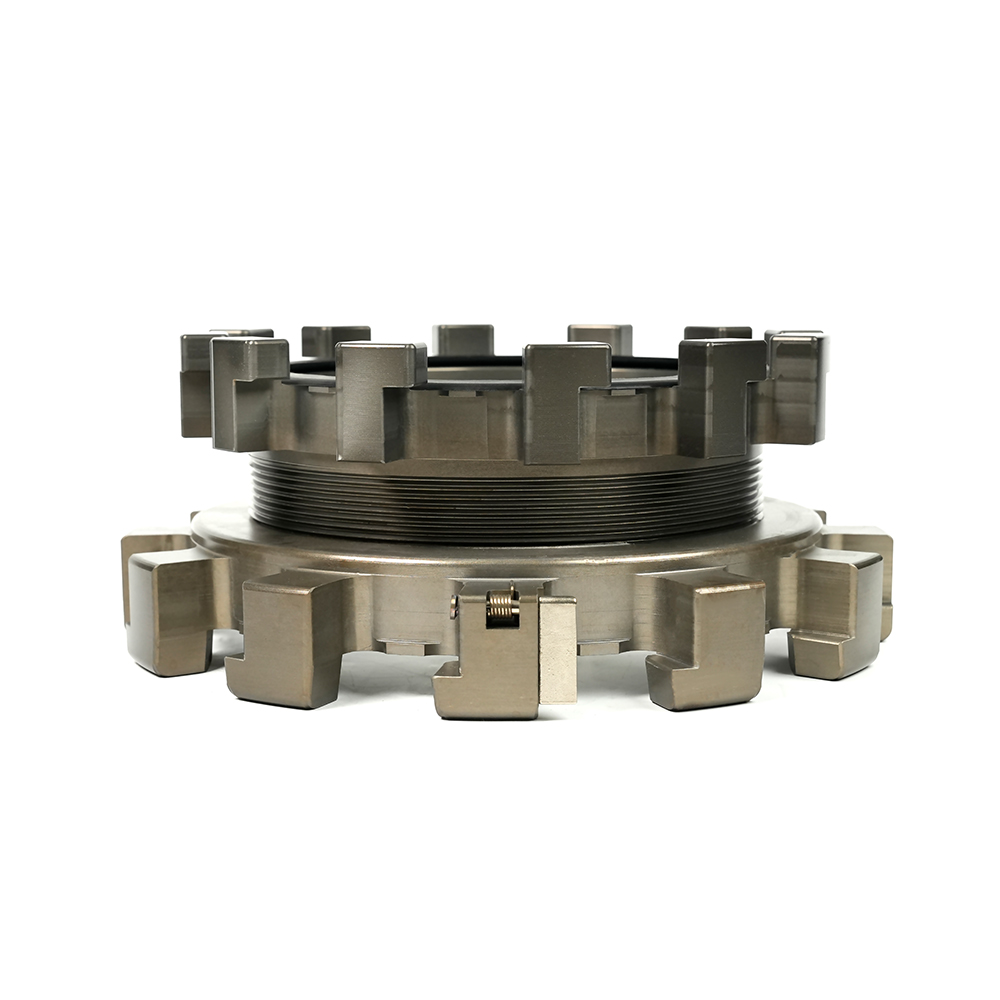

The multi-tooth reducer belongs to the the multi-tooth coupling series, with two ends featuring different sizes multi-tooth couplings.
This coupling is used to connect fire hoses of different sizes or between fire hoses of different sizes and fire equipment (such as fire pumps, fire hoses, and fire hydrants).
The dimensions of the two ends can be customized according to requirements.

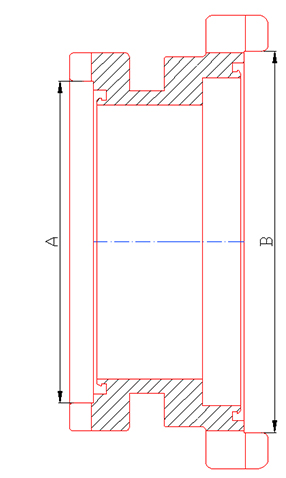

ITEM NO. |
DIN/mm |
DIA |
A/mm |
B/mm |
/ |
200 6-tooth/250 10 teeth |
8"/10" |
219 |
266 |
200 6-tooth/250 12-tooth |
8"/10" |
219 |
270 |
|
200 6-tooth/300 |
8"/12" |
219 |
320 |
|
200 6-tooth/350 |
8"/14" |
219 |
389 |
|
200 6-tooth/400 |
8"/16" |
219 |
441 |
|
200 8-tooth/250 10 teeth |
8"/10" |
225 |
266 |
|
200 8-tooth/250 12-tooth |
8"/10" |
225 |
270 |
|
200 8-tooth/300 |
8"/12" |
225 |
320 |
|
200 8-tooth/350 |
8"/14" |
225 |
389 |
|
200 8-tooth/400 |
8"/16" |
225 |
441 |
|
200 6-tooth/200 8-tooth |
8"/8" |
219 |
225 |
|
250 10 teeth/250 12-tooth |
10"/10" |
266 |
270 |
|
250 10 teeth/300 |
10"/12" |
266 |
320 |
|
250 10 teeth/350 |
10"/14" |
266 |
389 |
|
250 10 teeth/400 |
10"/16" |
266 |
441 |
|
250 12-tooth/300 |
10"/12" |
270 |
320 |
|
250 12-tooth/350 |
10"/14" |
270 |
389 |
|
250 12-tooth/400 |
10"/16" |
270 |
441 |
|
300/350 |
12"/14" |
320 |
389 |
|
300/400 |
12"/16" |
320 |
441 |
|
350/400 |
14"/16" |
389 |
441 |
* Materials and manufacturing processes can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
