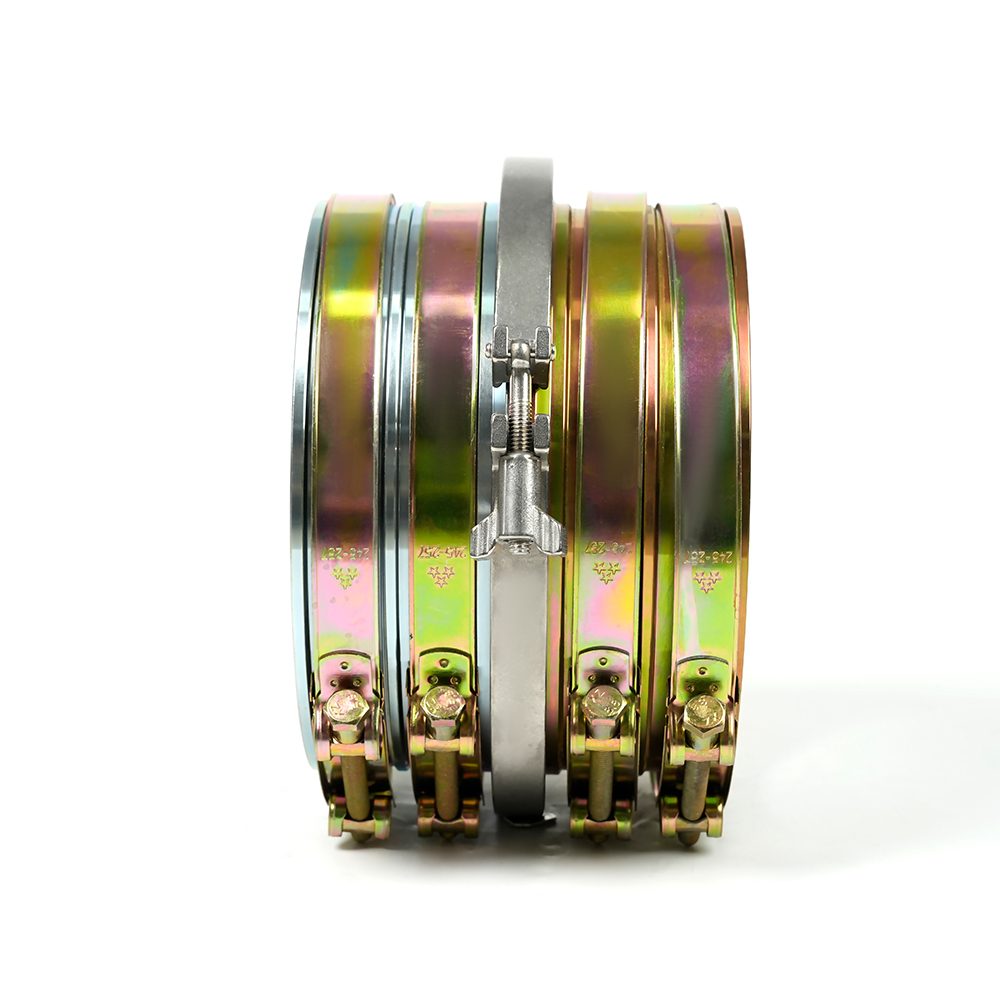

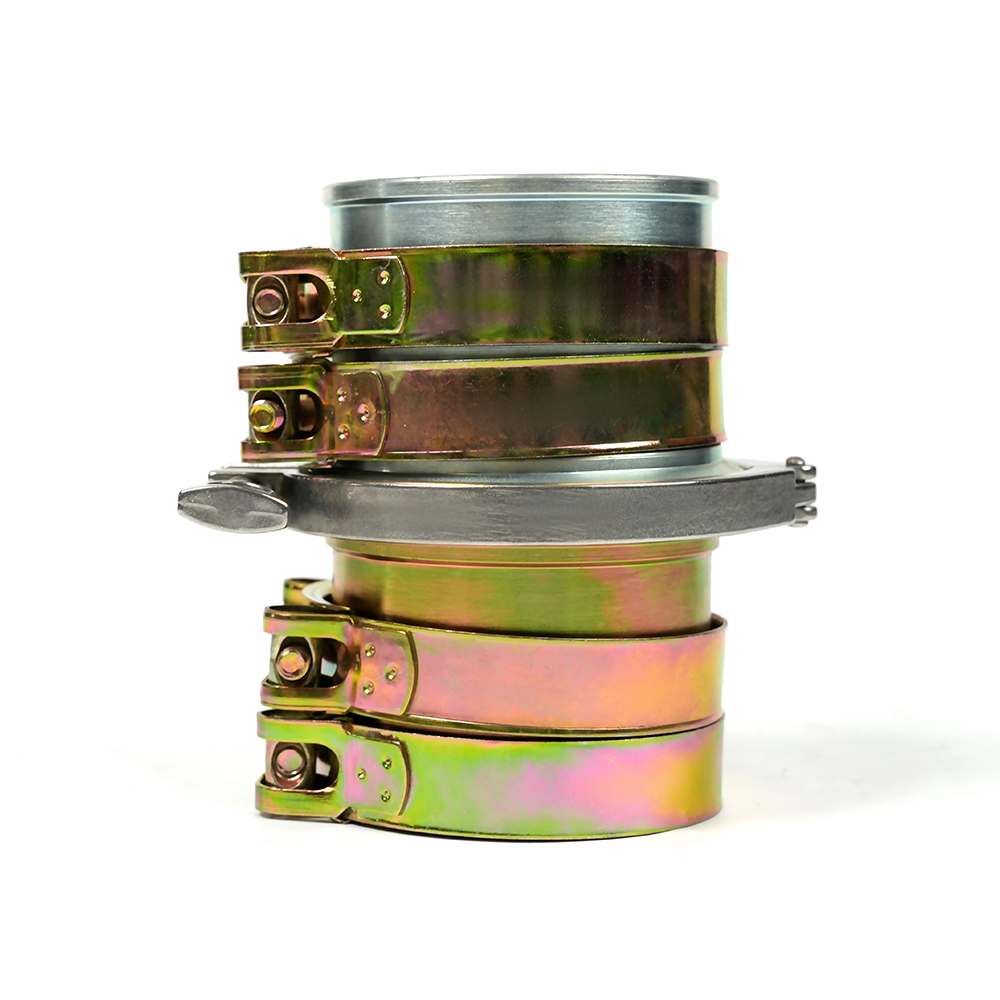

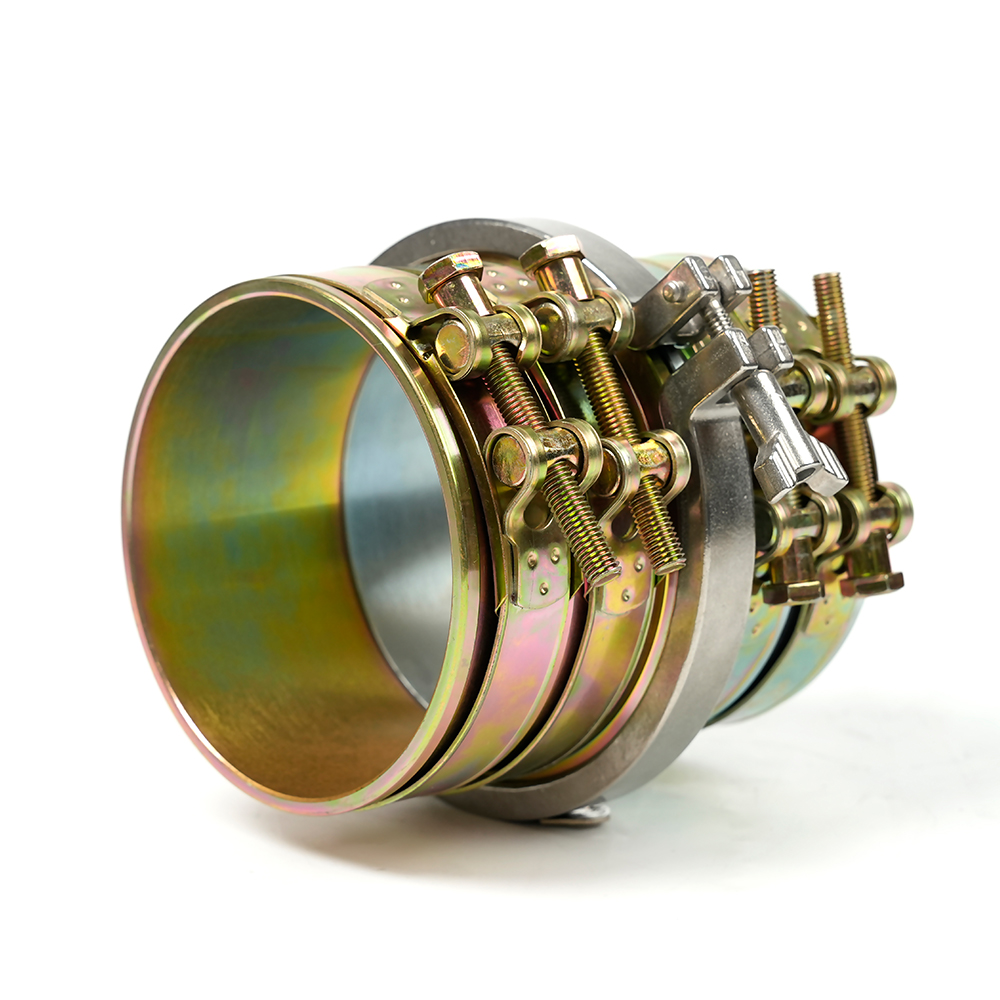

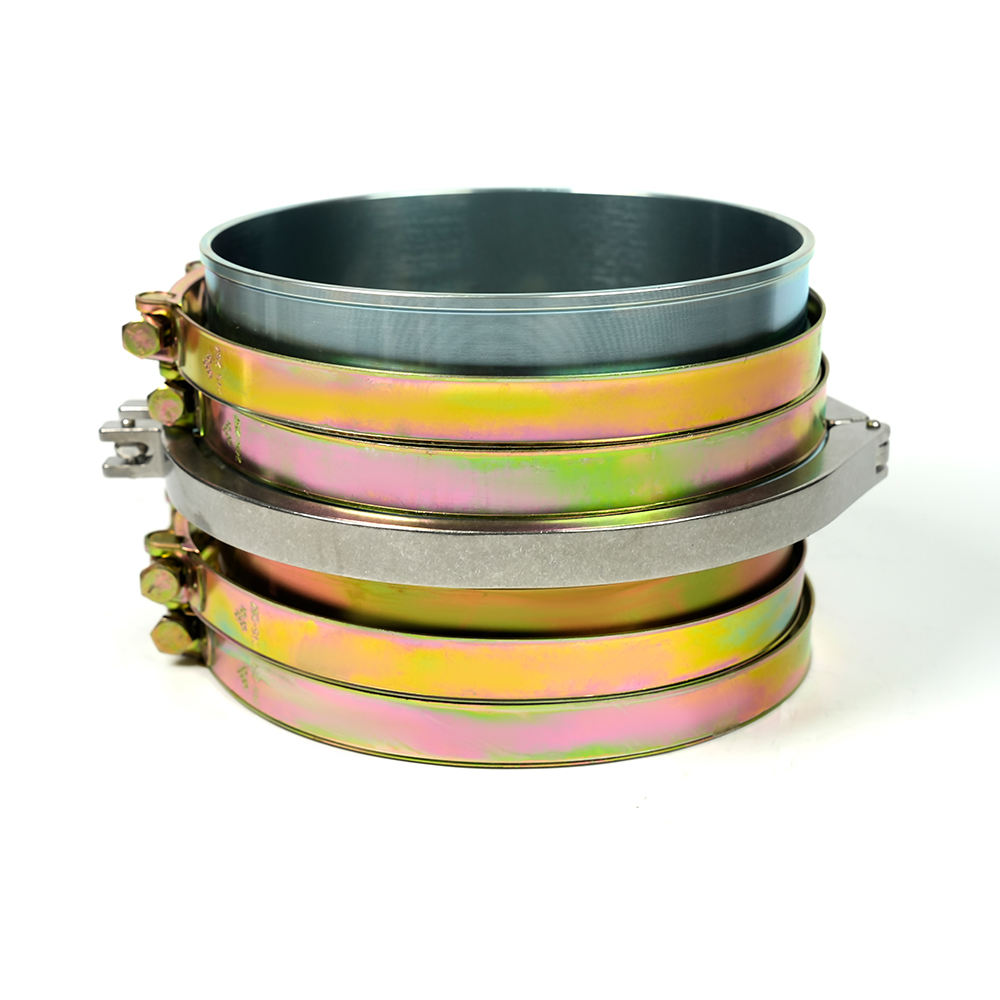

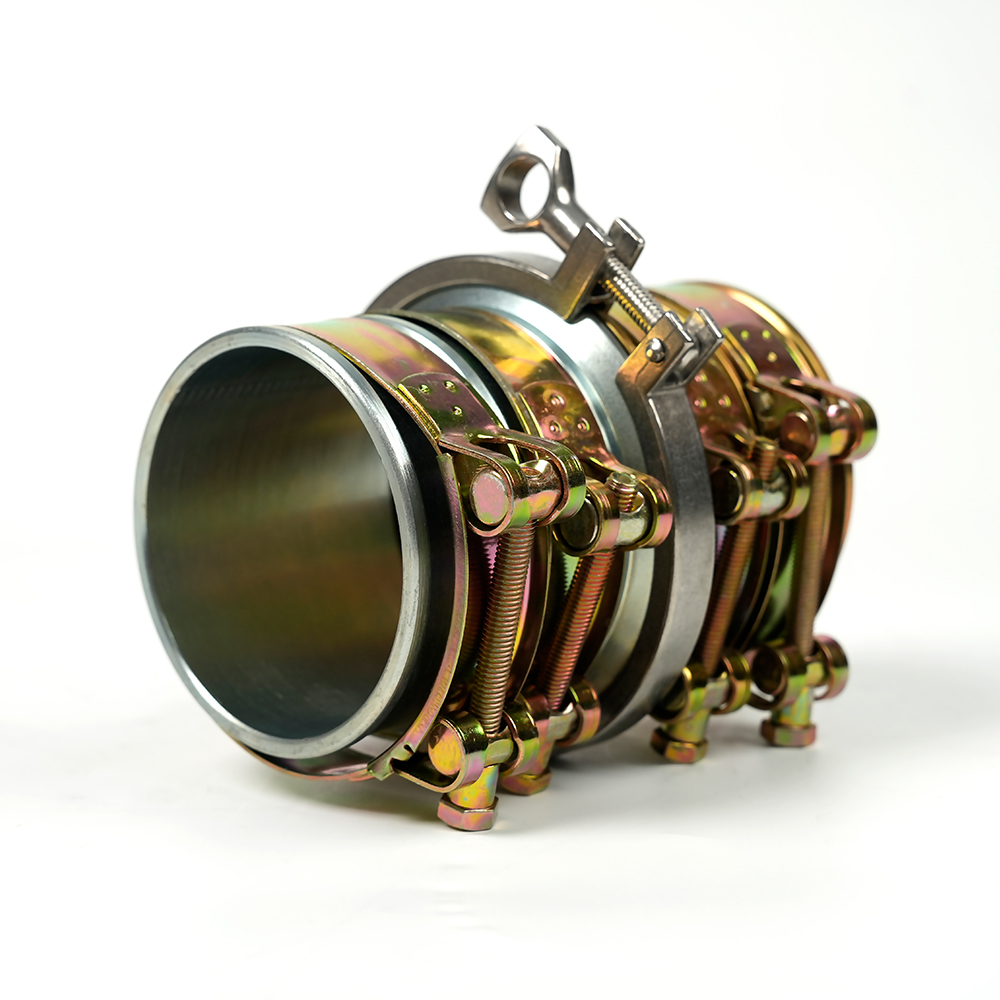

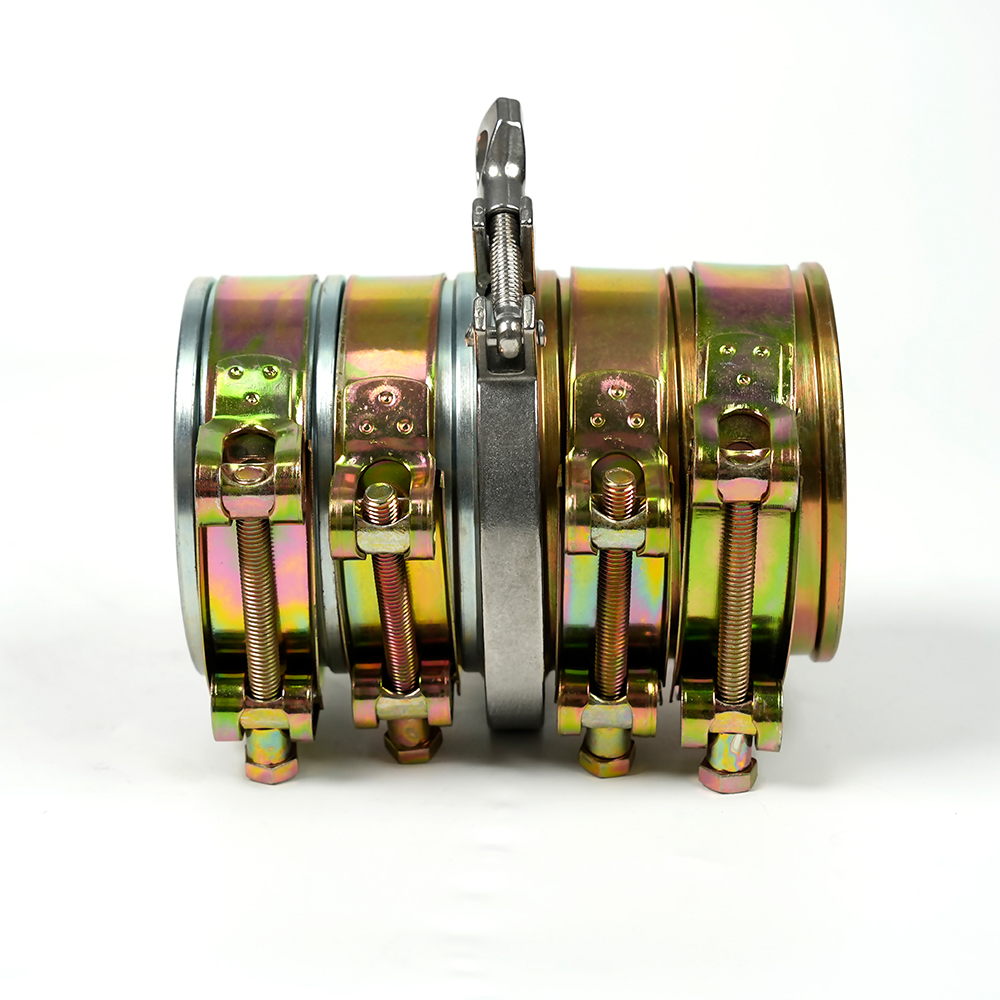

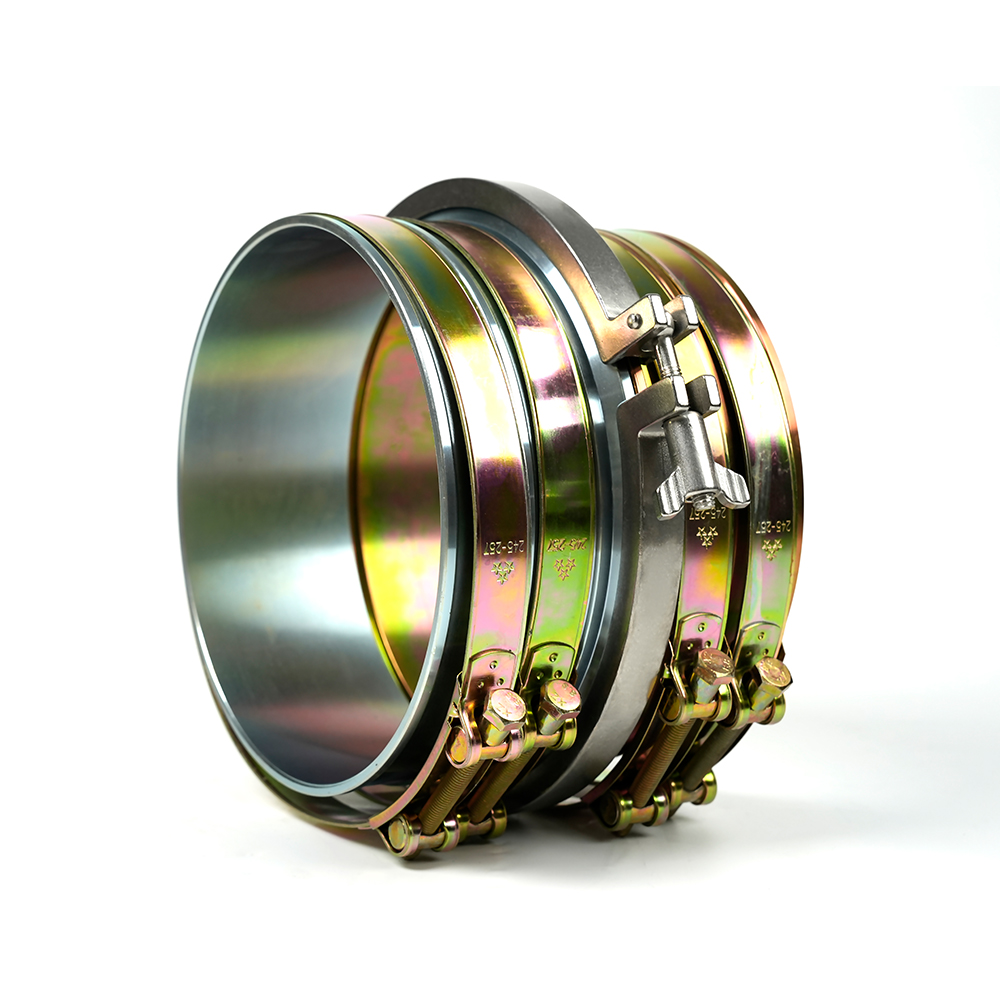

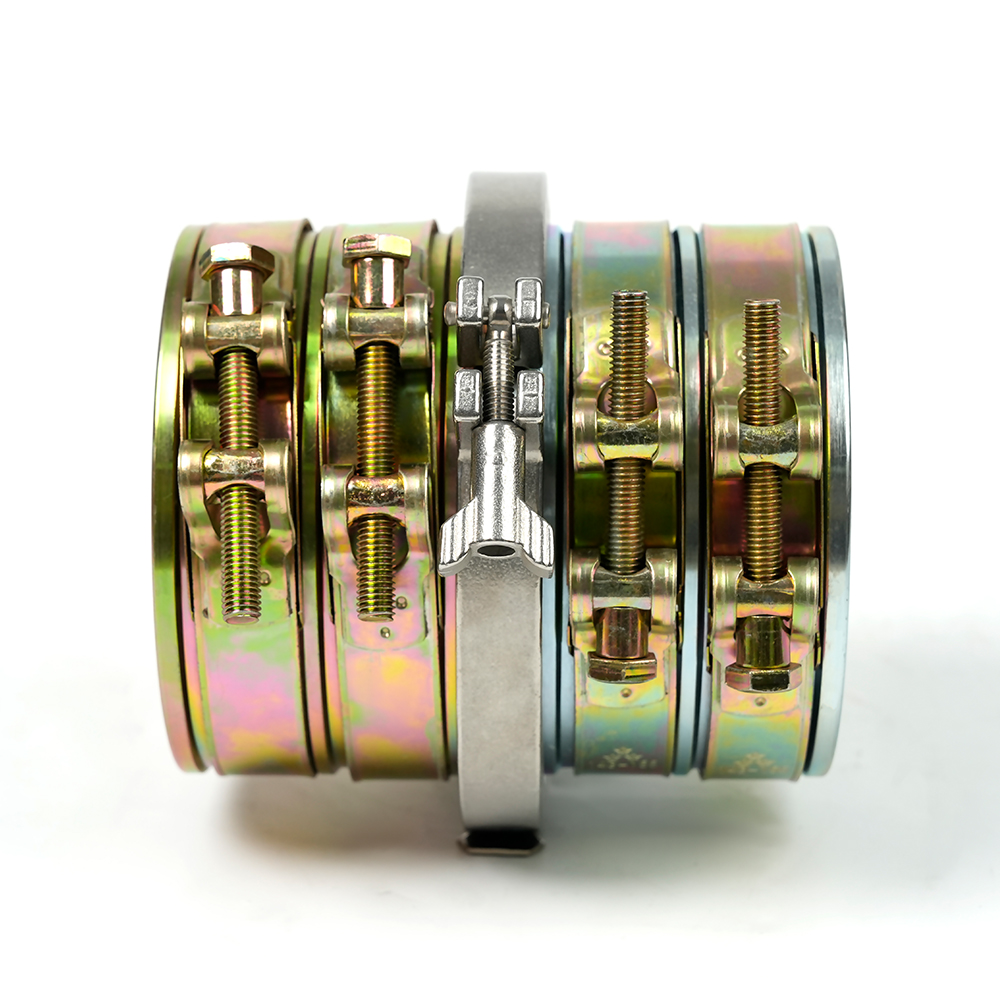

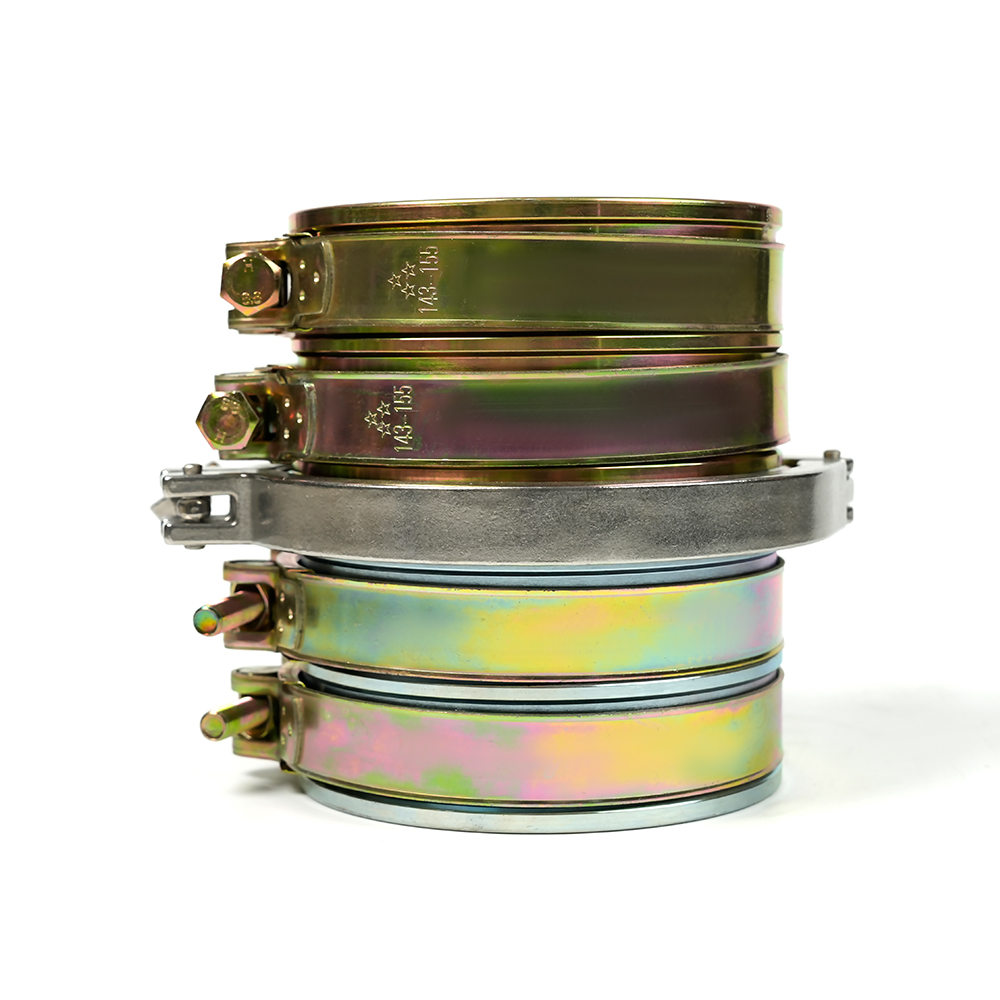

The Sanitary Drainage Hose Coupling is a connection interface specifically designed for drainage and flood control systems. It ensures a stable connection of drainage pipes by using clamps to guarantee sealing and tightness, preventing water leakage.
When connecting to a hose, the hose is placed over the coupling, and the clamp bolts are manually tigh10ed. Even pressure is applied to ensure a proper seal, securing the connection for effective drainage.

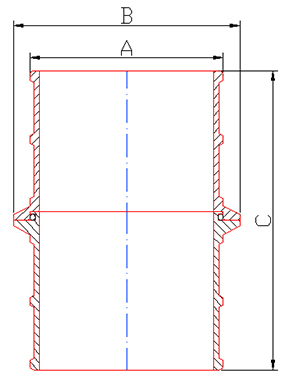

ITEM NO. |
DIN/mm |
DIA |
A/mm |
B/mm |
C/mm |
/ |
100 |
4" |
101.5 |
119 |
157 |
150 |
6" |
150 |
167 |
172 |
|
200 |
8" |
203 |
217 |
177 |
|
250 |
10" |
249 |
268 |
177 |
|
250 |
10" |
253 |
268 |
177 |
|
300 |
12" |
299 |
319 |
175 |
|
300 |
12" |
303 |
319 |
175 |
* Materials and manufacturing processes can be customized upon request.
* Other requirements (such as working pressure, burst pressure, etc.) can also be customized as needed.
